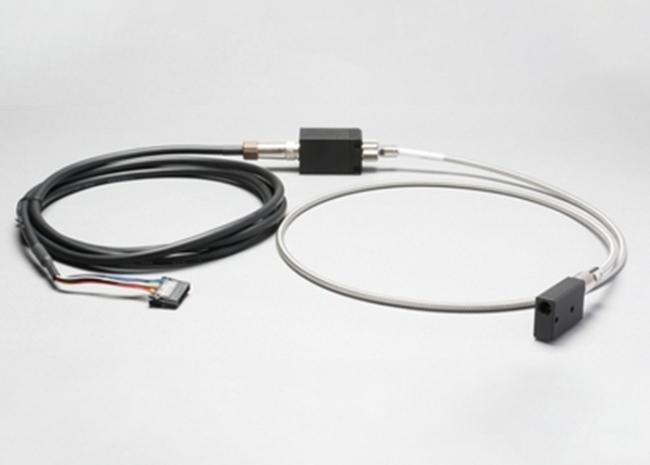

Infrared Radioactive Thermometer 600℃-2000℃ 0.8um-1.0um Fiber Thermometer

FTKX-TNE Series -Infrared Radioactive Thermometer

   The infrared thermometer imported from Japan [FTKX-TNE0180] is the fastest radiation thermometer in the world, with a response time of 1 millisecond (0.001 seconds). The FTK series can detect rapid changes in temperature. The sensor probe will never miss sudden temperature changes. It is easy to place. This series of products uses optical coaxial LED sights, which can accurately measure the target. The heat resistance temperature of the sensor head and optical cable is up to 150℃, and it is not affected by noise.

This is a schematic diagram. The detection head of this specification is round

Model: FTKX-ANE0600-0300R210-000
Measurement temperature range:  600-2,000℃
Measurement wavelength:  0.8-1.0μm
Measurement distance:  300mm
Size of the object under test: Ø 3.5mm (This is a schematic diagram. The detection head of this specification is round.)
Optical fiber size: Ø 0.2mm, length 10M, SUS serpentine
Connection line length: 2M
Detection head size: Ø 6mm round
Alignment device: Green LED alignment
Accuracy: ±4℃ below 800℃
800-1200℃ : ±0.5% of the measured value
1200-2000℃ : ±1.0% of the measured value
The time required to warm up the machine: 1 minute
Response time: 0.001 to 5 seconds (0 to 95% analog output)
Radiation rate correction: 0.3-1.0, setting range: 0.050-1.000
Output mode: 0 ~ 1V, mV/℃, 4 ~ 20mA, 0 ~ 20mA switching
Ambient temperature for use: 0 to 150℃ for the detection head and optical fiber, and 0 to 50℃ for the rest of the converter area
Power supply voltage: DC4.7-27V, 0.1 Amax
