Split Type Negative Ion Tester ONETEST Atmospheric Negative Ion Monitor ONETEST-505

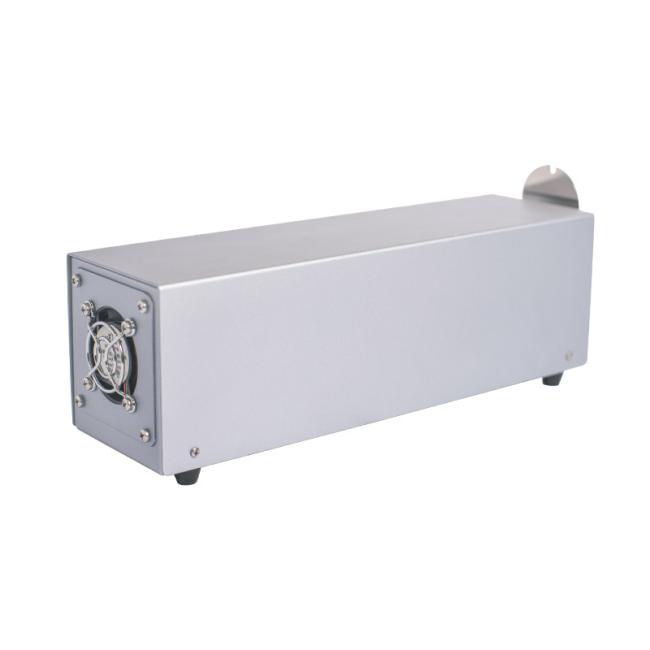

Split-type Negative Ion Tester-ONETEST-505
1. Product profile
ONETEST-505 precision anion recorder in accordance with the Japanese JIS air ion density determination pointer draft coaxial binary cylinder manufacturing design, at the same time in order to solve the outdoor complex environment interference, we specially developed a split type to solve this problem, and can use special computer record analysis software record analysis and printing measured data, suitable for outdoor monitoring system integration, forestry, meteorology, ecology, living environment assessment and textile research fields, etc.
2. Product features
1. Have positive and negative ion measurement function; users can switch by themselves
2, independent design of split structure outdoor integration, material research and testing is more convenient
3, high measurement accuracy, sensitive response, strong anti-interference ability;
4, with RS232 data output optional data management platform
5, strong environmental adaptability can fully adapt to the high humidity environment to work
6, with the software remote calibration function, can set the automatic measurement mode
3. Qualification
|
Product color: |
wathet |
||
|
outline dimension: |
25CM * wide 10CM * thick 4.9CM long Sensor: 26.5CM (including protrusion) * 7.1CM * 7.1CM |
||
|
repeat measure: |
Net weight: 0.520kg Net weight: 0.150kg |
||
|
Detection ion: |
Positive ions, anions, temperature, humidity, in the air |
||
|
measuring principle: |
Coaxial binary cylinder type of the Gildine capacitor method |
||
|
measurement range:
resolution ratio: |
anion |
temperature |
humidity |
|
0-5 million per / cm3 |
-20～60℃ |
0-99%RH |
|
|
1 with one per / cm3 |
1℃ |
5%RH |
|
|
mobility: |
0.7c m2/V. S e c Customizable |
||
|
numeric output: |
Serial Communication Output (RS-232) |
||
|
sampling time: |
10 Times / second |
||
|
Measurement display time: |
Three times / second |
||
|
Determination accuracy: |
±5% |
||
|
zero adjustment: |
The software adjusts the system and can remotely adjust the zero |
||
|
apparent show: |
Two rows of 16-bit STN LCD for indication display. Lighting control device with a backlight |
||
|
sensor: |
Using split design, more suitable for a variety of occasions measurement and maintenance |
||
|
memory function: |
It can store 320 million data and download the stored data containing the time and date. |
||
|
Calibration function: |
The instrument can be calibrated using software or remotely |
||
|
soft piece: |
Dedicated upper computer software, real-time drawing curve and calculate the average export data |
||
|
work environment: |
temperature:-20～60℃humidity:0-95%RH(No condensation) |
||
