20ft Double Wings Sloping Roof Expandable Folding House For Family Living
Price:
$11888
MOQ:
1
Delivery Time:
30-45 days
Brand:
FRAMER
Product Description
20ft Double Wings Sloping Roof Expandable Folding House For Family Living
- The 20ft Expandable Folding House adopts a double wing sloping roof design, which improves waterproofing and insulation effects.
- The overall construction is made of high-quality materials, and the steel structure ensures durability and stability.
- The unfolded size is 37m², which is very suitable for a small family or couple to live in.
Features:
- Product Name: Expandable folding house
- Main frame material:Fully galvanized steel structure
- Top of house:EPS color steel+nano insulation board
- Unfolded area:37m²
- Expand size:L5900*W6300*H2480mm
- Internal size:L5640*W6140*H2240mm
- Folding size:L5900*W2200*H2480mm
- Loading quantity:One 40HQ can hold 2 sets

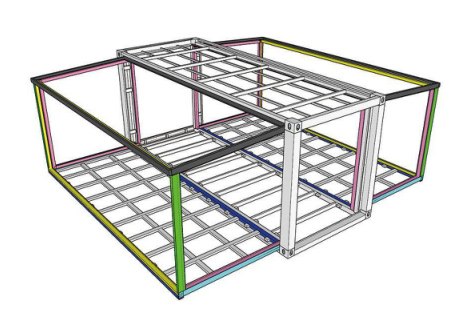

Main structure:
|
Model
|
20ft expandable folding house
|
|
Steel column:
|
Galvanized bent parts 2.5mm thick
|
|
Bottom longitudinalsecondary beam:
|
80*80*3.0mm galvanized square tube
|
| Bottom frame: |
Bottom frame 60*80*2.5mm galvanized square tube
|
| Main ceiling panel+external ceiling: |
Double-layer 50mm thick EPS color steel+nano insulation board |
| Spray paint: |
Electrostatic spraying+anti-corrosion treatment |
| Wall material: |
65mm thick,0.35mm onboth sides,EPS composite board |
| Center floor : |
18mm thick freproof cement fiber floor |
|
Entrance door: |
high-end single opening steel door(Optional) |
Advantages:
