6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center
Price:
Negotiable
MOQ:
1
Delivery Time:
45-60 days
Product Description
GS1812 Gantry Machining Center with 6000/12000 RPM Spindle BT50 Taper and 24-Tool Magazine for Large Workpiece Processing

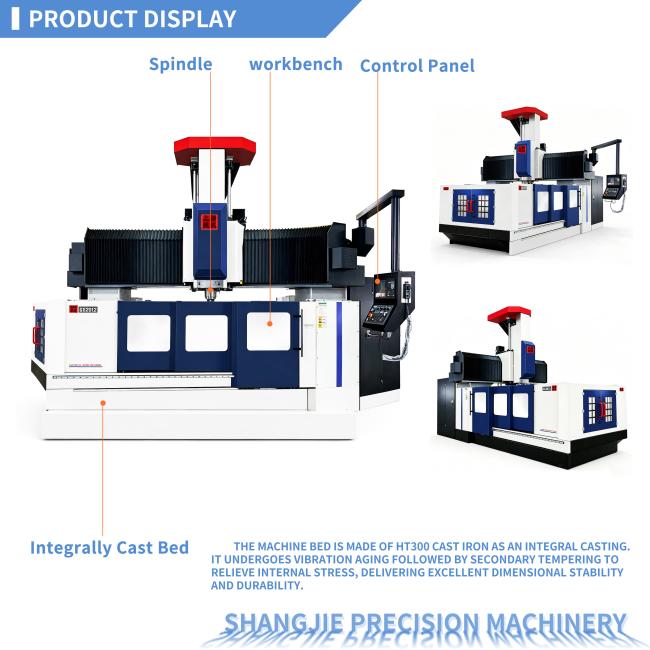

The GS series gantry machining centers feature a robust gantry structure that combines the strong rigidity and stability of traditional gantry machines with the rapid movement capability of vertical machining centers, significantly enhancing processing efficiency for large workpieces.
Machine Structure
Through finite element analysis (FEM), we've optimized the casting reinforcing ribs to achieve optimal bed strength. Special reinforcing structures for the X-axis base and Y-axis crossbeam ensure stability and prevent deformation.
The four-track Z-axis ram design provides exceptional rigidity while eliminating low-speed crawling and long-term precision loss common in traditional hard rail systems.

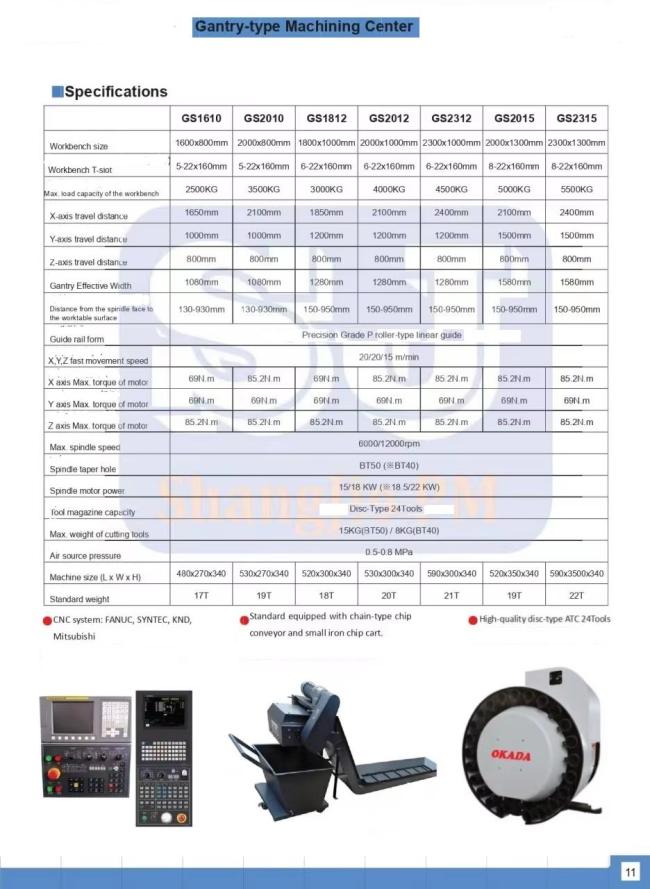

Specifications
| Machine Type | GS1812 |
|---|---|
| Workbench size | 1800*1000 mm |
| Workbench T-slot (number - size * pitch) | 6-22*160 mm |
| Max. load capacity of the workbench | 3000KG |
| X-axis travel distance | 1850mm |
| Y-axis travel distance | 1200mm |
| Z-axis travel distance | 800mm |
| Gantry Effective Width | 1280mm |
| Distance from spindle face to worktable surface | 150-950 mm |
| Guide rail form | Precision Grade P roller-type linear guide |
| X,Y,Z fast movement speed | 20/20/15 m/min |
| X axis Max. torque of motor | 69N.m |
| Y axis Max. torque of motor | 69N.m |
| Z axis Max. torque of motor | 85.2N.m |
| Max. spindle speed | 6000/12000 rpm |
| Spindle taper hole | BT50 (BT40 Optional) |
| Spindle motor power | 15/18 KW (※18.5/22 KW) |
| Tool magazine capacity | Disc-Type 24Tools |
| Max. weight of cutting tools | 8KG(BT40) / 15KG(BT50) |
| Air source pressure | 0.5-0.8 MPa |
| Machine size (L * W * H) | 5200*3000*3400mm |
| Standard weight | 18000KG |

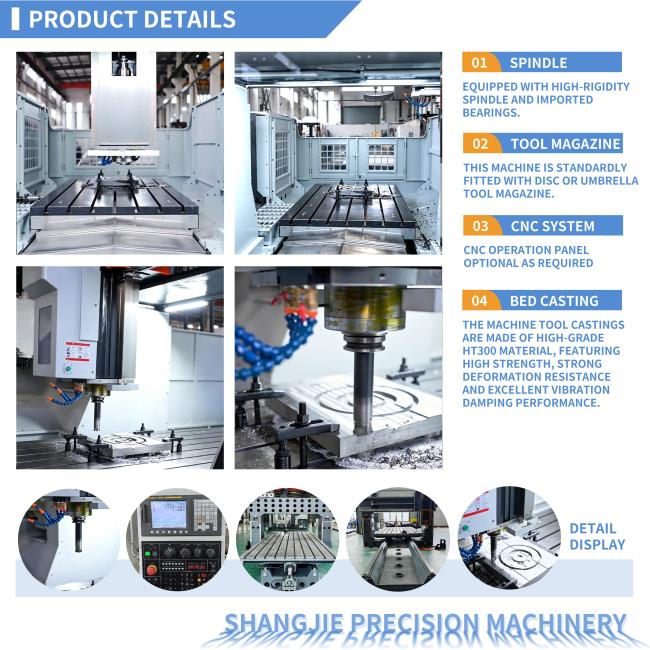

Machine Tool Configuration
|
CNC system
FANUC, SYNTEC, KND, Mitsubishi
  |
High-quality spindle
Imported bearings
 |
Precision linear guides
THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type
 |
Precision ball screws
THK, PMI, HIWIN C3 grade Ø50 precision ground
 |
|
Tool clamping cylinder
 |
Angular contact bearings
NSK, SKF, FAG P4 grade imported
 |
High-rigidity coupling
 |
Synchronous belts
Imported high-torque
 |
|
Tool magazine options
High-quality disc-type/Umbrella-type ATC
  |
Standard accessories
Chain-type chip conveyor and small iron chip cart
 |
||

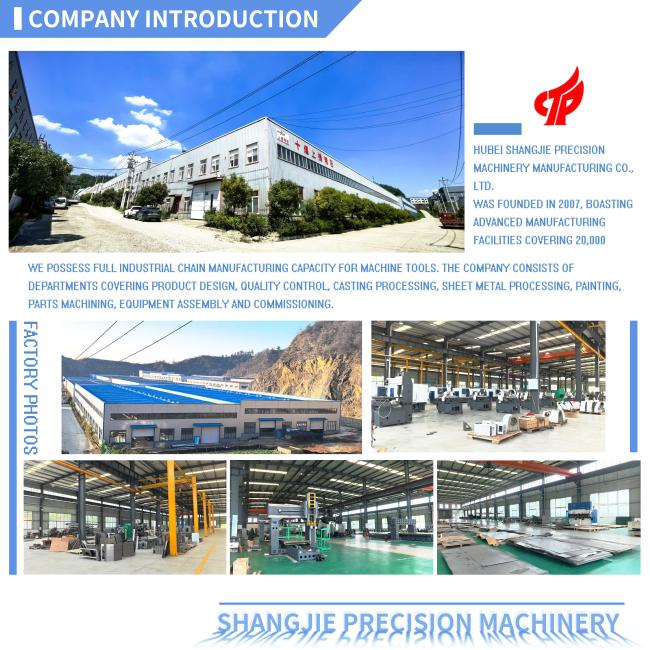

Company Advantages
- Certified quality system with independent design and R&D capabilities
- Equipped with large gantry machining centers, five-axis machining centers, and other advanced equipment
- Dedicated after-sales service team providing convenient and efficient support
Product Advantages
- HT300 high-grade castings with ergonomic design
- Imported functional components ensuring long-term dimensional stability

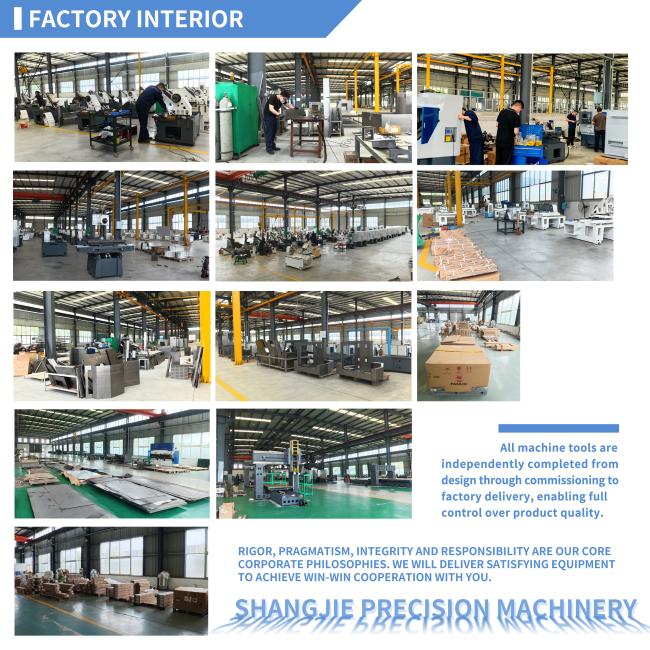

- Complete in-house processes from casting to sheet metal fabrication
- Strict quality control throughout production
Application Scenarios
Ideal for mechanical processing in automotive manufacturing, aerospace, and shipbuilding industries.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: We confirm trading methods (FOB, CIF, CNF) when quoting. For mass production, we typically require 30% advance payment with balance upon bill of lading. Payment methods are primarily T/T, with L/C also acceptable.
Q: Product after-sales service scope and service period
A: We offer a one-year warranty and 24-hour lifetime technical support.
