High Strength Kevlar Aramid Rope 260℃-500℃ Temperature Range Kevlar Cord
Price:
USD 375.00
MOQ:
1 roll 250meters
Delivery Time:
3-5days
Brand:
Vibran
Product Description
5.5×5.5mm Braided Kevlar Aramid Rope for Tamglass Glasston Tempered Glass Machine
High-Strength Kevlar Rope: Specialized for Glass Tempering Furnace Applications
Our Kevlar aramid rope is a high-performance transmission and load-bearing component specifically designed for glass tempering furnaces. Crafted with premium Kevlar aramid fiber as the core material, it integrates exceptional heat resistance, tensile strength, and durability, perfectly adapting to the high-temperature, high-load working environment of glass tempering equipment.
Core Features
- Outstanding High-Temperature Resistance: Withstands continuous operating temperatures up to 260°C and short-term exposure to higher temperatures.
- Superior Tensile Strength: Reinforced with high-strength Kevlar aramid fiber, boasting excellent load-bearing capacity.
- Exceptional Durability & Wear Resistance: Features strong abrasion resistance and fatigue resistance for long-term use.
- Stable Performance & Low Maintenance: Maintains stable dimensional stability in harsh working conditions.
- Corrosion & Chemical Resistance: Resists erosion from common industrial chemicals and moisture.
Product Specifications
- Material: 100% Kevlar aramid fiber
- Operating Temperature Range: -50°C to 260°C (continuous use)
- Diameter Options: Customizable from 2mm to 20mm
- Length: Standard 10m/roll, 50m/roll, 100m/roll (custom lengths available)
- Color: Standard yellow (custom colors acceptable for bulk orders)
- Structure: Braided (8-strand, 12-strand, or customized braiding structure)
Available Sizes
Flat Rope Sizes (Customizable)
| Model | Width (mm) | Thickness (mm) |
|---|---|---|
| 8 x 3 | 8 | 3 |
| 8 x 4 | 8 | 4 |
| 10 x 3 | 10 | 3 |
| 10 x 4 | 10 | 4 |
| 10 x 5 | 10 | 5 |
| 12 x 3 | 12 | 3 |
| 12 x 3.5 | 12 | 3.5 |
| 12 x 4 | 12 | 4 |
| 12 x 4.5 | 12 | 4.5 |
| 12 x 5 | 12 | 5 |
| 12 x 5.5 | 12 | 5.5 |
| 13 x 2 | 13 | 2 |
| 13 x 3 | 13 | 3 |
| 13 x 3.5 | 13 | 3.5 |

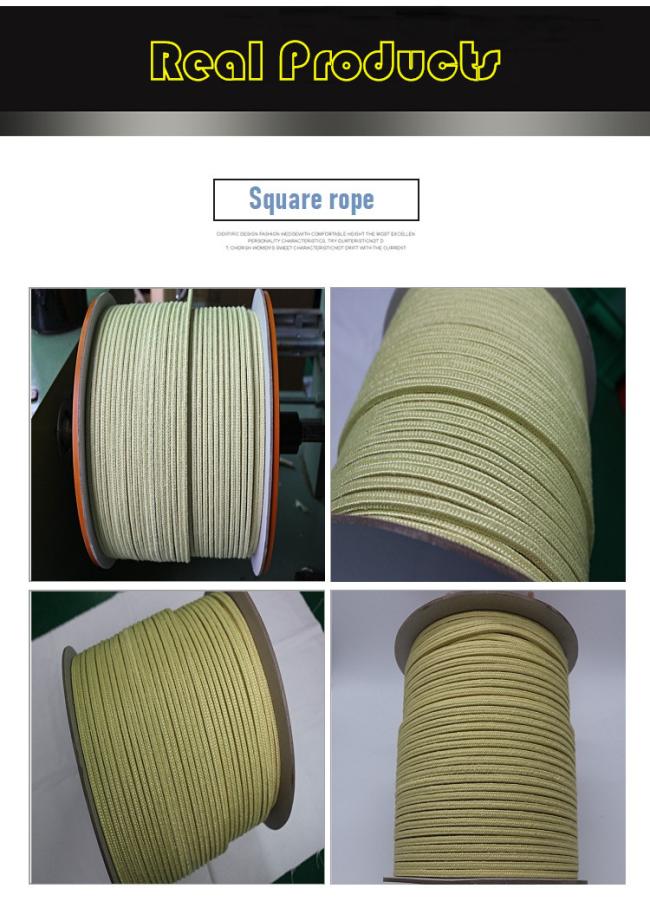

Square Rope Sizes (Customizable)
| Model | Width (mm) | Thickness (mm) |
|---|---|---|
| 4 x 4 | 4 | 4 |
| 5 x 5 | 5 | 5 |
| 5.5 x 5.5 | 5.5 | 5.5 |
| 6 x 6 | 6 | 6 |
| 8 x 8 | 8 | 8 |
| 10 x 10 | 10 | 10 |
| 12 x 12 | 12 | 12 |
Round Rope Sizes (Customizable)
Dia 2mm | Dia 3mm | Dia 4mm | Dia 5mm | Dia 6mm | Dia 8mm | Dia 10mm | Dia 12mm | Dia 20mm
Application Scenarios
Specialized for glass tempering furnaces, including flat glass tempering furnaces, curved glass tempering furnaces, and ultra-thin glass tempering equipment. Widely used in transmission systems, load-bearing mechanisms, and guiding components of tempering furnaces, suitable for glass processing plants, building glass production lines, and automotive glass manufacturing facilities.
Why Choose Our Kevlar Aramid Rope?
- Equipment-Specific Design: Tailored to the working characteristics of glass tempering furnaces.
- Premium Material Selection: High-quality Kevlar aramid fiber from reputable suppliers.
- Customization Support: Flexible customization of diameter, length, and structure.
- Strict Quality Control: Rigorous testing for tensile strength, heat resistance, and wear resistance.
Technical Specifications
| Item | Specification |
|---|---|
| Material | 100% Kevlar Aramid Fiber |
| Continuous Operating Temperature | -50°C ~ 260°C |
| Short-Term Peak Temperature | Up to 300°C |
| Diameter Range | 2mm - 20mm (Customizable) |
| Standard Length | 250m/roll, 500m/roll (Custom lengths available) |
| Color | Standard: Yellow (Custom colors for bulk orders) |
| Braiding Structure | 8-strand, 12-strand (Customizable) |
| Tensile Strength | ≥ 2800 N/mm² |
| Elongation at Break | ≤ 3.5% |
| Wear Resistance | Excellent (Passes 5000+ hours of friction testing) |
| Chemical Resistance | Resists acids, alkalis, and common industrial solvents |
Installation & Usage Notes
- Pre-Installation Check: Inspect the rope for any damage before installation.
- Proper Tensioning: Maintain moderate tension to prevent breakage or slippage.
- High-Temperature Protection: Do not expose to temperatures exceeding 300°C for extended periods.
- Avoid Sharp Edges: Use protective sleeves if contacting sharp components.
- Regular Inspection: Check monthly for wear, elongation, or deformation.
- Storage Conditions: Store in a dry, cool, and well-ventilated area.
Product Highlights: Professional woven with special fibers, featuring strong tensile strength, fire retardant properties, high temperature resistance, wear resistance, cut resistance, and corrosion resistance.
1 piece = 1 roll. We are professional manufacturers with many years of experience, offering self-produced direct sales, multi-specification options, large-scale stock availability, and uninterrupted supply.
Quality Promise: 100% high-quality aramid yarn production with no adulteration or cut corners.
