Quartz Fused Silica Roller For Glass Tempering Furnace
Price:
USD 500 per piece
MOQ:
4 pcs
Delivery Time:
30days
Brand:
VIBRAN
Product Description
Durable Quartz Fused Silica Roller for Glass Tempering Furnace
Compatible with TamGlass Glasston Unic Landglass and Jinglass
Product Introduction
The Fused Silica Ceramic roller consists of porcelain body, bearing, shaft and plastic labyrinth sealing ring. This ceramic roller shaft is a key component in glass horizontal tempering furnaces, primarily used for carrying and transporting glass.
Applications
Glass Tempering Furnace, Silicon steel production, Lehr & lor float glass line, etc.
Ceramic roller
Basic Information
| Raw Material | Silica | Bulk density | >1.98 (g/cm3) |
|---|---|---|---|
| Apparent porosity | 7-11 (%) | Press compression | 102 Mpa |
| Compression strength | ≥60 (MPa) | Expansion coefficient | 0.6*10-6/degree |
| Transverse strength | ≥30 (Mpa) | Certification | CE, RoHS |
| Expansion Coefficient | <0.6 (×10-6 /°C) | Warranty | 1 years |
| Surface Roughness | ≤1.5 (μm) | MOQ | 5 Pieces |
| OD Tolerance | ±0.05 (mm) | Density | 1.98g/cm3 |
| Radial Beat (Tolerance in rotation) | ≤0.10 (mm) | Package | Fumigate Wooden Case |
Note: Size can be customized with special specifications

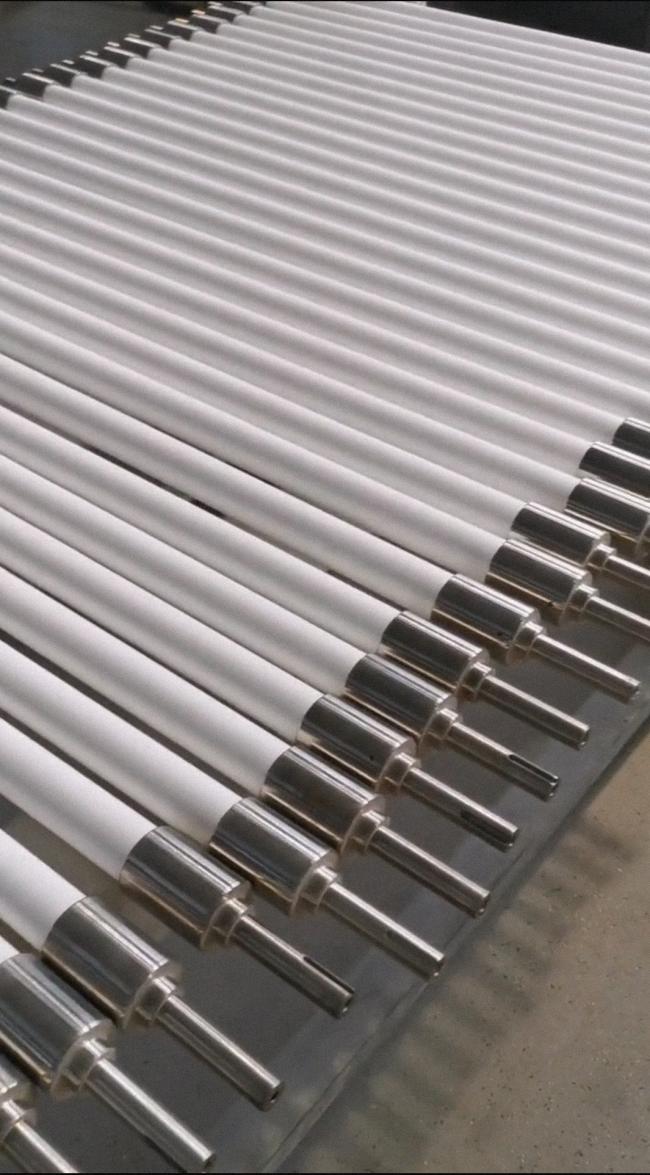

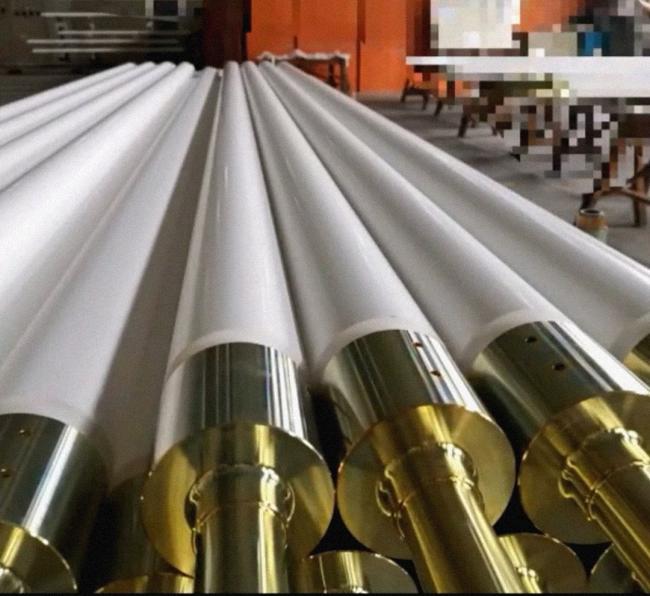

Detailed Photos
Product Features
- High purity and high density construction
- Low porosity and critical manufacturing measurement
- Smooth, delicate surface with small radial runout
- Superior processing accuracy compared to similar imported products
- Anti-loose sleeve structure design for extended service life
- Original grouting forming technology for high density and strength
- No deformation at high temperature, wear resistant
- Reduces comprehensive cost of belt conveyor and maintenance man-hours
- Ideal for high grade Automobile, Electronic, and Solar glass manufacture
Quality Assurance
If there is any problem with the quality, we are responsible for returning it!

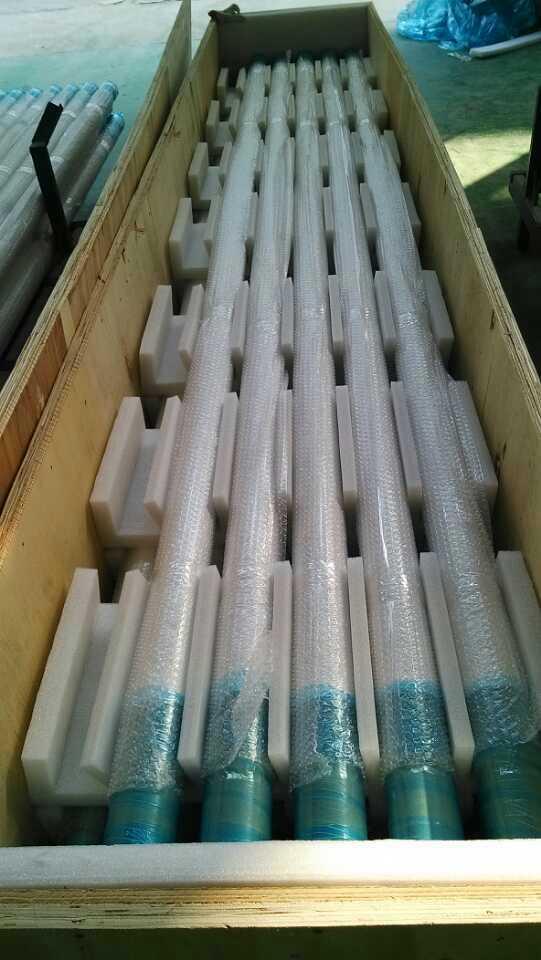

Packing & Delivery
MOQ: 4 pieces
We are professional manufacturers with many years of experience, offering self-produced direct sales, multi-specification options, large-scale stock availability, and uninterrupted supply.
We promise: 100% high-quality quartz production, refusal to adulterate, serving our customers with quality and reputation.
