Quartz Fused Silica Shaft Landglass Tamglass Tempering Furnace Ceramic Roller

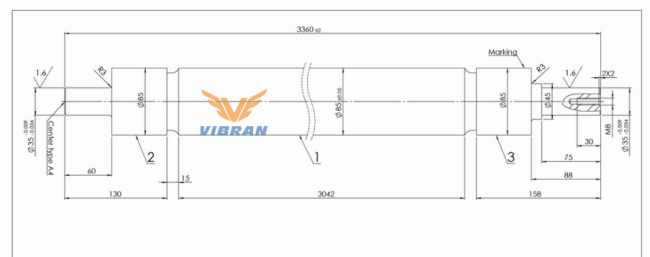

The Fused Silica Ceramic roller consists of porcelain body, bearing, shaft, and plastic labyrinth sealing ring. Ceramic roller shaft is a key component in glass horizontal tempering furnace, primarily used for carrying and transporting glass.
Glass Tempering Furnace, Silicon steel production, Lehr & float glass line, etc.
| Raw Material | Silica | Bulk density | >1.98 (g/cm3) |
|---|---|---|---|
| Apparent porosity | 7-11 (%) | Press compression | 102 Mpa |
| Compression strength | ≥60 (MPa) | Expansion coefficient | 0.6*10-6/degree |
| Transverse strength | ≥30 (Mpa) | Certification | CE, RoHS |
| Expansion Coefficient | <0.6 (*10-6 /°C) | Warranty | 1 years |
| Surface Roughness | ≤1.5 (μm) | MOQ | 5 Pieces |
| OD Tolerance | ±0.05 (mm) | Density | 1.98g/cm3 |
| Radial Beat (Tolerance in rotation) | ≤0.10 (mm) | Package | Fumigate Wooden Case |
Size can be customized with special specifications
- High purity and density with low porosity
- Smooth surface with small radial runout and superior processing accuracy
- Anti-loose sleeve structure design for extended service life
- Original grouting forming technology for high density and strength
- No deformation at high temperature, wear-resistant with long service life
- Reduces conveyor costs and maintenance man-hours
- Ideal for high-grade automobile, electronic, and solar glass manufacturing
If there is any problem with the quality, we are responsible for returning it!
MOQ: 4 pieces
We are professional manufacturers with many years of experience, offering self-produced direct sales, multi-specification products, large-scale stock availability, and uninterrupted supply.
We promise: 100% high-quality quartz production, refusal to adulterate, serving customers with quality and reputation.
