Straight Line Glass Edging Machine 9 Motors Grinding Head Linear Polishing Machine
Price:
11000
MOQ:
1 set
Delivery Time:
60 days
Brand:
Vibran
Product Description
Straight Line Glass Edging Machine - 9 Motors Grinding Head Linear Polishing Machine
Machine Application
This straight line glass edging machine is designed for grinding and polishing the bottom edge of flat glass, including arris grinding. It efficiently processes glass of various sizes and thicknesses, completing rough grinding, fine grinding, and polishing in a single operation.

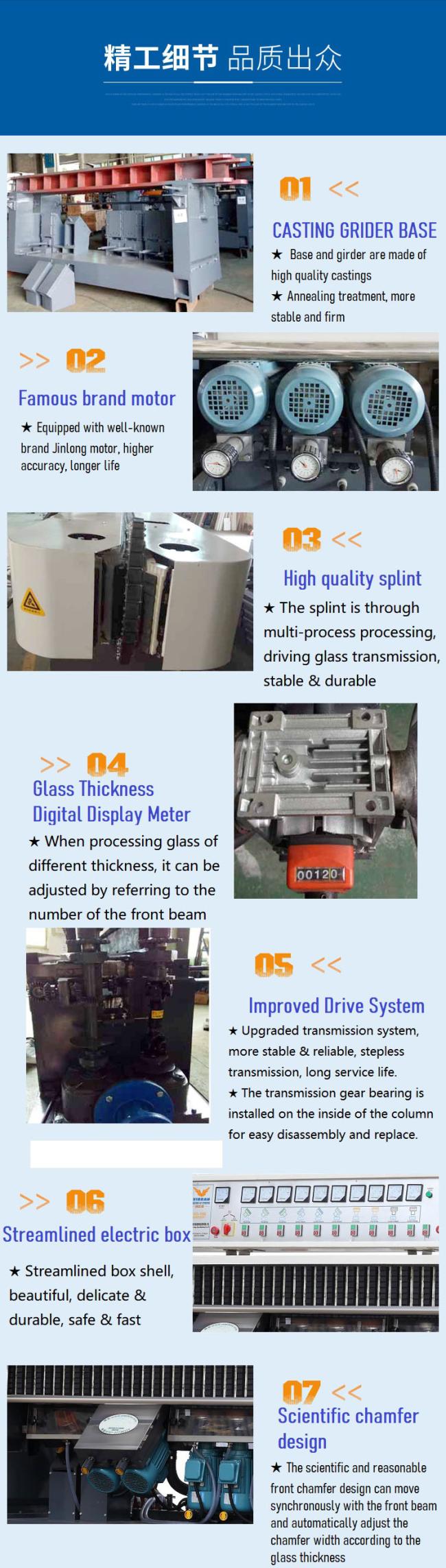

Machine Structure
The machine consists of four main components:
- Mechanical parts
- Electrical cabinet
- Glass support rack
- Input/output conveyor system
Export Configuration Details
- Voltage: 3 phase 380V 50HZ
- Thickness adjustment: Hand-cranked mechanism with chain conveyor at inlet/outlet ends and iron square tube glass support frame
- Grinding plate: High quality solid rubber plate
- Additional features: Manual oil pump and stainless steel decorative rod
- Water system: Stainless steel floor water tank
Technical Specifications
| Specification | Detail |
|---|---|
| Model | ZM9325 |
| Feeding speed | 0.7~7m/min |
| Minimum glass size | 50mm × 50mm |
| Glass thickness range | 3mm~25mm |
| Power | 19.75kw |
| Overall dimensions | 7000mm × 1000mm × 2500mm |
| Machine weight | 3000kg |
| Max chamfer grinding | 2mm |
| Max bottom grinding | 3mm |
| Power motor | Jinlong/Xingdnogya/Mingliang |
| Voltage | 380V 50HZ (customizable) |
