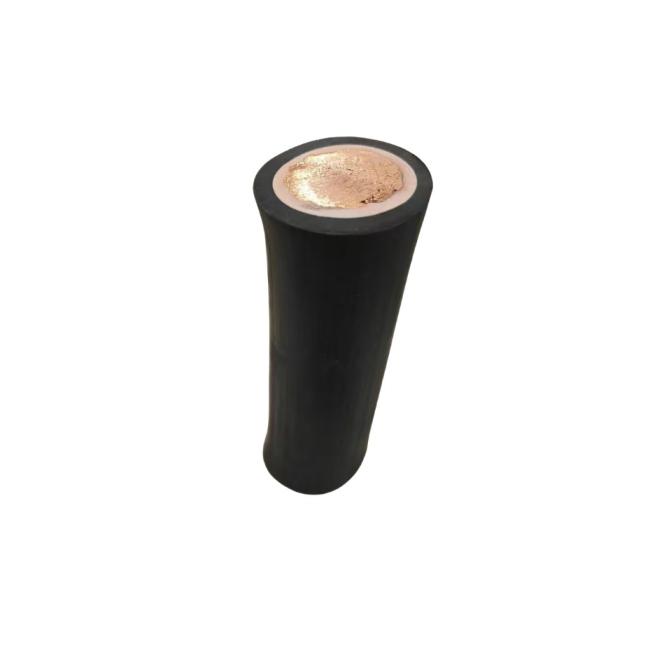

450/750V H07RN-F Single Core Rubber Flexible Cable With Annealed Copper Conductor
450/750V Single Copper Conductor H07RN-F EPR Insulation CPE Sheath Flexible Rubber Power Cable. This rubber cable features a flexible movable design with multiple strands of thin copper wire as conductor, EPR rubber insulation and rubber sheath. Its softness and tensile resistance make it ideal for various electrical equipment in both indoor and outdoor environments, particularly in hot environments such as power generation, metallurgy and chemical industries.
- Conductor: Stranded Copper Core
- Insulation: EPR (Ethylene Propylene Rubber)
- Sheath: Rubber
- Configuration: Single Core
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Movable, Flexible, oil resistance, small bending radius, tensile resistance

Flexible rubber cables are designed for wear resistance, oil resistance, weather resistance, high temperature tolerance, and mechanical damage protection. Their excellent flexibility makes them ideal for complex and harsh working environments, particularly in situations involving frequent movement, mechanical friction, and oil exposure.

- Fixed: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed: -15°C to +60°C
- Insulation tested to +90°C
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
| Product Name | H07RN-F Rubber cable |
|---|---|
| Brand | Ke Fei Te |
| Model | YC |
| Conductor Material | Annealed copper conductor |
| Insulation Material | EPR |
| Jacket | General Rubber Sheath |
| Color | Black |
| Shape | Round wire |
| Feature | Flexible, oil resistance, Inflaming retarding, soft and tensile resistance |

Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cables for 40 years. As a large enterprise in cable production, we manufacture various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements.
Our products are globally distributed and widely used in coal mines, power stations, transportation and other fields, recognized for excellent quality and after-sales service.
