YFFB Flat Flexible Cable Copper Rubber Elevator 0.5mm/0.75mm/1mm Collapsible Retractable Door Cable IP68 Low Voltage for Overhead Cranes

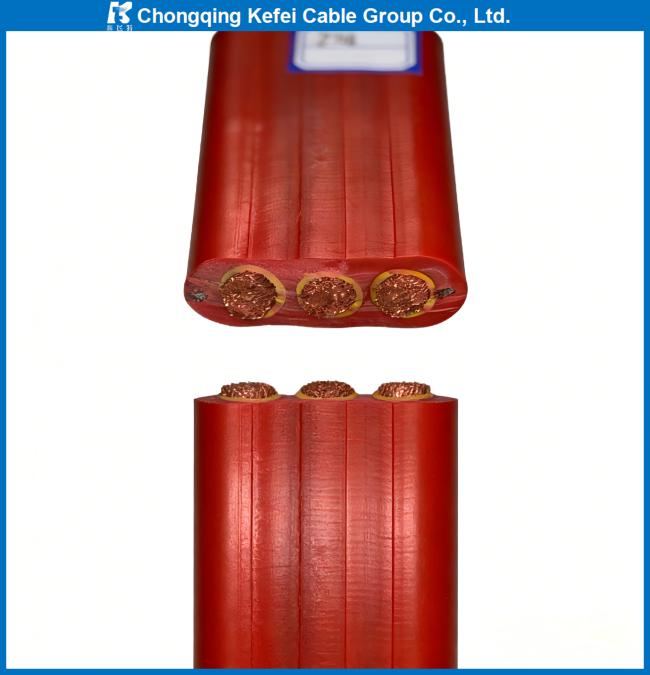

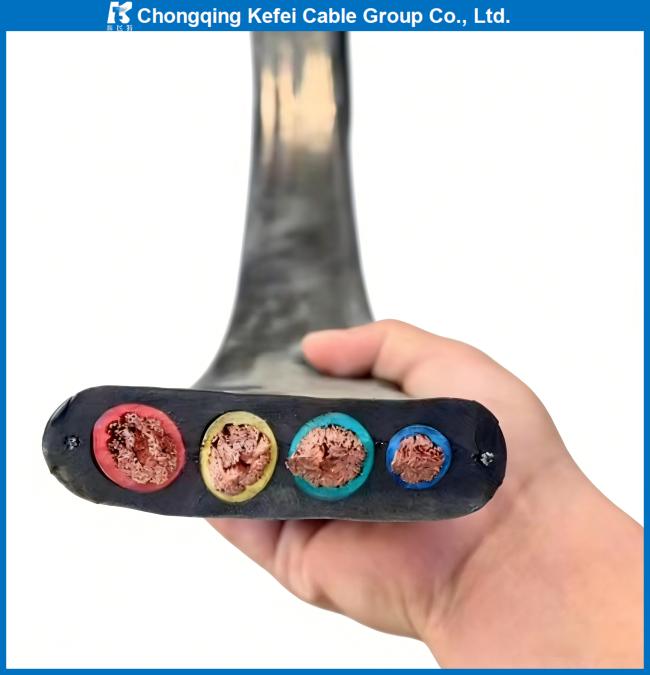

Low Voltage 3 Core 4 Core Rubber Insulated Flexible Cable Flat Elevator Travel Power Cord
450/750V EPR Rubber insulation Cable Oil Resistant YFFB Cable 3*35+1*10mm 3*16mm 5*6mm 4*25mm Flexible Flat Shape Elevator Power Cord
450/750V Low Voltage Rubber Sheath EPR Insulation Stranded Copper Conductor High Flexible 1mm-150mm 3/4/5/6/7/8 Cores Flat Cable for Industrial and Lifting Machinery applications. Its advantages are highly suitable for scenarios with frequent movement, limited space and complex environments.
Product Quick Details
- Conductor: It is made by twisting multiple thin copper wires together to enhance the flexibility and bending performance of the cable, making it easier to lay and use in confined spaces.
- Sheath: Chloroprene rubber is commonly used, which has excellent weather resistance, chemical corrosion resistance, and protects the cable conductor and insulation layer, preventing external mechanical damage.
- Insulation: EPR Rubber,which has excellent electrical insulation properties, oil resistance and low-temperature resistance.
- Voltage: 450/750V (Low Voltage).
- Shape: Flat shape, higher space utilization, suitable for narrow/regular wiring scenarios, has better bending performance, suitable for frequent movement/dynamic scenarios
- No. of Cores: 3Cores, 4Cores, 5Cores, 6Cores and more
- Cross Section: 1mm, 2.5mm, 4mm, 6mm, 10mm, 25mm, 35mm, 50mm and more
- Usage Scenario: Ideal for industries, lifting/transportation, mobile equipment, and special environments like ships and mines
Applications
The flat rubber cable is made of pure copper stranded conductors, EPR insulation and rubber sheath with oil resistance, wear resistance and flexibility. Perfect for applications requiring frequent movement, bending and high environmental adaptability.The specific usage scenarios are as follows:
- Industrial field: Power and signal connections for automated production lines and CNC machines
- Lifting and transportation: Gantry cranes, hoists, belt conveyors
- Mobile equipment: Electric tools, stage lighting and sound systems
- Outdoor projects: Construction sites and municipal projects
- Special environments: Ships, mines with vibration, humidity and fire prevention requirements
Quality Assurance
- Every production process has a special person to test to ensure quality;
- Have professional engineers to check the quality;
- All products have passed CCC,ISO and other certifications,Compliant with IEC standards.
Company Profile
Chongqing Kefei Cable Group Co., Ltd.
Our Company has focused on R&D and production of rubber cable for 40 years. We specialize in mining cables, rubber sheath cable series, shield machine special high voltage cable and other series, with particular expertise in flexible cables. Our products are sold worldwide and used in coal mines, power stations, transportation and other fields, recognized for excellent quality and after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
