10kW PTFE Housing Inline Chemical Heater Three Phase Industrial In Line Electric Heater
10kW PTFE Inline Chemical Heater
Benefits
- Heavy gauge pre-formed Inconel element can stand up to high stress conditions without breaking down
- Power modulator monitors heater element temp and prevents heat buildup inside the housing
- Sealed housing prevents chemistry from attacking internal components & provides secondary containment
- Internal leak detect strip (requires external monitor) gives early detection of chemical leaks
- All wiring shielded with teflon conduit to prevent chemical attack
- Indirect heating design, no submerged heater elements
- No N2 or gas purge required
Features
- No O-Ring seals
- All wetted surfaces are high purity PFA
- PTFE housing for double containment
- Maximized watt density for performance
- Light weight construction
- Small foot print enabled by unique design
- Zero maintenance required
- PFA fluid path, wide chemistry compatibility
- High temperature capability 200°C+
Specifications
|
Heater
|
PTFE In-line Chemical Heater
|
|---|---|
|
Wattages
|
1.5-12 kW
|
|
Process Chemistries
|
Dilute Hydrofluoric acids (DHF),
Buffered Hydrofluoric acids (BHF), Buffered Oxide etch (BOE), Alkaline Chemicals (TMAH, KOH, NAOH), Fluorinated Solvents, Hydrofluoric Acid, Glycol, and much more. |
|
Max Operating Temperature
|
180°C (consult factory
for higher temperatures) |
|
Max Pressure
|
40 psi at 180°C
|
|
Voltages
|
200-400VAC,
single or 3 phase model dependent |
Applications
Electrochemical Deposition
Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.
|
Electrochemical Deposition Products(2) |
||
|
MOTS SINGLE – BOTTOM, DERATED .
|

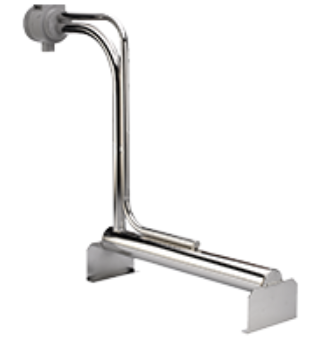

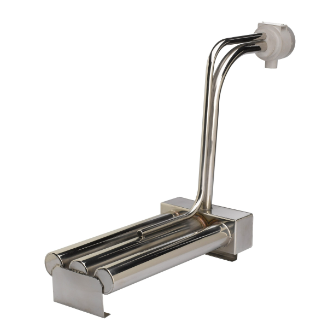

MOTS TRIPLE – L SHAPED
|

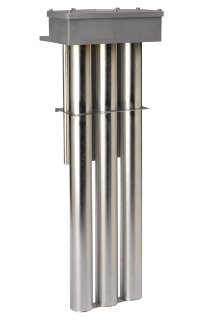

6HS SERIES – TUBULAR
|
|

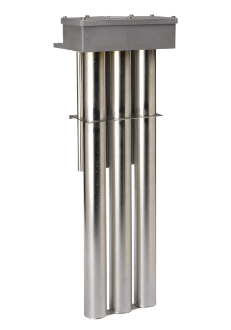

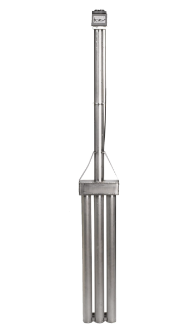

MOTS TRIPLE – DEEP TANK
|
MOTS TRIPLE – DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.  |
MOTS TRIPLE
|

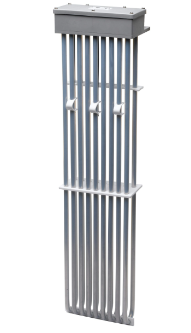

| 9HX SERIES Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.  |

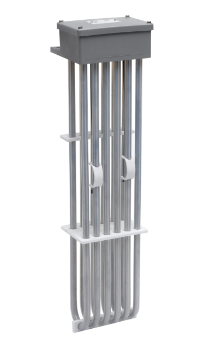

6HX SERIES Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.  |
3HXOL SERIES Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.
|

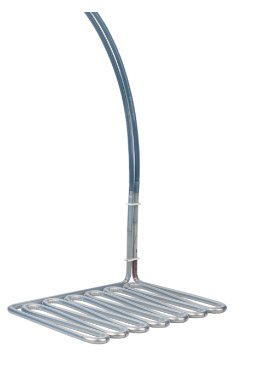

| HXSL SERIES Custom, low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.  |
HXRL SERIES
|

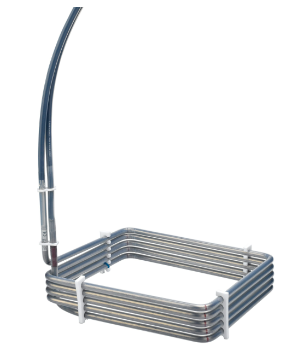

HXO SERIES Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts.  |

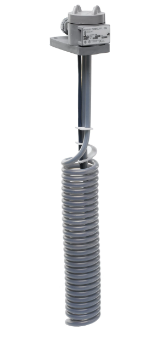

| HXF SERIES Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.  |
HX SERIES Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.  |
|
