Replace The Imported Large Container Glue Filling Machine, Glue Resin Coating Level Gauge, Simulated Long Rod Level Sensor, Metal
Price:
Negotiable
MOQ:
1Set
Delivery Time:
5-8 work days
Brand:
QINWEIYB
Product Description
Replacement of imported large container adhesive filling machine adhesive resin coating level gauge, simulated long rod level sensor metal
Product Parameters
| Parameter | Value |
|---|---|
| Protection level | IP67 |
| Ambient temperature | 0~60 |
| Appearance and material | Probe- Teflon |
| Interface | Connector M12 |
| Detection accuracy | The maximum value of the detection range is 3% |
| Protection | Over-current protection, over-voltage protection |
| Analogue Output | 0~10V RL=Min.500Ω 0-20V RL=Max.500Ω Short-circuit protection, reverse electrode protection |
| Detection distance | Contact detection |
| Output signal | NPN NC/NO can be switched |
| Power supply voltage | DC24V |
| Load current | Max.200mA Short-circuit protection |
| Repeat accuracy | Maximum measurement range 1% of the soil |
| Pressure resistance | 3bar |
| How to set | Potentiometer or hand-held |
| Environment temperature | 0-60 |
| Medium range | 0~70 |
| High temperature model | 0-200 |
Core Structure and Features

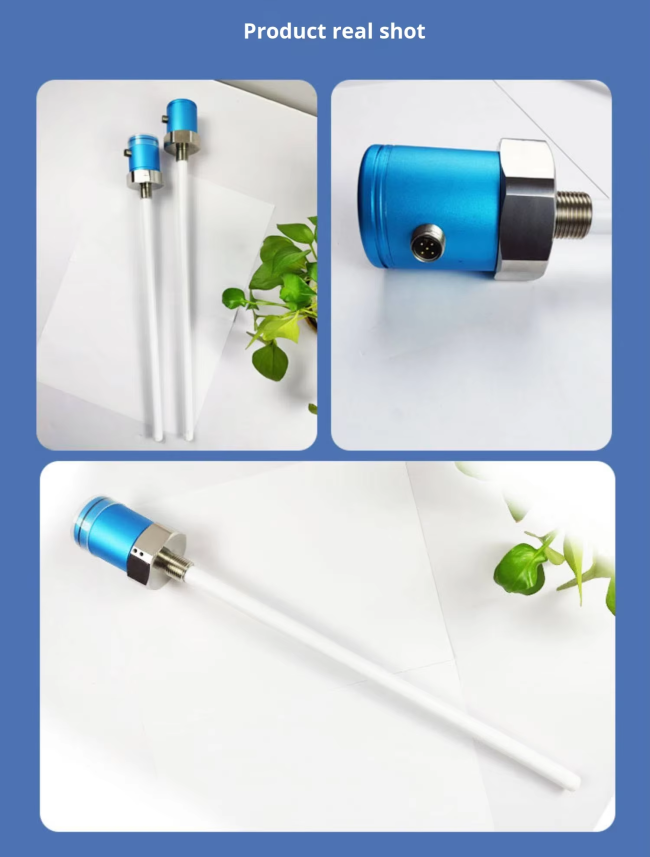

- Integrated digital display head: Blue aluminum alloy housing with built-in digital display and operation buttons, enabling direct range setting, output switching, and real-time material level indication.
- Long PTFE (Teflon) probe rod: Resistant to strong acids and alkalis, as well as adhesive resin buildup; length customizable to suit deep material bins and glue storage tanks.
- Flange mounting base: Multi-hole flange design ensures secure installation, ideal for sealed mounting on industrial tanks.
- Signal output: Supports continuous analog output of 4-20mA or 0-10V, providing real-time feedback on material level (unlike conventional level switches that only offer high/low alarms), along with optional switch-type alarm points.
- Fully integrated design combines amplification circuitry and probe into a single unit, eliminating the need for external separate amplifiers.
Main Applications
Used in dual-fluid dispensing machines, resin storage bins, paint tanks, corrosive chemical liquids, adhesive and hot-melt glue silos, and deep food sauce tanks—ideal for continuous level monitoring, capable of replacing imported rod-type capacitive level sensors.
Difference from Previous Shorter Capacitance Probes
| This long-stem digital display capacitive liquid level gauge | Short thread capacitance liquid level switch (WKC319 / split frying oven model) |
|---|---|
| Long PTFE probe rod, used for measuring continuous material level height, outputs analog signals | Short probe, only detects liquid level arrival/departure, with on-off high/low level alarms |
| Equipped with a digital display header, it is of an integrated design, suitable for flange installation, and ideal for deep tank bodies | Small threaded direct installation, no independent digital display, only single-point liquid level judgment |
| Suitable for industrial control scenarios involving deep material buckets, requiring small pipelines, shallow troughs, and real-time height values triggered by single-point liquid level detection | Small pipelines, shallow tanks, and single-point liquid level triggering scenarios |
