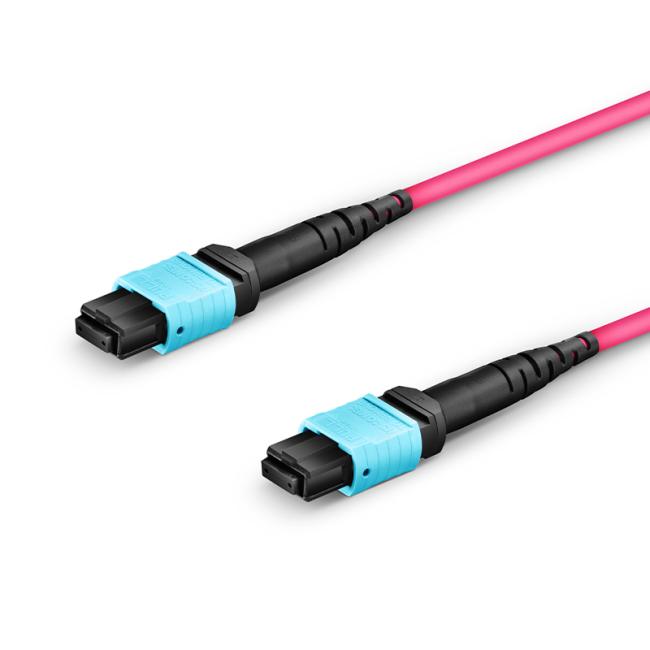

OM4 50/125um MTP-24 Fiber Patch Cable With 24 Fibers And 3.0mm Outer Diameter
Price:
US $ 128-300 / pieces
MOQ:
1 pieces
Delivery Time:
Negotiable
Brand:
HengzhengTC
Product Description
OM4 50/125μm 12 Fibers MPO Fiber Patch Cable with 3.0mm OD for High-Density Data Centers
MPO fiber optic jumpers provide seamless transitions for multi-mode systems in data centers when upgrading data transmission rates. These high-performance jumpers are primarily used for internal cabinet connections, offering an economical and efficient alternative that eliminates time-consuming on-site termination work. Ideal for high-density fiber optic cabling in space-constrained data centers with demanding cable management requirements.
Technical Specifications
| Category | Details |
|---|---|
| Connector A | US Conec MTP® Female (No Pins) |
| Connector B | US Conec MTP® Female (No Pins) |
| Polish Type | UPC - UPC |
| Optical Fiber (Corning) | Corning ClearCurve® |
| Fiber Type | OM4 50/125μm |
| Wavelength | 850/1300nm |
| Number of Fibers | 12 Fibers |
| Polarity | Polarity B |
| Cable Outer Diameter (OD) | 3.0mm |
| Cable Jacket | PVC |
| Minimum Bend Radius (Fiber) | 7.5mm |
| Minimum Bend Radius (Patch Cord) | 20/10D (Dynamic/Static) |
| Connector Durability | 500 Cycles |
| Tensile Strength (Long-term/Short-term) | 90/180N |
| Insertion Loss |
≤0.25dB |
| Return Loss | ≥20dB |
| Attenuation @850nm |
≤3.5dB/km |
| Attenuation @1300nm |
≤1.5dB/km |
| Operating Temperature |
0~60°C (32~140℉) |
| Storage Temperature |
-10~70°C (14~158℉) |
