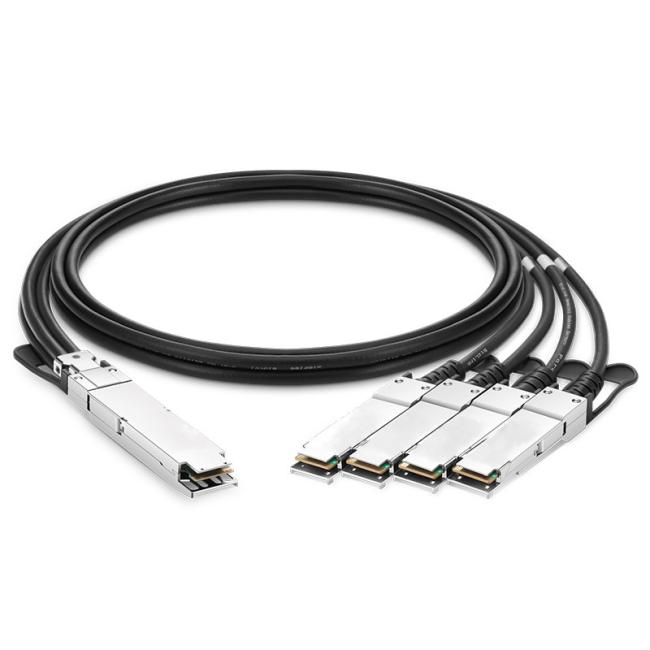

MCP7Y40-N002 800G OSFP Top Heatsink 4 X 200G QSFP112 NDR InfiniBand Fiber Optic Breakout Cable

This Mellanox InfiniBand MCP7Y40-N002 cable is a 2x 400Gb/s dual-port OSFP to 4x200Gb/s dual-port QSFP112 high-speed cable with 8 channels and dual-port OSFP ends featuring heatsinks, suitable for Quantum-2 and Spectrum-4 switches. The four 200G ports support 2-channel 100G-PAM4 (200G) and are packaged in a flat-top QSFP112 enclosure, designed for ConnectX-7 network cards and BlueField3 power supplies with heatsinks used in connector racks. This cable complies with OSFP MSA, QSFP112 MSA, and IEEE 802.3ck standards.

• Meets the requirements of the InfiniBand HDR end-to-end system
• Low latency, low insertion loss, low crosstalk, high-speed interconnection
• Better than 2.4E-4 8x 100G-PAM4 converted to 4 channels of 2x100G-PAM4
• Compatible with NVIDIA QM9700/9790 devices, ConnectX-7 network cards, and BlueField-3 DPUs
• Minimum bending radius 31mm, flexible wiring
• Simplified wiring provides an economical and efficient way for short-distance connections
• Compliant with OSFP MSA, QSFP112 MSA, IEEE 802. and CMIS Rev 5.0 standards

1. How can we guarantee quality?
   • Strict Quality Control Process
2. What can you buy from us?
   • Brocade FC & Ethernet Switches (e.g., Brocade 6505, 6510, G620)
   • QLogic & Emulex HBAs (e.g., QLogic 2562, Emulex LPe31000)
   • Finisar Optical Transceivers (10G/25G/40G/100G, compatible with Cisco, HPE, etc.)
   • Mellanox InfiniBand & Ethernet Adapters (e.g., ConnectX-3/4/5, 10G/25G/100G)
3. Why should you buy from us not from other suppliers?
   • Genuine & Reliable Products
   • Competitive Pricing
   • Fast & Secure Shipping
   • Technical Support
   • Flexible Solutions
