Mellanox MCP4Y10-N00A Compatible 800G OSFP NDR InfiniBand Top Mounted Heatsink High Speed Cable
Price:
$132-243 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
HengzhengTC
Product Description

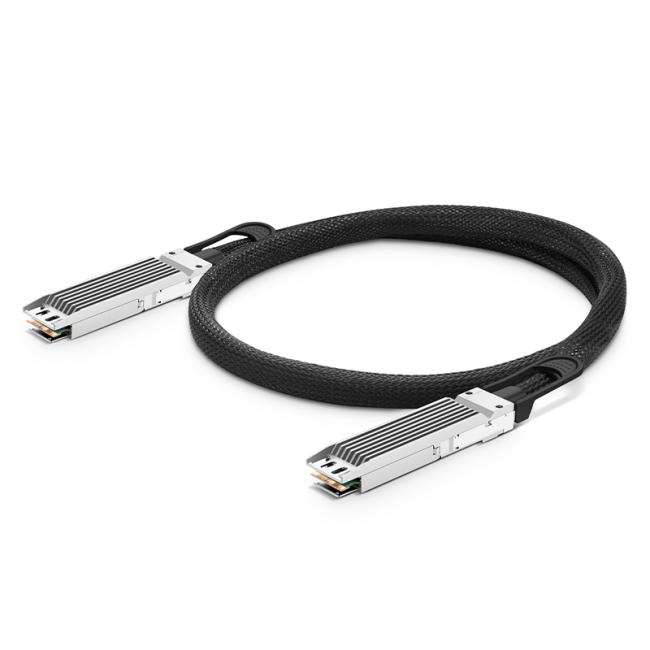

Mellanox MCP4Y10-N00A Compatible 800G OSFP NDR InfiniBand Top-mounted Heatsink High-speed Cable
This Mellanox InfiniBand MCP4Y10-N00A cable is a 2x400Gb/s dual-port OSFP to 2x400Gb/s dual-port OSFP high-speed cable. It uses eight-channel small form-factor pluggable optical modules (OSFP), containing 8 pairs of high-speed copper cable pairs, each capable of supporting data transmission rates of up to 100Gb/s. This cable complies with the OSFP MSA and IEEE 802.3ck standards.
Key Features
- Meets the requirements of the InfiniBand HDR end-to-end system
- Low latency, low insertion loss, low crosstalk, high-speed interconnection
- The bit error rate (BER) of the InfiniBand NDR system is better than 2.4E-4
- 8x100G-PAM4 to 8x100G-PAM4
- Comprehensive inspection, fully compatible with NVIDIA QM9700/9790 devices
- Minimum bending radius 69mm, facilitates wiring
- Simplified wiring and provided an affordable solution for short-distance links
- Compliant with OSFP MSA, IEEE 802.3cd, and CMIS v4.0 standards
|
encapsulation
|
OSFP to OSFP
|
|
Optical fiber type
|
Copper cable
|
|
minimum bending radius
|
54mm
|
|
Outer sheath material
|
PET
|
|
technical protocol
|
OSFP MSA, IEEE 802.3ck, CMIS v4.0
|
|
Maximum transmission rate
|
800Gbps
|
|
Cable type
|
Passive twisted pair
|
|
power consumption
|
0.1W
|
|
temperature range
|
0~70°C (32~158°F)
|
|
Modulation format
|
PAM4
|
Ordering Information
| ORDERABLE PART NUMBER (OPN) | DESCRIPTION |
|---|---|
| HZDO800D005 | 0.5m (2ft) Mellanox MCP4Y10-N00A Compatible 800G OSFP NDR InfiniBand Top Heatsink High-Speed Cable for Quantum-2 Switches |
| HZDO800D01 | 1m (3ft) Mellanox MCP4Y10-N001 Compatible 800G OSFP NDR InfiniBand Top Heatsink High-Speed Cable for Quantum-2 Switches |
| HZDO800D015 | 1.5m (5ft) Mellanox MCP4Y10-N01A Compatible 800G OSFP NDR InfiniBand Top Heatsink High-Speed Cable for Quantum-2 Switches |
| HZDO800D02 | 2m (7ft) Mellanox MCP4Y10-N002 Compatible 800G OSFP NDR InfiniBand Top Heatsink High-Speed Cable for Quantum-2 Switches |
| HZDO800D03 | 3m (10ft) Mellanox Compatible 800G OSFP NDR InfiniBand Top Heatsink Passive High-Speed Cable for Quantum-2 Switches |
