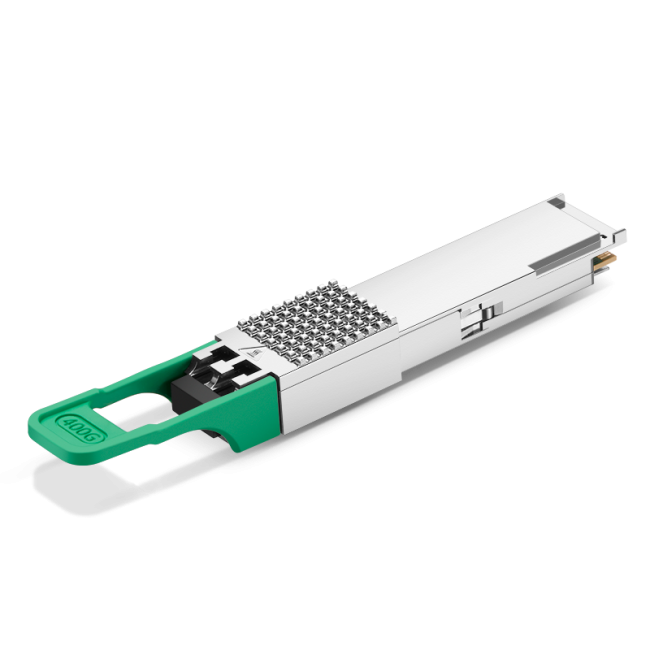

400GBASE-FR4 QSFP112 NDR InfiniBand Single Mode PAM4 1310nm 2km DOM Duplex LC UPC

This Mellanox compatible QSFP112 NDR InfiniBand optical module is a 400Gb/s single-port QSFP112 FR4 single-mode parallel optical module, using a single 4-channel duplex LC/UPC optical connector. This short-range 4-channel (FR4) design employs 100G-PAM4 modulation to achieve transmission distances of up to 2km over OS2 single-mode fiber. This optical module is used to connect ConnectX-7/QSFP112 network cards to 2x400G IB switches with dual-port optical modules.

• Complies with InfiniBand NDR end-to-end system requirements
• Built-in Marvell 6nm DSP chip, with a maximum power consumption of 10W
• Low Bit Error Rate (BER) of InfiniBand NDR system
• Support the connection of 800G to 2x400G links from switch to network card
• 4x106.25G PAM4 retimed 400GAUI-4 electrical interface
• Hot-pluggable QSFP112 packaging format
• Complies with QSFP-112 MSA, CMIS Rev 4.0, IEEE 802.3cu standards and Class 1 laser safety
• Complies with high-speed electrical interface standards
• Through rigorous testing, ensure full compatibility with NVIDIA ConnectX-7 network cards
