MMS4X00-NS400 400Gbps OSFP Optical Module MPO-12/APC Connector For InfiniBand NDR
Price:
$974 -1200/ piece
MOQ:
1pieces
Delivery Time:
Negotiable
Brand:
HengzhengTC
Product Description
Mellanox MMS4X00-NS400 Compatible 400GBASE-DR4 OSFP NDR InfiniBand Flat Single-mode PAM4 1310nm 500m DOM MPO-12 APC
Product Description

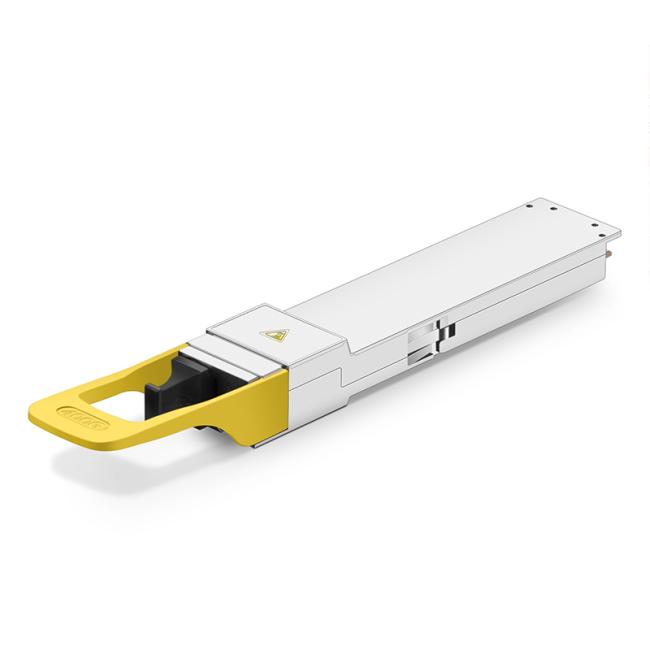

This 400G DR4 OSFP optical module is a single-port OSFP optical module for InfiniBand with a speed of 400Gb/s. It features a DR4 single-mode parallel design and uses a single 4-channel MPO-12/APC optical connector. The optical module employs 100G-PAM4 modulation technology, capable of achieving a transmission distance of 500m over OS2 single-mode fiber. It is used with ConnectX-7 HCA.
Key Features
- Complies with InfiniBand NDR end-to-end system requirements
- Built-in Marvell 6nm DSP chip, with a maximum power consumption of 10W
- Flat OSFP optical modules are suitable for ConnectX-7 network cards
- Support 800G to 2x400G links between the switch and the network card
- Convert 4 sets of 100G-PAM4 electrical signals into 4 sets of 100G-PAM4 optical signals for parallel transmission
- Through rigorous testing, ensure full compatibility with NVIDIA ConnectX-7 network cards
- Compliant with OSFP MSA, IEEE 802.3ck standards and Class 1 laser safety, supports DDM (Digital Diagnostics Monitoring)
|
Wavelength
|
1310nm
|
|
Interface.
|
MPO-12/APC
|
|
Emitter type
|
DFB
|
|
Transmit power
|
-2.9~4dBm
|
|
power budget
|
3dB
|
|
Power consumption
|
10W
|
|
DDM/DOM
|
support
|
|
Modulation (electrical port)
|
4x100G-PAM4
|
|
CDR
|
support
|
|
Core size
|
9/125um
|
|
Technical agreement
|
OSFP MSA Rev. 5.0, IEEE Std 802.3bs-2017, IEEE Std 802.3ck-2022, CMIS Rev. 4.0
|
|
Maximum transmission rate
|
425Gbps
|
|
Maximum transmission distance
|
500m
|
|
Optical fiber type
|
single mode
|
|
Receiver type
|
PIN
|
|
Minimum received power
|
-5.9dBm
|
|
Receiving overload
|
4.0dBm
|
|
extinction ratio
|
3.5dB
|
|
Commercial temperature range
|
0~70°C (32~158°F)
|
