NE9000-8 02351PMK NetEngine 9000 Series Integrated Chassis Enterprise Service Router

Price Negotiable

Price: 3200-5400USD

MOQ: 1

Delivery Time: 3-7 work days

Brand: Huawei

Product Description

Product Description

The NetEngine 9000 series are large-capacity, high-reliability, energy-efficient routers designed to meet interconnection requirements in the cloud era. NetEngine 9000 series routers serve as core nodes on large Data Center Interconnect (DCI) networks, large enterprise networks, and metro networks, and as super-core nodes on carriers’ backbone networks.

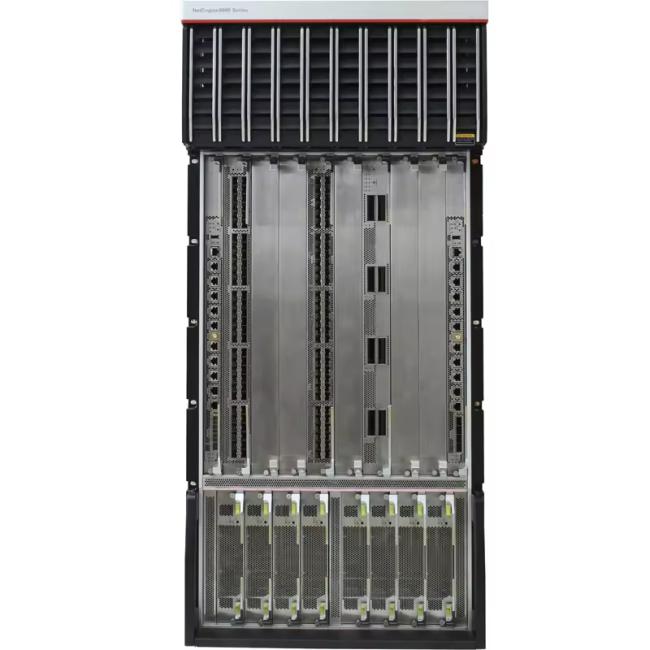

Details Images

Specification

Item	Specification
Cabinet installation standards	Can be installed in an 1000 mm-deep standard 19-inch cabinet and is installed in a 2200 mm-high HW N610E cabinet by default.
Dimensions without packaging (H x W x D) [mm(in.)]	1016 mm x 442 mm x 945 mm (40 in. x 17.4 in. x 37.2 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	1016 mm x 442 mm x 945 mm (40 in. x 17.4 in. x 37.2 in.)
Chassis height [U]	23 U
Weight without packaging [kg(lb)]	181 kg (399.0 lb)
Weight without packaging (full configuration) [kg(lb)]	374kg (824.5 lb)
Typical power consumption (with configuration) [W]	Typical 7970W (include 8 PMs, 3 LPU FANs, 2 SFU FANs)
	2 MPU + 8 SFU + 8 20x100G QSFP28
	Typical 13500W (include 9 PMs, 3 LPU FANs, 2 SFU FANs)
	2 MPU + 8 SFU + 8 40x100G QSFP28
	Typical 9079W (include 8 PMs, 3 LPU FANs, 2 SFU FANs)
	2 MPU + 8 SFU + 20 20x100G QSFP28 (03058864)
Typical heat dissipation (with configuration) [BTU/hour]	25858 BTU/hour (include 8 PMs, 3 LPU FANs, 2 SFU FANs)
	2 MPU + 8 SFU + 8 20x100G QSFP28
	43799.7 BTU/hour (include 9 PMs, 3 LPU FANs, 2 SFU FANs)
	2 MPU + 8 SFU + 8 40x100G QSFP28
	29456.1 BTU/hour (include 8 PMs, 3 LPU FANs, 2 SFU FANs)
	2 MPU + 8 SFU + 20 20x100G QSFP28 (03058864)
MTBF [year]	18.87 year
MTTR [hour]	0.5 hour
Availability	0.99999
Power supply mode	DC built-in
Maximum number of power chassis inputs	(8 channels/PEM)3 PEM=(2 channels/PM)4 PM*3 PEM=24 channels
Rated input voltage [V]	-48 V / -60 V
Input voltage range [V]	–40 V to –72 V
Maximum input current [A]	63 A/single-module
Maximum input cable size [mm²]	35 mm²/channel
Front-end circuit breaker/fuse [A]	2 channels of 63 A/single-module
Front-end circuit breaker/fuse [A]	[4T bundle] DC device: 6 PMs, with a total of 12 channels of 63 A
Noise at normal temperature (acoustic power) [dB(A)]	77.2dBA, NEBS-compliance (< 78 dBA @ 27°C)
Number of slots	18
Number of service board slots	8
Switching capacity	83.78 Tbit/s
Redundant MPUs	1:01
Redundant Switch fabrics	7+1
Redundant CMUs	1:01
Redundant power supply	[4T bundle] 5+1
Redundant fans	The device has two fan partitions. The LPU partition has three fan assemblies, which support 2+1 fan assembly redundancy. The SFU partition has two fan assemblies, which support 1+1 fan assembly redundancy.
Long-term operating temperature [°C(°F)]	0 °C ~ 40°C(32 °F ~ 104.0°F)
Short-term operating temperature [°C(°F)]	-5 °C ~ 50°C (23 °F ~ 122.0°F)
Storage temperature [°C(°F)]	-40 °C ~ 70 °C (-40.0°F ~ 158.0°F)
Long-term operating relative humidity [RH]	5% to 85%, non-condensing
Short-term operating relative humidity [RH]	5% to 95% RH, non-condensing
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	< 5000 m (16404.2 ft.)
