Quidway S9300X-4 POE Network Switch S9300X Series 10U 100GE L2/L3 Layer Core Routing Switch
Quidway S9300X-4 POE Network switch S9300X series 100GE L2/L3 layer core routing switch
Description
S9300X-4 is the flagship quad slot frame core switch of Huawei CloudEngine S9300X series. It adopts a Clos architecture that separates the main control and switch, with a maximum bandwidth of 4.8Tbps per slot. It focuses on compact and high-density, cloud network integration, intelligent operation and maintenance, and green energy saving.
Positioning: Core/aggregation of medium and large industrial parks, edge of metropolitan area networks, core of small and medium-sized data centers, suitable for 100G/400G backbone deployment and VXLAN cloud networking.
Form: 10U rack mounted, with fully redundant key components, balancing performance and room space utilization.

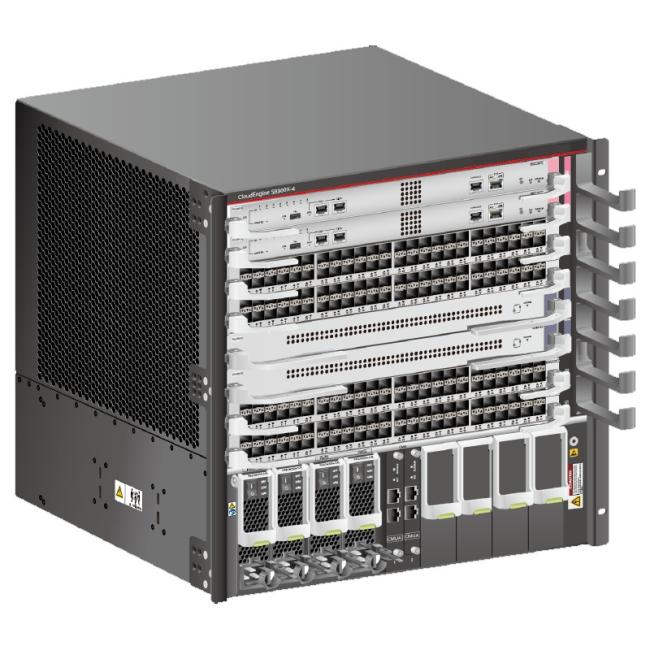

Pictures
Specification
| project | Specifications |
| Business slot | 4 (LPU) |
| Main control slot position | 2 (1+1 redundancy, MPUE/MPUEC) |
| Exchange network slot position | 2 (SFU-E/SFU-MX, supports upgrades) |
| Centralized monitoring slot | 2 (CMU, real-time monitoring of hardware status) |
| Power slot position | 4 (AC/DC optional, supporting N+N/N+1 redundancy) |
| Fan frame | 2 (N+1 redundancy, intelligent speed regulation, ventilation and heat dissipation) |
| Whole machine form | 10U rack mounted, size 442 × 517.4 × 441.7mm |
| Empty weight | About 24.5kg |
| Maximum Power Consumption | Approximately 3344W |
| cooling air duct | Left and front air intake, rear air outlet |
| switching capacity | 19.2 Tbps/256 Tbps (dual stack) |
| Packet forwarding rate | 5760 Mpps/19200 Mpps |
| Single slot bandwidth | Maximum 4.8 Tbps (can be upgraded through swapping network boards) |
| Maximum port density | 96×100GE/192×25GE/384×10GE |
| Cache capacity | Supports a maximum data cache of 200ms per port |
| MAC table | ≥4M |
| routing table | ≥1M(IPV4)/≥512K(IPV6) |
| forwarding delay | ≤3μs |
