CE6881-48T6CQ-B 02353GLD 100ge Enterprise Network Switch 48X10 GE Base-T
CE6881-48T6CQ-B 02353GLD 100ge Network Enterprise Switch 48 x 10 GE Base-T
Description
The CloudEngine 6881 series is a new generation of high-performance and high-density 10GE access Network Enterprise Switch launched by Huawei for data centers. The CloudEngine 6881 series adopts an advanced hardware structure design, providing high-density 10GE port access, supporting 40GE/100GE uplink ports, and featuring a rich array of data center characteristics. The air duct direction can be flexibly selected. The CloudEngine 6881 series Network Enterprise Switch can be used in conjunction with Huawei's core data center switches, CloudEngine 16800 or CloudEngine 12800, to build elastic virtual and high-quality 40GE/100GE fully connected networks for cloud-era data centers. Meet the network demands of data centers in the cloud era.
The CloudEngine 6881 series Network Enterprise Switch are positioned for high-density 10GE access in data centers, helping enterprises and operators build data center network platforms for the cloud computing era. They can also be used as the core or aggregation of campus networks.

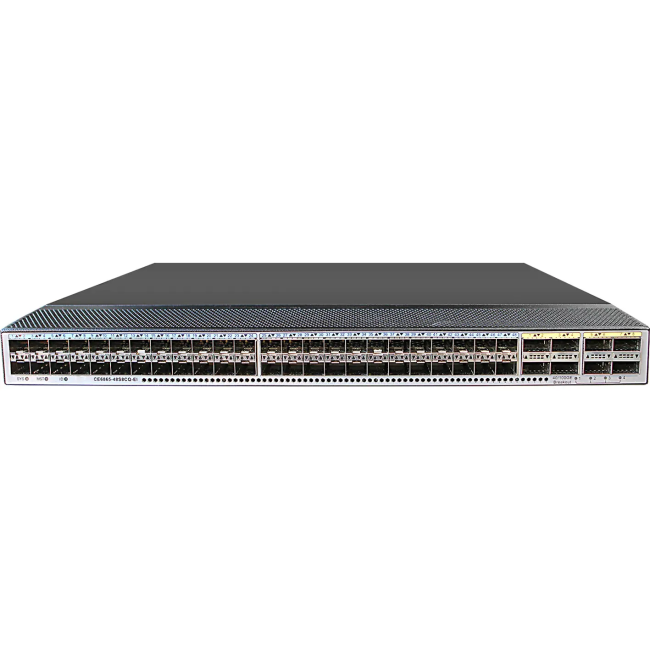

Pictures
Specification
| Item | Specification |
|---|---|
| Dimensions with packaging (H x W x D) [mm (in.)] | 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] |
|
| Weight without packaging [kg (lb)] | 6.6 kg (14.55 lb) (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 8.9 kg (19.62 lb) (including AC power modules and fan modules, but not including optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.) |
| Weight with packaging [kg (lb)] | 10.4 kg (22.93 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 12.3 kg (27.12 lb) |
| Chassis height [U] | 1 U |
| Installation Type | Cabinet installation |
| Switching capacity |
For more details, see the datasheet/brochure or contact product sales personnel. You can obtain the datasheet/brochure from the following link: https://e.huawei.com/en/products/switches/data-center-switches |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | Supported |
| Power supply mode |
|
| Console port | RJ45 |
| Downlink Service interface | 48*10GE RJ45 (supporting only full-duplex) |
| Service port supporting the stack function | 10G electrical port and 100G optical port |
| RTC | Supported |
| Typical power consumption [W] |
|
| Typical heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 235 W |
| Static heat dissipation [BTU/hour] | 801 BTU/hour |
| Maximum power consumption [W] | 452 W |
| Maximum heat dissipation [BTU/hour] | 1542 BTU/hour |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] |
|
| Rated output power [W] |
|
| Certification |
|
| Power supply surge protection [kV] |
|
| Types of fans | Pluggable |
| Number of fan modules | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules |
| Availability | 0.9999953209 |
| MTBF [year] | 48.16 years |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] |
|
| Noise at high temperature (40°C, sound pressure) [dB(A)] |
|
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] |
0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE:
When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | < 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
