CE6865E-48S8CQ-B CE6863E-48S6CQ-B 48×25GE SFP28 + 8×100GE QSFP28 Enterprise Switch
CE6865E-48S8CQ-B CE6863E-48S6CQ-B 48×25GE SFP28 + 8×100GE QSFP28 Enterprise Switch
Description

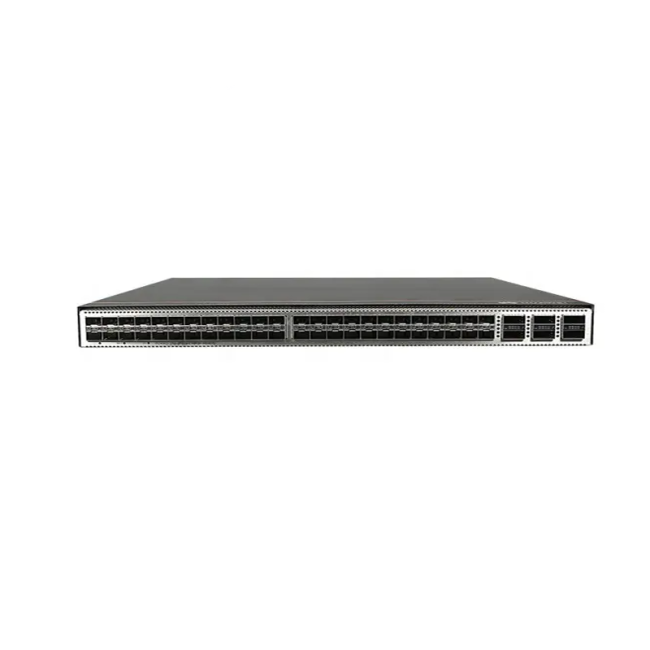

CloudEngine 6863-48S6CQ is an enterprise level data center switch launched by HW, positioned as a high-performance network switching device, suitable for deployment in data centers and enterprise network core layers. Its power supply is 417W, supporting dual power input modes of AC 90-290V and DC -38.4-72V, with high power supply flexibility.
The switch adopts a modular hardware design, equipped with 48 25GE SFP28 downstream ports and 6 40/100GE QSFP28 upstream ports. The backplane bandwidth reaches 4.8Tbps/76.8Tbps, and the packet forwarding rate is 1600Mpps, supporting high-density network access and high-speed data transmission. The body size is 442 × 420 × 43.6mm, with a weight of 7.8kg and a working temperature range of 0-40 ℃, suitable for standard computer room environment requirements. Support stacking, VLAN, QoS traffic management, IGMP Snooping multicast, and 802.1x authentication to meet enterprise level network management requirements
Pictures
Specification
|
nstallation Type
|
Cabinet Installation
|
|
Depth[mm]
|
420.0 mm
|
|
Chassis height[U]
|
1
|
|
Wide[mm]
|
442.0 mm
|
|
Height[mm]
|
43.6 mm
|
|
Weight with packaging[kg(lb)]
|
8.95 kg
|
|
Weight without packaging[kg(lb)]
|
5.7 kg (excluding optical modules, power modules, and fan modules)
|
|
Maximum power consumption[W]
|
384 W
|
|
Typical power consumption[W]
|
226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
261 W (100% throughput, short-distance optical modules on all ports, dual power modules) |
|
Static power consumption[W]
|
167 W
|
|
Heat dissipation mode
|
Air cooling
|
|
Maximum heat dissipation[BTU/hour]
|
1310 BTU/hour
|
|
Typical heat dissipation[BTU/hour]
|
771 BTU/hour (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
891 BTU/hour (100% throughput, short-distance optical modules on all ports, dual power modules) |
|
Static heat dissipation[BTU/hour]
|
570 BTU/hour
|
|
Power supply mode
|
DC pluggable,AC pluggable,HVDC pluggable
|
|
Rated input voltage[V]
|
Rated AC input voltage range: 100 V AC to 240 V AC; 50/60 Hz
Rated –48 V DC input voltage range: –48 V DC to –60 V DC Rated input voltage range for 600 W AC & 240 V DC: 240 V DC Rated input voltage range for 1200 W HVDC: 240 V DC to 380 V DC |
|
Input voltage range[V]
|
Maximum AC input voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz
Maximum –48 V DC input voltage range: –38.4 V DC to –72 V DC Maximum input voltage range for 600 W AC & 240 V DC: 190 V DC to 290 V DC Maximum input voltage range for 1200 W HVDC: 190 V DC to 400 V DC |
|
Maximum input current[A]
|
600 W AC&240 V DC power module (PAC600S12 series):
- 8 A (100 V AC to 240 V AC) - 4 A (240 V DC) 1000 W DC power module (PDC1000S12 series): 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A |
|
Rated output power[W]
|
600 W (AC&240 V HVDC)
1000 W (–48 V DC) 1200 W (380 V HVDC) |
|
Memory
|
DRAM: 4 GB
|
|
NOR Flash
|
64 MB
|
|
NAND Flash
|
4 GB
|
|
USB
|
Supported
|
|
Console port
|
RJ45
|
|
Downlink Service interface
|
48*25GE SFP28 (Note: 1. 25GE ports can be configured to work at 10 Gbit/s or 1 Gbit/s. Every four downlink 25GE ports form a group, and can be configured to work at 10 Gbit/s or 1 Gbit/s through the command; 2. 10GE LRM/80KM linear optical modules are not supported; 3. 1 m 25GE copper cables and 1 m/3 m/5 m 10GE copper cables are supported, and auto-negotiation of copper cables is not supported; 4. 25GE copper cables can only be used on stack ports and M-LAG peer-link ports.)
|
|
Uplink Service interface
|
6*100GE QSFP28
Note: 1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100GE QSFP28 port cannot be split into 4 x 25GE or 4 x 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack ports and M-LAG peer-link ports. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state. |
|
Service port supporting the stack function
|
25GE optical ports, and 100GE optical ports
|
|
RTC
|
Supported
|
|
Switching capacity[bps,bit/s]
|
For more details, see the datasheet/brochure or contact product sales personnel.
You can obtain the datasheet/brochure from the following link: |
|
Redundant fans
|
The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
|
|
Redundant power supply
|
1+1 backup
|
|
Number of power modules
|
2
|
|
Power supply surge protection
|
AC: 6 kV in common mode and 6 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
|
Types of fans
|
Pluggable
|
|
Number of fan modules
|
4
|
|
Airflow direction
|
Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
|
|
Storage temperature[°C(°F)]
|
–40°C to +70°C (–40°F to +158°F)
|
|
Long-term operating temperature[°C(°F)]
|
0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage relative humidity[RH]
|
5% RH to 95% RH, non-condensing
|
|
Long-term operating relative humidity[RH]
|
5% RH to 95% RH, non-condensing
|
|
Storage altitude[m(ft.)]
|
≤ 5000 m (16404 ft.)
|
|
Long-term operating altitude[m(ft.)]
|
≤ 5000 m (16404 ft.)
|
|
MTBF[year]
|
47.81 years
|
|
MTTR[hour]
|
1.95 hours
|
|
Noise at high temperature (40°C, sound pressure)
|
- Front-to-back airflow: < 75 dB(A)
- Back-to-front airflow: < 74 dB(A) |
|
Noise at normal temperature (27°C, sound pressure)
|
- Front-to-back airflow: < 58 dB(A)
- Back-to-front airflow: < 57 dB(A) |
|
Availability
|
0.9999962836
|
