AR6710-H4T4X2Y7 02355VGU Assembly Chassis Enterprise Routers
AR6710- H4T4X2Y7 02355VGU Assembly Chassis Enterprise Routers
Description
The industry's first enterprise-class Access Routers (ARs) designed for a Software-Defined Wide-Area Network (SD-WAN) solution, the NetEngine AR6700 series enterprise routers uses a multi-core processor and non-blocking switching architecture, providing a forwarding performance that's three times the industry average.
Well suited to coping with uplink traffic surges and promoting diversified service development, the NetEngine AR6700 series is widely deployed at the egress of medium and small-sized campus networks and at the headquarters of enterprises.

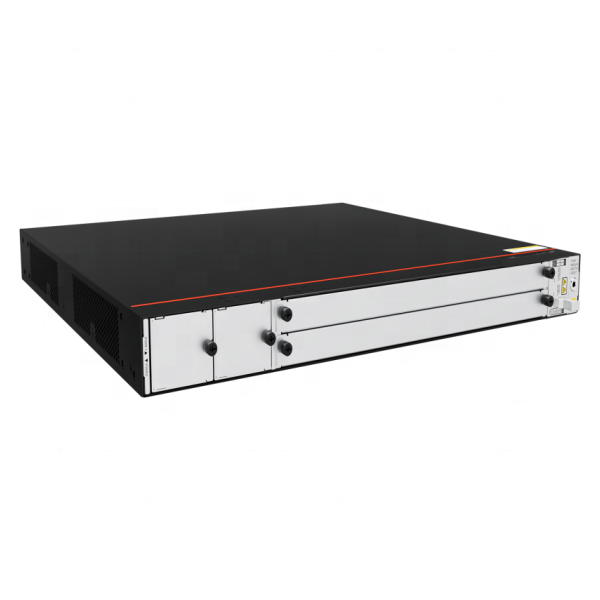

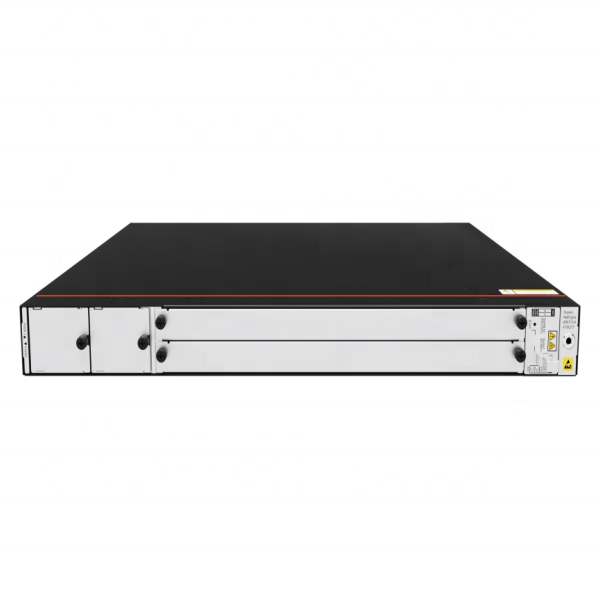

Pictures
Specification
| Item | Specification |
|---|---|
| Installation type | Rack |
| Chassis height [U] | 1 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 190 mm x 590 mm x 780 mm (7.48 in. x 23.23 in. x 30.71 in.) |
| Weight with packaging [kg(lb)] | 11.26 kg (24.82 lb) |
| Weight without packaging [kg(lb)] | 5.8 kg (12.79 lb) |
| Number of service board slots | 7 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 6/6 |
| WSIC slots (default/maximum) | 1/4 |
| XSIC slots (default/maximum) | 0/2 |
| Redundant MPUs | Supported |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 177.04 years |
| MTTR [hours] | 2 hours |
| Availability | 0.999998710 |
| Typical power consumption [W] | 12.6 W |
| Maximum power consumption [W] | 25.2 W |
| Power supply mode |
|
| Number of power modules | 2 |
| Rated input voltage [V] |
Rated AC input voltage: 100 V to 240 V, 50 Hz or 60 Hz Rated DC input voltage: –48 V DC to –60 V DC |
| Input voltage range [V] |
Maximum AC input voltage: 90 V to 264 V, 47 Hz to 63 Hz Maximum DC input voltage: –38.4 V DC to –72 V DC |
| Maximum input current [A] | 5 A |
| Maximum output power [W] |
AC: 300 W DC: 260 W |
| Redundant power supply |
|
| Types of fans | Pluggable |
| Number of fan modules | 2 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 54.3 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
