AirEngine 5762-12 AirEngine 5762-10 50086104 50084987 Wireless AP Wifi 6 Indoor Access Point
AirEngine 5762-12 AirEngine 5762-10 50086104 50084987 Wireless AP Wifi 6 Indoor Access Point
Description
AirEngine 5762-12 is a high-performance, economical indoor AP released by Huawei that supports Wi Fi 6 (802.11ax) standards. It features a ceiling/wall mounted disc shape (diameter 180mm, thickness 35mm), supports 2.4GHz (2x2) and 5GHz (2x2) dual frequency, and has a total speed of 2.975Gbps. Its biggest feature is its compact size, flexible deployment, and built-in Huawei exclusive smart antenna technology, which is suitable for indoor coverage scenarios such as small and medium-sized enterprise offices, hospitals, cafes, and general education classrooms.
AirEngine 5762-10 and 5762-12 are APs of the same series and performance, both supporting Wi Fi 6 dual band 2x2, with a total speed of 2.975Gbps and a built-in smart antenna. The main difference between it and 5762-12 lies in its appearance details, weight, and some interfaces (such as whether it supports Bluetooth). Its positioning is more inclined towards SOHO offices, small and medium-sized hospitals, economy chain hotels, and other scenarios with higher requirements for cost and aesthetics

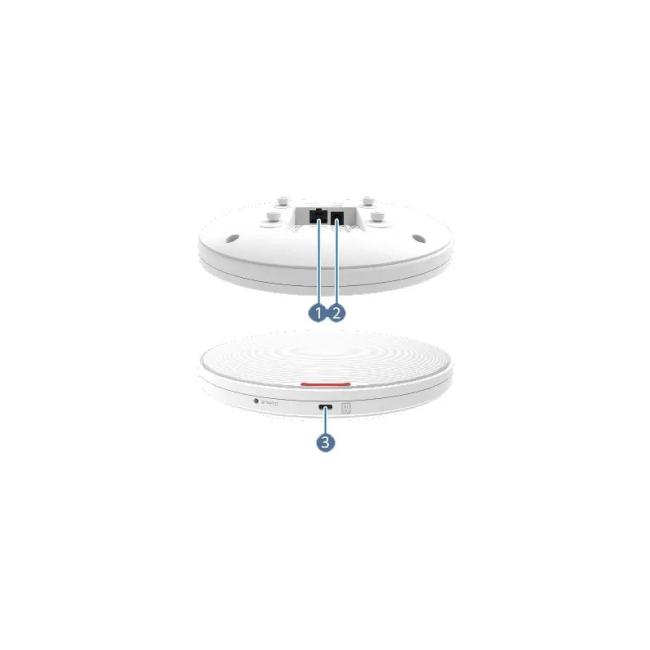

Pictures
Specification
| Comparison item | AirEngine 5762-12 (Ceiling Economy) | AirEngine 5762-10 (economy version) |
| Product positioning | Ceiling coverage scenarios for small and medium-sized enterprises, hospitals, cafes, etc | SOHO office, small and medium-sized hospitals, hotels, and other installation/wall mounted scenes |
| wireless protocol | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) |
| Maximum speed | 2.975 Gbps | 2.975 Gbps |
| space flow | 4 pieces (2.4GHz: 2x2:2, 5GHz: 2x2:2) | 4 pieces (2.4GHz: 2x2:2, 5GHz: 2x2:2) |
| Antenna type | Built in smart antenna | Built in smart antenna |
| Maximum number of users | ≤ 256 (official recommendation) | ≤ 256 (official recommendation) |
| network interface | 1x GE electrical port (PoE input) | 1x GE electrical port (PoE input) |
| power supply method | 802.3af PoE power supply DC 12V | 802.3af PoE power supply DC 12V |
| Maximum Power Consumption | 11 W | 11.2 W |
| Physical specifications (diameter x height) | 180mm × 35mm | 180mm × 35mm |
| Equipment weight | 0.515 kg (excluding packaging materials) | 0.46 kg (excluding packaging materials) |
| Operating Temperature | -10 ° C to 50 ° C | -10 ° C to 50 ° C |
| Bluetooth BLE | Support (Bluetooth 5.2) | not supported |
| VIP user bandwidth reservation | Support (based on slicing technology) | Not explicitly mentioned |
| cloud management | support | support |
| 802.3af power supply instructions | All functions are unrestricted | All functions are unrestricted |
