NE40E-X16A Enterprise router Netengine 40E series Access WAN Core Router with 100GE/40GE port
NE40E-X16A Enterprise router Netengine 40E series Access WAN Core Router with 100GE/40GE port
Description

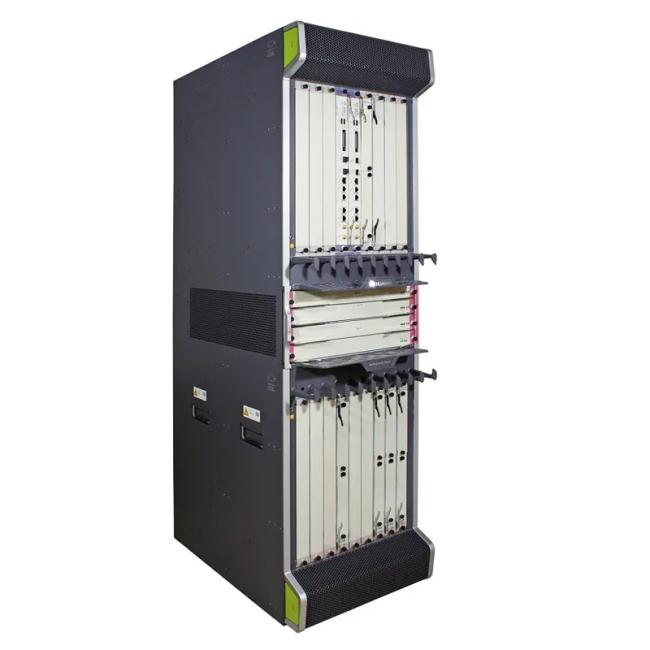

NE40E-X16A is the flagship high-end full-service router of Huawei NetEngine 40E series based on 2T platform. It adopts a distributed architecture of 16 service slots and 4 switching network boards, with a total height of 22U, providing dual master control and full redundancy of network boards. Positioned as the core of large-scale metropolitan area networks, national/provincial government and enterprise wide area cores, 5G backbone carriers, large-scale IDC exports, and cloud network interconnection hubs, with ultra-high performance, ultra large expansion, and ultimate reliability, it has become the core first choice for ultra large scale cloud network integration and dedicated line carriers
Pictures
Specification
| project | Specifications |
| model | NE40E-X16A (2T platform, full performance flagship) |
| Slot configuration | 2 x Main Control Board (MPU, 1+1 redundancy)+16 x Business Circuit Board (LPU)+4 x Switching Network Board (SFU, 3+1 redundancy) |
| switching capacity | 1623.27 Tbps Huawei Enterprise Business |
| Packet forwarding rate | 371404.8 Mpps Huawei Enterprise Business |
| Maximum bandwidth per slot | 2 Tbps (supporting 400GE/100GE high-density line cards) Huawei Enterprise Business |
| Typical port capability | Single LPU supports 8 × 400GE/32 × 100GE/48 × 10GE; the maximum size of the whole machine is 512 × 100GE |
| Routing table capacity | IPv4 FIB:16M； IPv6 FIB: 8M (depending on the main control model) |
| Form and Size | 22U rack mounted, 442 mm x 710 mm x 980 mm (width x depth x height) |
| Power supply and power consumption | Dual redundant power supply (AC/DC optional), hot swappable; Fully equipped with approximately 6500 W |
| reliability | Full redundant residual heat plugging and unplugging of main control, network board, power supply, and fan; Fault switching<50 ms (BFD/FRR) |
