AC6805 02351YUA 02354FRM Wireless Ap Controller 2*40GE QSFP+ Ports
AC6805 02351YUA 02354FRM 2*40GE QSFP+ Ports Wireless Access Controller
Description

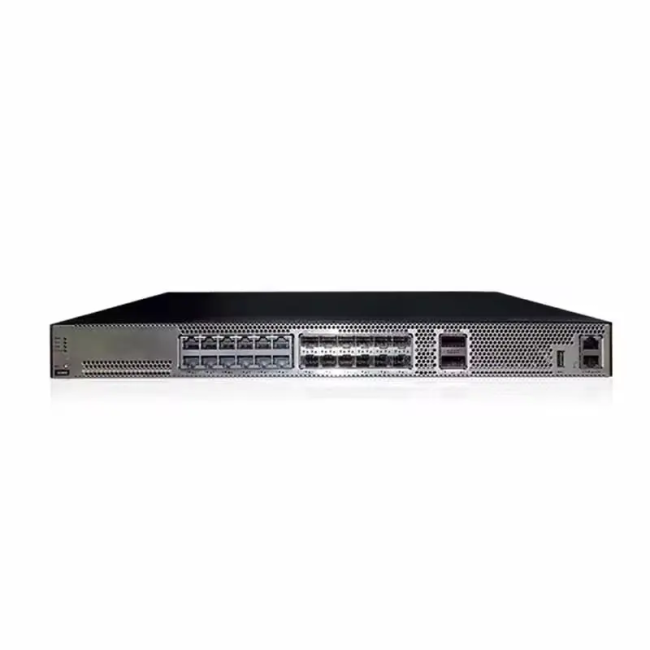

Huawei AC6805 is a wireless access controller (AC) designed for large- and medium-sized enterprise campuses, enterprise branches, and education campuses. In combination with Huawei access points (APs), this AC can be used to construct large- and medium-sized campus networks, enterprise office networks, wireless Metropolitan Area Networks (MANs), and hotspot coverage networks.
- Outstanding capacity and performance: The AC has twelve GE ports, twelve 10GE ports, and two 40GE ports, and provides up to 120 Gbit/s forwarding capability. The AC6805 can manage a maximum of 6144 APs, which increases to 10240 APs from V200R023C00SPC100.
- Great flexibility: The AC supports direct and tunnel data forwarding modes, and provides flexible user permission management with user- or role-based access control.
- Abundant O&M methods: The AC allows for various network O&M methods, including iMaster NeoSight, web system, and CLI.
Pictures
Specification
| Item | Specification |
|---|---|
| Installation Type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic: 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum: 43.6 mm x 442 mm x 444 mm (1.72 in. x 17.40 in. x 17.48 in.) |
| Weight without packaging [kg(lb)] | 6.39 kg (14.09 lb) |
| Storage | M.2 memory card 32 GB |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Maximum power consumption [W] | 202.5 W |
| Maximum heat dissipation [BTU/hour] | 690.89 BTU/hour |
| Power supply mode | Pluggable power supply |
| Service port surge protection | 6 kV in common mode |
| Types of fans | Pluggable |
| Number of fan modules | 4 |
| Maximum number of physical ports on the entire device |
2*40G (QSFP+)+12*10GE (SFP+)+12*GE One 40G interface and four 10G interfaces are mutually exclusive. |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Noise at normal temperature (acoustic power) [dB(A)] | ≤ 55 dBA |
| Ground | Ground |
| USB | Standard USB 3.0 port (host type A) x 1 |
| MTBF [year] | 50 year |
| MTTR [hour] | 2 hour |
