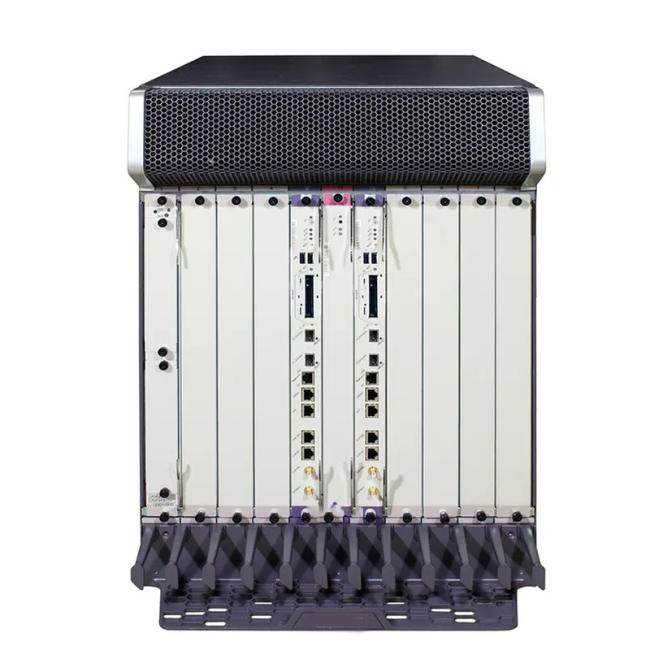

NE40E-X3 NE40E-X8 NE40E-X16 Core Router Netengine 40E Enterprise Universal Service 100G WAN Router
NE40E-X3 NE40E-X8 NE40E-X16 Core Router Netengine 40E Enterprise Universal Service 100G WAN Router
Description
All adopt a distributed forwarding+centralized switching architecture, supporting seamless upgrades, hot patching, and hot plugging of NSF/ISSU/ISSU+NSF.
Main control board (MPU): 2 slots, 1+1 redundancy, responsible for management, protocol, and control plane.
Exchange network board (SFU):
X3:2 slots, 1+1 redundancy
X8:4 slots, N+M redundancy
X16:8 slots, N+M redundancy
Business board (LPU/FIC):
X3: 3 slots
X8:8 slot
X16:16 slot
Support 10GE/25GE/40GE/100GE/400GE interface boards (iterate with version and board type).
2. Forwarding performance (typical value, varies with board type)
NE40E-X3: The overall forwarding capacity is approximately 12Tbps/24Tbps (depending on SFU and LPU)
NE40E-X8: The entire machine has a forwarding capacity of approximately 32Tbps/64Tbps
NE40E-X16: The entire machine has a forwarding capacity of approximately 64Tbps/128Tbps
A single slot can support high-density cards such as 100GE × 16/400GE × 4, meeting the requirements of high bandwidth interconnection.
Pictures
Specification
|
comparative dimension
|
NE40E-X3 / X3A
|
NE40E-X8 / X8A
|
NE40E-X16 / X16A
|
|
Product positioning
|
Compact full-service router
|
Medium sized full-service router
|
High end full-service core router
|
|
Typical application scenarios
|
Large enterprises/parks converge, small and medium-sized core
|
Large enterprise core, metropolitan area network convergence
|
Core of backbone network for operators/large enterprises
|
|
performance metrics
|
Switching capacity: 75.94 Tbps [X3]/257.02 Tbps [X3A]
|
Switching capacity: 1.44 Tbps [X8]/811.64 Tbps [X8A]
|
Switching capacity: 2.56 Tbps [X16]/1623.27 Tbps [X16A]
|
|
|
Forwarding performance: 9000 Mpps [X3]/57139.2 Mpps [X3A]
|
Forwarding performance: 800 Mpps [X8]/185702.4 Mpps [X8A]
|
Forwarding performance: 1600 Mpps [X16]/371404.8 Mpps [X16A]
|
|
hardware configuration
|
3 business board slots, 2 main control board slots
|
8 business board slots, 2 main control board slots, and 4 switching network board slots
|
16 business board slots, 2 main control board slots, and 4 switching network board slots
|
|
physical properties
|
Size: 6U, weight approximately 74.7kg (fully equipped)
|
Size: 21U, weight approximately 186kg (fully equipped)
|
Size: 40U, weight approximately 356kg (fully equipped)
|
|
|
Power consumption: approximately 1120W (200G configuration)
|
Power consumption: approximately 4770W (480G configuration)
|
Power consumption: approximately 9040W (480G configuration)
|
