AirEngine 5761R-11E 02354DKT Wireless Wi-Fi 6 Outdoor Access Point With External Antenna
AirEngine 5761R-11E 02354DKT Wireless Wi-Fi 6 Outdoor Access Point With External Antenna
Description
The AirEngine 5761R-11E (part code 02354DKT) is Huawei's entry-level Wi-Fi 6 (802.11ax) outdoor wireless access point (AP) in the AirEngine series. It features dual-mode RF switching, flexible external antenna adaptation, and IP68 industrial-grade protection. Utilizing a 2×2 dual-RF architecture, it supports both 2.4G+5G and dual 5G operating modes, achieving a peak speed of 2.4Gbps. Suitable for low-to-medium density outdoor wireless coverage scenarios such as parks, pedestrian streets, small to medium-sized squares, and rural areas, it balances deployment flexibility, environmental adaptability, and high cost-effectiveness, making it an excellent choice for basic outdoor network deployments.

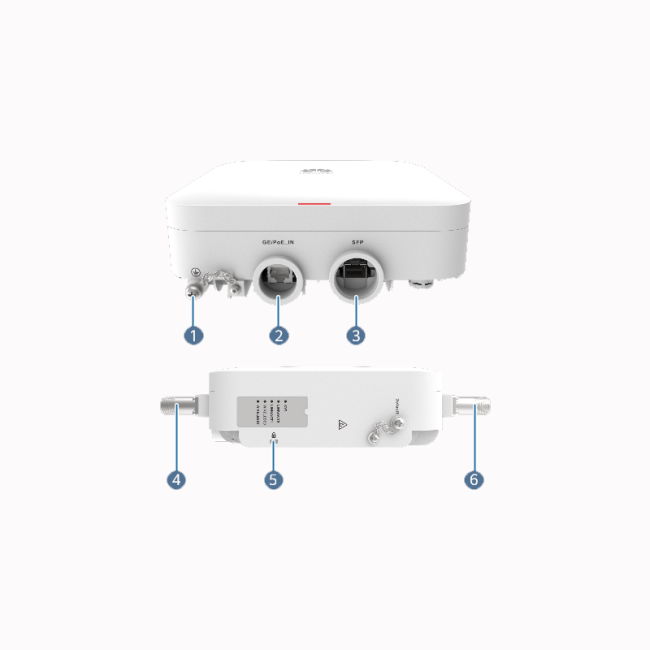

Pictures
Specification
| parameter category | specification |
| Product Model | AirEngine 5761R-11E |
| wireless protocol | IEEE 802.11a/b/g/n/ac/ac wave2/ax(Wi-Fi 6) |
| maximum speed | 2.4 Gbps |
| working mode | Supports flexible switching between two modes: |
| Mode 1:2.4 GHz (2x2)+5 GHz (2x2) | |
| Mode 2: 5 GHz (2x2)+5 GHz (2x2) (Dual 5GHz Mode) | |
| MIMO spatial stream | 2.4 GHz: 2 × 2:2, 5 GHz: 2 × 2:2 (according to mode configuration) |
| Antenna type | External antenna (different from the internal antenna of 5761R-11) |
| antenna gain | 2.4 GHz: 10 dBi,5 GHz: 11 dBi |
| interface type | 1 x GE electrical port+1 x GE SFP optical port |
| power supply method | PoE power supply: meets the 802.3at/af standard |
| Maximum Power Consumption | 19.6W (all functions are not restricted when powered by 802.3at) |
| Maximum number of users | ≤1024 |
| Protection level | IP68 (dustproof and waterproof) |
| Lightning protection level | Ethernet interface common mode 6kA lightning protection, antenna feeder 5kA lightning protection |
| Operating Temperature | -40°C ～ +65°C |
| Operating Humidity | 0% RH ～ 100% RH |
| Installation method | Installation of holding poles and wall hanging |
| Dimensions (width x depth x height) | 200 mm × 200 mm × 70 mm |
| weight | About 1.91 kg |
| reference price | The market reference price is about 24000 yuan |
| Bluetooth | Built in Bluetooth 5.2, supports Bluetooth serial port operation and positioning |
| working mode | FIT/FAT/Cloud Management |
