AirEngine 6776I-X6TH 50087137 15.1Gbps Wireless Wi-Fi 6 Outdoor Access Point
AirEngine 6776I-X6TH 50087137 15.1Gbps Wireless Wi-Fi 6 Outdoor Access Point
Description
The Huawei AirEngine 6776I-X6TH is a high-performance outdoor access point supporting the Wi-Fi 7 (802.11be) standard. It features eight spatial streams and simultaneous operation of three radio frequencies (2.4GHz, 5GHz, and 6GHz), achieving an air interface speed of up to 15.1Gbps. The new Wi-Fi 7 technology significantly enhances the user experience of wireless networks, while also providing excellent outdoor coverage and robust IP68 waterproof, dustproof, and lightning protection capabilities, making it suitable for high-density venues, playgrounds, and other similar coverage scenarios.
The product's biggest highlight is its support for the 6GHz band, with flexible switching capabilities—it can operate in a tri-band mode (2.4GHz + 5GHz + 6GHz) or switch to a 2.4GHz + dual 5GHz mode to adapt to different regional regulations and interference environments.

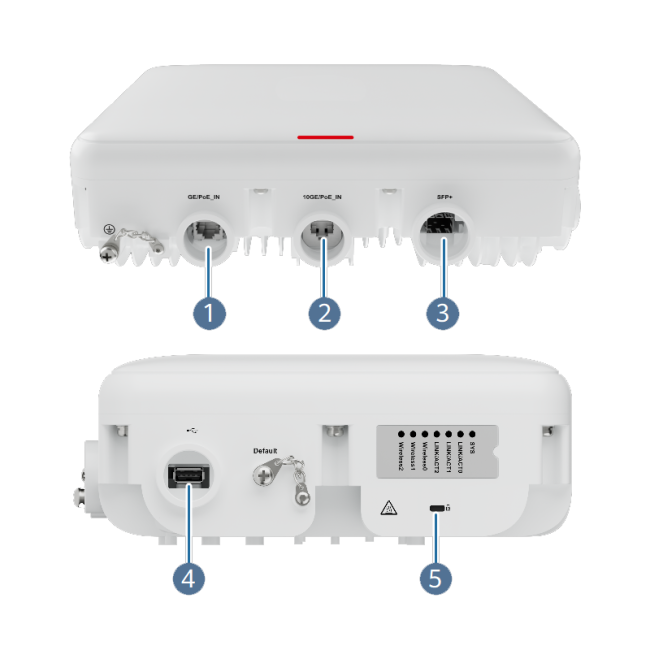

Pictures
Specification
| parameter category | Detailed Specifications |
| Product Model | AirEngine 6776I-X6TH |
| wireless protocol | IEEE 802.11a/b/g/n/ac/ac wave2/ax/be(Wi-Fi 7) |
| maximum speed | 15.1 Gbps |
| working mode | Supports flexible switching between two modes: |
| Mode 1: 2.4GHz (2x2)+5GHz (2x2)+6GHz (4x4) - rate of 15.1Gbps | |
| Mode 2: 2.4GHz (2x2)+5GHz-H (2x2)+5GHz-L (4x4) - rate of 9.33Gbps | |
| MIMO spatial stream | 2.4GHz: 2 × 2:2, 5GHz: 2 × 2:2, 6GHz: 4 × 4:4 (8 spatial streams for the entire machine) |
| Antenna type | Built in directional antenna |
| antenna gain | 2.4 GHz: 10 dBi,5 GHz: 11 dBi,6 GHz: 12 dBi |
| interface type | 1 × 10GE/PoE-IN electrical port (RJ45, supporting 100M/1000M/2.5G/5G/10G adaptive) |
| 1 × GE/PoE-IN electrical port (RJ45, supporting 10M/100M/1000M adaptive) | |
| 1 x SFP+optical port (supporting 1G/2.5G/10G adaptive) | |
| 1 x USB 2.0 Type A interface | |
| power supply method | Dual PoE hot backup power supply: meets the 802.3bt/at Ethernet power supply standard |
| Maximum Power Consumption | 33.1W (excluding USB) |
| Maximum number of users | ≤1800 |
| Protection level | IP68 (dustproof and waterproof) |
| Lightning protection level | Ethernet interface common mode 6KA/6KV enhanced lightning protection design |
| Operating Temperature | -40°C ～ +70°C |
| Operating Humidity | 0% RH ～ 100% RH |
| Installation method | Installation of holding poles and wall hanging |
| Dimensions (width x depth x height) | 280 mm × 220 mm × 85 mm |
| weight | 3.28 kg (excluding packaging materials) |
| Bluetooth | Built in Bluetooth 5.2, supports Bluetooth serial port operation and positioning |
| working mode | FIT/FAT/Cloud Management |
| NAND flash memory | 512 MB |
