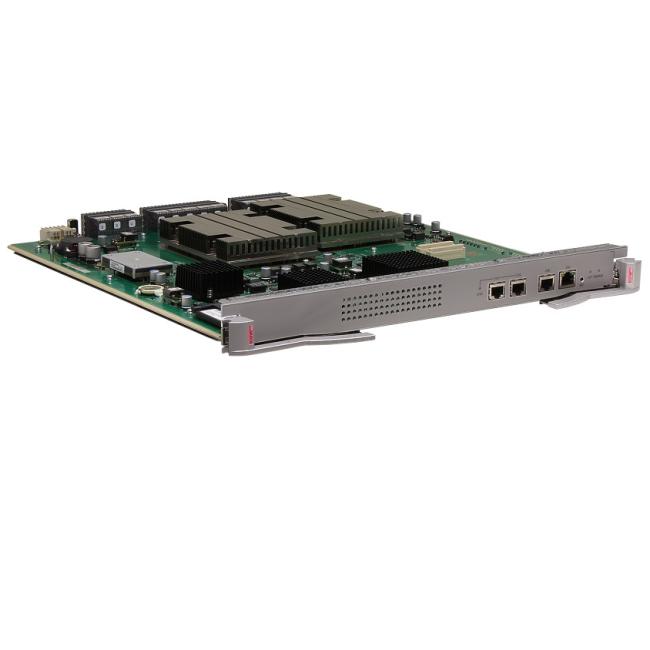

ES1D2SRUE000 ES1D2SRUH000 S7700 Series S7706/S7706 PoE/S7712 Main Control Unit H
ES0D00SRUA00 ES0D00SRUB00 03030MQS 03030MQR S7706/S7712 Main Control Unit
ES1D2SRUE000 ES1D2SRUH000 03031YLV 03031FSL S7700 Series S7706/S7706 PoE/S7712 Main Control Unit H
Description
ES1D2SRUE000
Ports: 4×10GE SFP+ Stacking Daughter Cards
Interface Type: SFP+
Speed: 10G line speed per port
Applications: CSS cluster stacking, 10GE uplink, interconnect expansion
ES1D2SRUH000
Ports: 4×25GE SFP28 Stacking Daughter Cards
Interface Type: SFP28
Speed: 25G line speed per port, backward compatible with 10GE
Applications: 25G/10G uplink, CSS cluster stacking, data center horizontal interconnection
Pictures
Specification
| comparative dimension | ES1D2SRUE000 (Type E) | ES1D2SRUH000 (H-type) |
| Product positioning | Main control processing unit E (standard type) | Main control processing unit H (enhanced) |
| memory | 4 GB | 4 GB |
| storage | 2 GB eUSB card | 64 MB Flash+2 GB eUSB card |
| Single slot switching capability | 192 Gbit/s (unidirectional) | 384 Gbit/s (unidirectional) |
| Maximum Power Consumption | 105.7 W | 183 W |
| weight | 3.05 kg | 3.46 kg |
| Dimensions (width x depth x height) | 397.2mm × 430.4mm × 35.1mm | 397.2mm × 430.4mm × 35.1mm |
| Sub card slot | Support | Support |
| redundant backup | Support (1+1 hot backup) | Support (1+1 hot backup) |
| hot-swapping | Support | Support |
| Applicable machine frame | S7706/S7706 PoE/S7712 | S7706/S7706 PoE/S7712 |
| Minimum software version | Need to search for the latest documents | S7706/S7712: V200R008C00 |
| S7706 PoE: V200R013C00 |
