High Precision CNC Turning Parts with ±0.002~0.005mm Tolerance for Hydraulic Systems
Price:
0.1~5USD
MOQ:
I PC
Delivery Time:
7~35 working days
Brand:
IMission
Product Description

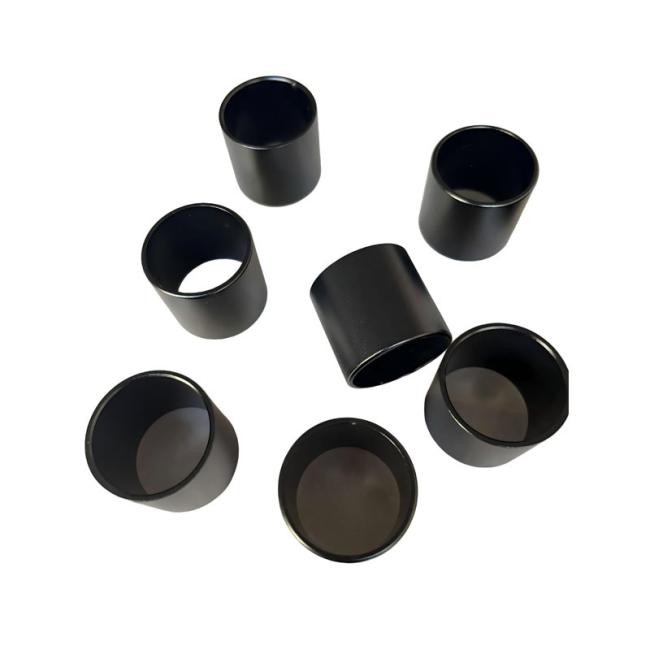

Custom CNC Lathed Metal Parts for Hydraulic Systems
High-precision CNC turning components manufactured with Swiss-type and multi-axis turning centers for industries requiring tight tolerances, complex geometries, and exceptional surface finishes. Our capabilities encompass the full spectrum of turned part manufacturing from prototype to high-volume production.
Technical Specifications of CNC Turning Parts
| Product Name | CNC Turning Parts |
| Material Available | Steel |
| Processing | CNC Turning |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Turning Parts Characteristics
CNC turning parts feature high precision and excellent consistency, capable of machining metal or non-metal components with diverse complex structures such as shafts and discs. Controlled precisely by pre-set programs, the machining process enables one-time forming of intricate details like complex threads, chamfers and grooves, making these parts well-suited for stringent application requirements in machinery manufacturing, automotive, aerospace and other industries.
Quality Assurance & Inspection
Inspection Equipment
- Multi-Sensor CMMs: 3D measurement with 0.001mm accuracy
- Optical Comparators: Profile projection with 20× to 100× magnification
- Surface Roughness Testers: Portable and benchtop Ra/Rz measurement
- Hardness Testers: Rockwell, Brinell, Vickers, and micro-hardness
- Thread Gauges: Complete sets to ISO/ANSI standards
- Digital Calipers/Micrometers: 0.001mm resolution, calibrated regularly
- Roundness Testers: Concentricity and cylindricity measurement
- Force Measurement: Torque testing, spring constant verification
Quality Certifications & Processes
- ISO 9001:2015 certified quality management system
- First Article Inspection (FAIR): AS9102/PPAP documentation available
- Statistical Process Control (SPC): Real-time monitoring of critical dimensions
- Material Traceability: Mill test certificates, heat/lot number tracking
- Calibration Program: All inspection equipment calibrated to NIST standards
Target Industries & Applications
Aerospace & Defense
Components: Structural frames, brackets, housings, turbine components, fittings
Materials: Aluminum (2024, 7075), titanium, Inconel, high-strength steels
Standards: AS9100, NADCAP (machining), MIL specifications, customer-specific
Critical Requirements: Fatigue resistance, weight optimization, documentation, traceability
Medical & Life Sciences
Components: Surgical instruments, implantable devices, diagnostic equipment, prosthetics
Materials: 316L stainless, titanium (Grade 5, 23), PEEK, cobalt-chrome
Requirements: Biocompatibility, cleanroom manufacturing, sterilization compatibility
Regulations: FDA compliance, ISO 13485, USP Class VI testing where applicable
Automotive & Motorsports
Components: Engine parts, transmission housings, suspension components, brackets
Materials: Aluminum, various steels, brass, magnesium (racing)
Production Volumes: Prototype to high-volume (10,000+ parts)
Special Capabilities: JIT delivery, kanban systems, production line support
Electronics & Semiconductor
Components: Enclosures, heat sinks, wafer handling, test fixtures, connector bodies
Materials: Aluminum, copper, engineering plastics, composites
Precision Requirements: Often ±0.005mm or better, micron-level flatness
Cleanliness: ESD-safe materials, particulate control, specialized cleaning
Industrial Machinery & Automation
Components: Machine frames, brackets, guides, robotic components, fixture
Materials: Carbon steel, aluminum, stainless, cast iron
Requirements: Wear resistance, dimensional stability, rigidity
Capabilities: Large part machining, weldment preparation, assembly interfaces
Document Control: Revision-controlled drawings and specifications
Precision Measurement of CNC Parts
Standard Quotation & Order Process
- RFQ Submission: Provide drawings (PDF/DWG), 3D models (STEP/IGES/SLDPRT), specifications
- Technical Review: Engineering assessment, DFM analysis, process planning (24-48 hour response)
- Quotation: Detailed pricing with breakdown (material, setup, machining, finishing)
- Prototype Phase (if required): Sample production with full inspection report
- Production Approval: Process validation, inspection plan agreement
- Manufacturing: Scheduled production with milestone updates (weekly/daily)
- Final Inspection: Complete FAIR or dimensional report before shipping
- Delivery: Appropriate packaging, shipping with tracking, customs documentation
Packaging, Shipping & Logistics
Packaging Solutions
- Standard Packaging: Poly bags with desiccant in partitioned cartons
- ESD-Sensitive: Antistatic bags, conductive foam, static-dissipative containers
- Cleanroom Packaging: Double-bagged, cleanroom compatible materials
- VCI Protection: Volatile corrosion inhibitor papers/films for ferrous metals
- Custom Fixturing: CNC-machured foam inserts, custom racks, reusable containers
- International Shipping: Export-rated crates, climate-controlled options available
Logistics & Supply Chain
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Export Documentation: Commercial invoice, packing list, certificate of origin
- Compliance Documentation: Material certifications, RoHS/REACH declarations
- Inventory Management: Consignment stock, bonded warehousing, kanban systems
- Just-In-Time Delivery: Scheduled deliveries aligned with production schedules
