High-Accuracy CNC Milling Parts with Blue Oxidation Surface Finish and ISO9001 Certification
Price:
0.1~5USD
MOQ:
I PC
Delivery Time:
7~35 working days
Brand:
IMission
Product Description

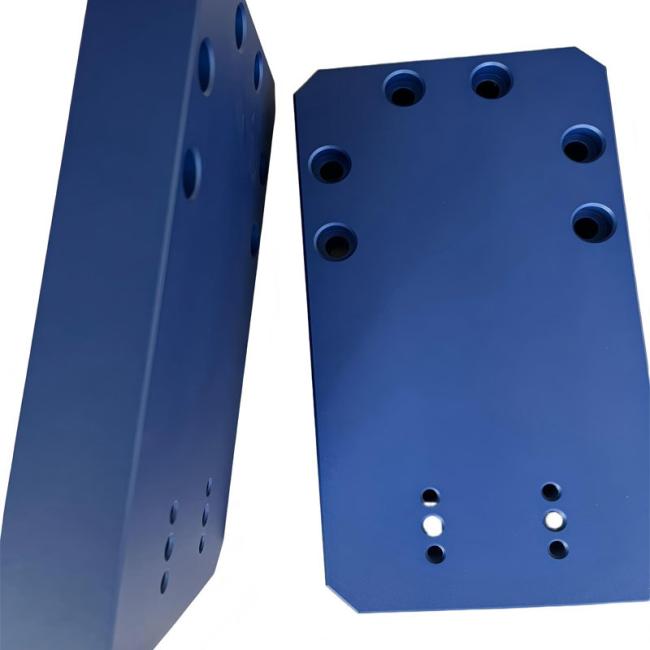

High-Accuracy CNC Milled Bracket with Blue Oxidation Surface Finish
Comprehensive precision CNC milling services utilizing advanced multi-axis machining centers to produce complex components with exceptional dimensional accuracy and superior surface finishes. Our milling capabilities support industries ranging from aerospace and medical to electronics and industrial machinery with both prototyping and high-volume production.
Specifications of CNC Milling Parts
| Product Name | CNC Milling Parts |
| Material Available | Aluminum |
| Surface Treatment | Blue Oxidation |
| Processing | CNC Milling |
| Tolerance | +/-0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
Key Features of CNC Milliing Parts
- Exceptional Precision & Tolerance Control: Achieves tight dimensional tolerances down to ±0.005mm with consistent geometries across batch production, eliminating human-induced errors.
- Versatile Material Compatibility: Suitable for processing aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials.
- Complex Geometry Machining Capability: Capable of creating intricate shapes including 3D contours, deep pockets, internal threads, and custom cavities.
Manufacturing Capabilities & Equipment Specifications
CNC Milling Equipment Portfolio
| Machine Type | Axis Configuration | Table Size (mm) | Positioning Accuracy | Repeatability | Spindle Power/Speed | Unique Capabilities |
|---|---|---|---|---|---|---|
| 3-Axis Vertical | X, Y, Z | 500×400 to 1500×800 | ±0.005mm | ±0.003mm | 7.5-22kW, 8,000-24,000 RPM | Heavy material removal, deep cavities |
| 4-Axis with Rotary | X, Y, Z, A | 400×400 to 800×600 | ±0.008mm | ±0.005mm | 10-15kW, 12,000-20,000 RPM | Continuous indexing, cylindrical features |
| 5-Axis Simultaneous | X, Y, Z, A, B/C | 500×500 to 1200×800 | ±0.01mm | ±0.006mm | 12-30kW, 10,000-30,000 RPM | Complex 3D contours, undercuts, compound angles |
| 5-Axis Gantry | X, Y, Z, A, C | 2000×1000 to 5000×2500 | ±0.015mm | ±0.008mm | 18-40kW, 6,000-15,000 RPM | Large part machining, molds, aerospace structures |
| High-Speed Machining | 3/5-Axis | 400×400 to 800×600 | ±0.005mm | ±0.002mm | 15-25kW, 20,000-60,000 RPM | Aluminum, plastics, graphite, fine details |
Technical Parameters & Tolerances
Standard Machining Tolerances: ±0.025mm to ±0.10mm
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
- As-machined: Ra 1.6μm to Ra 3.2μm
- Fine machining: Ra 0.4μm to Ra 1.6μm
- Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
- Flatness/Straightness: 0.01mm per 100mm
- Parallelism/Perpendicularity: 0.015mm per 100mm
- True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
- Standard 5-axis: 800mm × 600mm × 500mm
- Gantry machines: 5000mm × 2500mm × 1500mm
- Weight capacity: Up to 10,000kg on largest machines
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
- As-machined: Ra 1.6μm to Ra 3.2μm
- Fine machining: Ra 0.4μm to Ra 1.6μm
- Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
- Flatness/Straightness: 0.01mm per 100mm
- Parallelism/Perpendicularity: 0.015mm per 100mm
- True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
- Standard 5-axis: 800mm × 600mm × 500mm
- Gantry machines: 5000mm × 2500mm × 1500mm
- Weight capacity: Up to 10,000kg on largest machines
Quality Assurance & Inspection
Inspection Equipment & Capabilities
CMM (Coordinate Measuring Machines): 3D measurement with 0.001mm accuracy, temperature controlled
Optical Comparators/Vision Systems: Non-contact measurement, 2D profile verification
Surface Roughness Testers: Contact and non-contact Ra, Rz, Rq measurements
Roundness/Form Testers: Cylindricity, concentricity, flatness verification
Hardness Testers: Rockwell, Brinell, Vickers, micro-hardness
Portable Arms: Articulated arms with laser scanner for large parts
Digital Height Gauges: Precision height measurement with 0.001mm resolution
Gauge Blocks & Calibrated Instruments: Full set to ISO 3650 standards
Force/Torque Measurement: For assembly validation, spring constant verification
Optical Comparators/Vision Systems: Non-contact measurement, 2D profile verification
Surface Roughness Testers: Contact and non-contact Ra, Rz, Rq measurements
Roundness/Form Testers: Cylindricity, concentricity, flatness verification
Hardness Testers: Rockwell, Brinell, Vickers, micro-hardness
Portable Arms: Articulated arms with laser scanner for large parts
Digital Height Gauges: Precision height measurement with 0.001mm resolution
Gauge Blocks & Calibrated Instruments: Full set to ISO 3650 standards
Force/Torque Measurement: For assembly validation, spring constant verification
Quality Management System
ISO 9001:2015 Certified: Full quality management system implementation
First Article Inspection: AS9102, PPAP, or custom FAIR documentation
Statistical Process Control: Real-time monitoring of critical characteristics
Material Certification: Mill test reports, material traceability to heat/lot
Calibration Program: All inspection equipment calibrated to NIST-traceable standards
Document Control: Revision-controlled drawings, specifications, procedures
Non-Conformance System: Documented containment, root cause analysis, corrective action
First Article Inspection: AS9102, PPAP, or custom FAIR documentation
Statistical Process Control: Real-time monitoring of critical characteristics
Material Certification: Mill test reports, material traceability to heat/lot
Calibration Program: All inspection equipment calibrated to NIST-traceable standards
Document Control: Revision-controlled drawings, specifications, procedures
Non-Conformance System: Documented containment, root cause analysis, corrective action
