ISO9001 Certified CNC Machining Parts with ±0.002~0.005mm Tolerance for Customized Precision CNC Components
Price:
0.1~5USD
MOQ:
I PC
Delivery Time:
7~35 working days
Brand:
IMission
Product Description

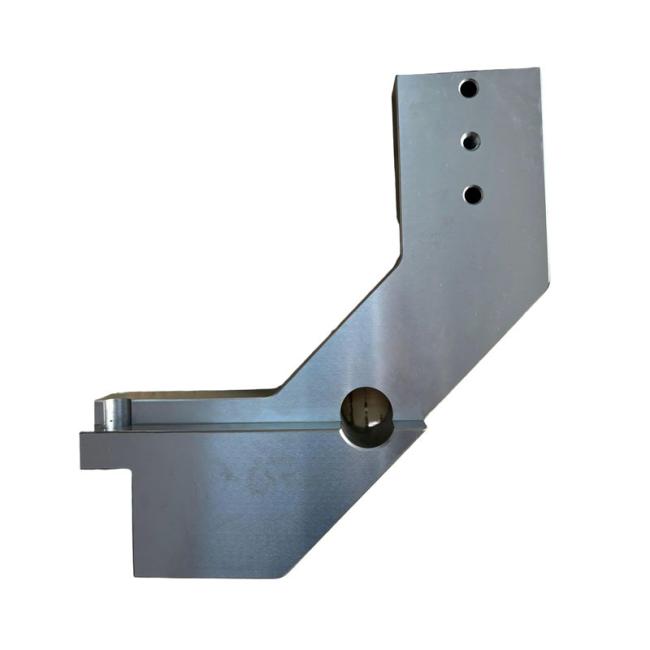

Steel CNC Turned Component and CNC Precision Ground Shaft
ISO 9001:2015 certified manufacturing facility specializing in high-precision custom hardware components through advanced CNC machining processes.
CNC Machining Parts Specifications
| Product Name | CNC Machining Parts |
| Material Available | Steel |
| Processing | CNC |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Machining Parts Key Features
CNC machining parts offer exceptional dimensional accuracy with tight tolerances, ranging from micro-components to large-scale industrial components. Manufactured via computer-controlled cutting tools, these parts ensure consistent quality across high-volume production runs and are compatible with various materials including metals, plastics, and composites.
Technical Specifications
Machining Parameters
Maximum Part Dimensions:
Turning: Ø300mm × 500mm length
Milling: 800mm × 600mm × 500mm (larger available upon request)
Turning: Ø300mm × 500mm length
Milling: 800mm × 600mm × 500mm (larger available upon request)
Production Volume: Prototype (1-50 pieces) to high-volume production (10,000+ units)
Lead Times:
Prototyping: 3-7 business days
Standard production: 10-20 business days
Expedited services available
Prototyping: 3-7 business days
Standard production: 10-20 business days
Expedited services available
Quality Assurance
Incoming Material Inspection: Certification verification, spectroscopy analysis
In-Process Control (IPQC): First article inspection, statistical process control
Final Inspection (FQC):
• CMM measurement (up to 0.001mm accuracy)
• Optical comparator for profile verification
• Surface roughness testing
• Hardness testing (Rockwell, Brinell, Vickers)
Documentation: Material certifications, full inspection reports, compliance certificates
In-Process Control (IPQC): First article inspection, statistical process control
Final Inspection (FQC):
• CMM measurement (up to 0.001mm accuracy)
• Optical comparator for profile verification
• Surface roughness testing
• Hardness testing (Rockwell, Brinell, Vickers)
Documentation: Material certifications, full inspection reports, compliance certificates
Target Industries & Applications
Industrial Automation & Robotics
Components: Linear guides, actuator housings, sensor mounts, robotic end-effectors
Value Proposition: Reduced downtime, improved repeatability, extended service life
Value Proposition: Reduced downtime, improved repeatability, extended service life
Medical & Healthcare Equipment
Components: Surgical instrument parts, imaging device components, diagnostic equipment housings
Standards Compliance: Biocompatible materials, cleanroom manufacturing options available
Standards Compliance: Biocompatible materials, cleanroom manufacturing options available
Semiconductor & Electronics
Components: Wafer handling fixtures, heat sinks, connector housings, test sockets
Critical Requirements: ESD-safe materials, ultra-clean surfaces, non-contaminating
Critical Requirements: ESD-safe materials, ultra-clean surfaces, non-contaminating
Aerospace & Defense
Components: Aircraft fittings, radar components, drone structures, navigation parts
Certifications: NADCAP accreditation available for specific applications
Certifications: NADCAP accreditation available for specific applications
Automotive & Transportation
Components: Engine components, transmission parts, fuel system elements, EV battery housings
Capabilities: High-volume production, just-in-time delivery, kanban systems
Capabilities: High-volume production, just-in-time delivery, kanban systems
Customization & Service Workflow
Design Support Services
DFM Analysis: Design for manufacturability review within 24 hours of drawing submission
Engineering Collaboration: Co-development with customer engineering teams
Rapid Prototyping: 3D printing (SLA, SLS, MJF) available for concept validation
Engineering Collaboration: Co-development with customer engineering teams
Rapid Prototyping: 3D printing (SLA, SLS, MJF) available for concept validation
Order Process
Quotation Request: Submit drawings (DXF, DWG, PDF) or 3D models (STEP, IGES, SLDPRT)
Technical Review: Engineering assessment of materials, tolerances, and finishing
Commercial Proposal: Detailed quotation including unit pricing, tooling costs, lead time
Prototype Approval: Sample production with inspection report submission
Production Release: Scheduled manufacturing with milestone updates
Quality Verification: Final inspection report prior to shipping
Delivery & Support: Tracking information and post-sales technical assistance
Technical Review: Engineering assessment of materials, tolerances, and finishing
Commercial Proposal: Detailed quotation including unit pricing, tooling costs, lead time
Prototype Approval: Sample production with inspection report submission
Production Release: Scheduled manufacturing with milestone updates
Quality Verification: Final inspection report prior to shipping
Delivery & Support: Tracking information and post-sales technical assistance
