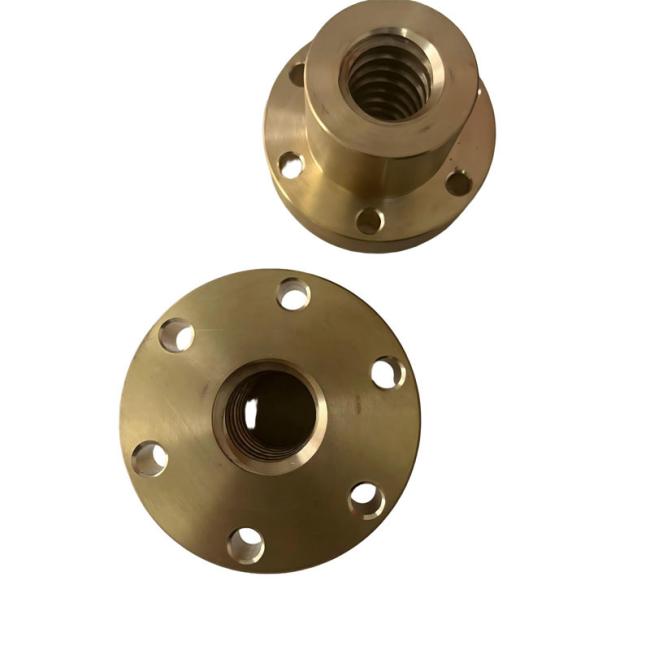

Customized CNC Turning Parts with High Tolerance and Gold Oxidation Surface Finish for Medical Devices
Price:
0.1~5USD
MOQ:
I PC
Delivery Time:
7~35 working days
Brand:
IMission
Product Description
Custom CNC Lathed Metal Parts for Medical Device CNC Turning Components
Our precision CNC turning parts are engineered for medical device applications, offering exceptional accuracy and reliability for critical healthcare components.
CNC Turning Parts Specifications
| Product Name | CNC Turning Parts |
|---|---|
| Material Available | Aluminum |
| Processing | CNC Turning |
| Surface Finish | Gold Oxidation |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning Parts Characteristics
Our CNC turning parts deliver exceptional precision and consistency, capable of machining both metal and non-metal components with diverse complex structures including shafts and discs. Controlled by pre-set programs, our machining process enables one-time forming of intricate details such as complex threads, chamfers, and grooves, making these parts ideal for stringent application requirements across machinery manufacturing, automotive, aerospace, and other demanding industries.
Manufacturing Capabilities & Specifications
Equipment Specifications
| Machine Type | Axis Configuration | Maximum Dimensions | Tolerance Capability | Special Features |
|---|---|---|---|---|
| Swiss-Type Lathes | 5-13 axis | Ø32mm × 300mm | ±0.005mm | Simultaneous machining, live tooling, backworking |
| Multi-Axis Turning Centers | 6-9 axis | Ø250mm × 500mm | ±0.01mm | B-axis milling, Y-axis capability, sub-spindle |
| CNC Lathes | 2-4 axis | Ø600mm × 1000mm | ±0.02mm | Hydraulic chucking, bar feeders, part catchers |
| Turn-Mill Centers | 7+ axis | Ø150mm × 400mm | ±0.008mm | Complete part processing in single setup |
Technical Parameters
Standard Tolerance Range: ±0.01mm to ±0.05mm
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances:
Concentricity: 0.005mm
Cylindricity: 0.008mm
True Position: 0.01mm
Thread Machining Capabilities:
Metric/Unified/Whitworth threads
ACME, trapezoidal, and special forms
Single-point threading up to 64 TPI
Thread rolling capabilities
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances:
Concentricity: 0.005mm
Cylindricity: 0.008mm
True Position: 0.01mm
Thread Machining Capabilities:
Metric/Unified/Whitworth threads
ACME, trapezoidal, and special forms
Single-point threading up to 64 TPI
Thread rolling capabilities
Material Expertise
Metals & Alloys
Aluminum Alloys
Specific Grades: 6061, 7075, 2024, 5083Machinability Rating: Excellent
Typical Applications: Aerospace, automotive, electronics
Stainless Steels
Specific Grades: 303, 304, 316, 17-4PH, 416Machinability Rating: Good to Fair
Typical Applications: Medical, marine, chemical processing
Carbon & Alloy Steels
Specific Grades: 1018, 1045, 4140, 4340Machinability Rating: Excellent
Typical Applications: Industrial machinery, automotive
Tool Steels
Specific Grades: D2, A2, O1, S7Machinability Rating: Fair to Difficult
Typical Applications: Molds, dies, tooling components
Copper Alloys
Specific Grades: C360, C464, C17200, C10100Machinability Rating: Excellent
Typical Applications: Electrical, plumbing, marine
Exotic Alloys
Specific Grades: Titanium (Gr2, Gr5), Inconel, MonelMachinability Rating: Difficult
Typical Applications: Aerospace, medical implants
Magnesium Alloys
Specific Grades: AZ31B, AZ91DMachinability Rating: Excellent (with precautions)
Typical Applications: Aerospace, portable devices
Non-Metallic Materials
Engineering Plastics: PEEK, Delrin/Acetal, Nylon, PTFE, POM
Composites: Carbon fiber reinforced, fiberglass composites
Special Materials: Ceramics (machinable grades), graphite, engineered woods
Composites: Carbon fiber reinforced, fiberglass composites
Special Materials: Ceramics (machinable grades), graphite, engineered woods
Target Industries & Applications
Aerospace & Defense
- Components: Fasteners, fittings, bushings, spacers, hydraulic parts
- Materials: Titanium, high-strength aluminum, corrosion-resistant steels
- Standards: AS9100, NADCAP (supplemental), MIL specifications
Medical & Dental
- Components: Surgical instruments, implantable components, device housings
- Materials: 316L stainless, titanium, PEEK, cobalt-chrome
- Requirements: Biocompatibility, cleanroom manufacturing, full traceability
Automotive & Motorsports
- Components: Engine parts, transmission components, fuel system parts, fittings
- Materials: Various steels, aluminum, brass, exotic alloys for racing
- Capabilities: High-volume production, lean manufacturing, JIT delivery
Electronics & Semiconductor
- Components: Connector pins, shielding components, heat sinks, spacers
- Materials: Copper alloys, aluminum, conductive plastics
- Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
Fluid Power & Hydraulics
- Components: Valve bodies, fittings, manifolds, pistons, cylinders
- Materials: Carbon steel, stainless, brass, aluminum
- Critical Aspects: Pressure integrity, sealing surfaces, thread quality
