Aluminum Alloy CNC Turning Parts for Automotive CNC Turned Shaft Parts
Price:
0.1~5USD
MOQ:
I PC
Delivery Time:
7~35 working days
Brand:
IMission
Product Description

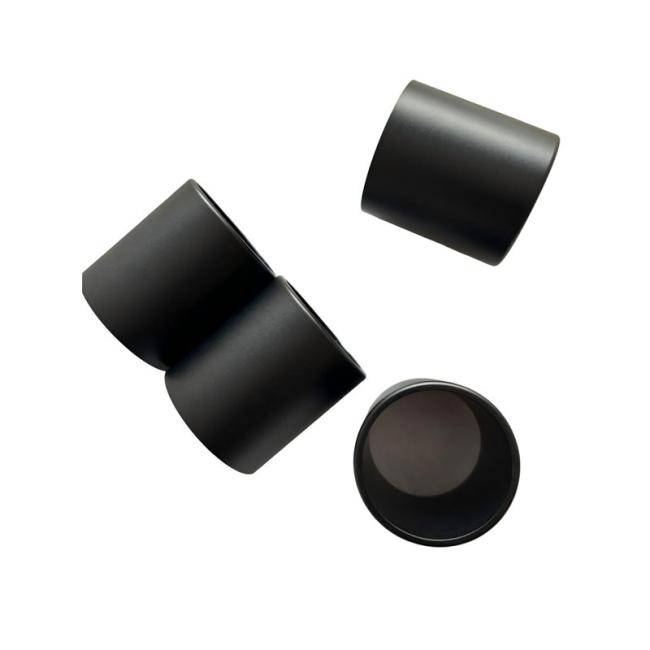

Aluminum Alloy CNC Turned Components for Automotive CNC Turned Shaft Parts
Precision CNC turned components manufactured from aluminum alloy, specifically engineered for automotive shaft applications requiring high dimensional accuracy and reliability.
CNC Turning Parts Specifications
| Product Name | CNC Turning Parts |
|---|---|
| Material Available | Aluminum |
| Processing | CNC Turning |
| Surface Finish | Black Oxidation |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning Parts Features
CNC turning parts feature high precision and excellent consistency, capable of machining metal or non-metal components with diverse complex structures such as shafts and discs. Controlled precisely by pre-set programs, the machining process enables one-time forming of intricate details like complex threads, chamfers and grooves, making these parts well-suited for stringent application requirements in machinery manufacturing, automotive, aerospace and other industries.
Inspection Equipment
- Multi-Sensor CMMs: 3D measurement with 0.001mm accuracy
- Optical Comparators: Profile projection with 20* to 100* magnification
- Surface Roughness Testers: Portable and benchtop Ra/Rz measurement
- Hardness Testers: Rockwell, Brinell, Vickers, and micro-hardness
- Thread Gauges: Complete sets to ISO/ANSI standards
- Digital Calipers/Micrometers: 0.001mm resolution, calibrated regularly
- Roundness Testers: Concentricity and cylindricity measurement
- Force Measurement: Torque testing, spring constant verification
Quality Certifications & Processes
- ISO 9001:2015 certified quality management system
- First Article Inspection (FAIR): AS9102/PPAP documentation available
- Statistical Process Control (SPC): Real-time monitoring of critical dimensions
- Material Traceability: Mill test certificates, heat/lot number tracking
- Calibration Program: All inspection equipment calibrated to NIST standards
- Document Control: Revision-controlled drawings and specifications
Target Industries & Applications
Aerospace & Defense
- Components: Fasteners, fittings, bushings, spacers, hydraulic parts
- Materials: Titanium, high-strength aluminum, corrosion-resistant steels
- Standards: AS9100, NADCAP (supplemental), MIL specifications
Medical & Dental
- Components: Surgical instruments, implantable components, device housings
- Materials: 316L stainless, titanium, PEEK, cobalt-chrome
- Requirements: Biocompatibility, cleanroom manufacturing, full traceability
Automotive & Motorsports
- Components: Engine parts, transmission components, fuel system parts, fittings
- Materials: Various steels, aluminum, brass, exotic alloys for racing
- Capabilities: High-volume production, lean manufacturing, JIT delivery
Electronics & Semiconductor
- Components: Connector pins, shielding components, heat sinks, spacers
- Materials: Copper alloys, aluminum, conductive plastics
- Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
Fluid Power & Hydraulics
- Components: Valve bodies, fittings, manifolds, pistons, cylinders
- Materials: Carbon steel, stainless, brass, aluminum
- Critical Aspects: Pressure integrity, sealing surfaces, thread quality
Ordering Process & Lead Times
Standard Process Flow
- RFQ Submission: Drawings (PDF/DWG), 3D models (STEP/IGES), specifications
- Engineering Review: DFM analysis, material recommendation, process planning (24-48 hour response)
- Quotation: Detailed pricing including tooling, setup, and piece price
- Prototype Phase (if required): Sample production with inspection report
- Production Approval: Process validation, inspection plan approval
- Manufacturing: Scheduled production with milestone updates
- Final Inspection: Complete FAIR or inspection report
- Delivery: Packaged per requirements, shipping with tracking
Lead Time Guidelines
| Order Type | Typical Lead Time | Notes |
|---|---|---|
| Prototype/Samples | 5-10 business days | Standard materials, simple geometries |
| Low Volume (1-100 pcs) | 10-20 business days | Includes setup and first article inspection |
| Medium Volume (100-1,000 pcs) | 3-4 weeks | Batch production with process optimization |
| High Volume (1,000+ pcs) | 4-8 weeks | Dedicated production runs, tooling optimization |
| Expedited Services | 50-100% premium | Available for urgent requirements |
Packaging & Logistics
Packaging Options
- Standard: Poly bags with labeled partitions in shipping cartons
- ESD-Safe: Anti-static packaging for electronic components
- Cleanroom: Double-bagged, particulate-controlled for medical/aerospace
- VCI Protection: Volatile corrosion inhibitor packaging for ferrous metals
- Custom: Foam inserts, vacuum sealing, desiccant packs as required
Shipping & Logistics
- Export Documentation: Commercial invoice, packing list, certificate of origin
- International Compliance: REACH, RoHS, conflict mineral documentation
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Inventory Management: Consignment stock, kanban systems, bonded warehousing
