High Precision CNC Turning Parts and Screw Machined Parts with High Tolerance, ISO9001 Certified, and 100% Inspection
Price:
0.1~5USD
MOQ:
I PC
Delivery Time:
7~35 working days
Brand:
IMission
Product Description

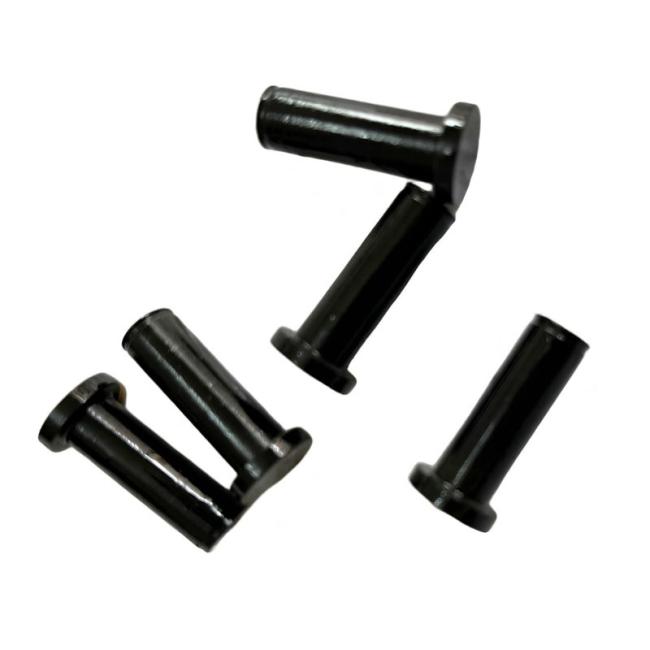

Stainless Steel Turned Parts and Screw Machined Parts
High-Volume CNC Turned Pulley and CNC Turned Part | Quick Delivery
CNC Turning Parts Technical Overview
We specialize in high-precision CNC turning components manufactured with Swiss-type and multi-axis turning centers for industries requiring tight tolerances, complex geometries, and exceptional surface finishes. Our capabilities encompass the full spectrum of turned part manufacturing from prototype to high-volume production.
| Product Name | CNC Turning Parts |
|---|---|
| Material Available | Steel |
| Processing | CNC Turning |
| Surface Finish | Blackened |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning Parts Features
CNC turning parts feature high precision and excellent consistency, capable of machining metal or non-metal components with diverse complex structures such as shafts and discs. Controlled precisely by pre-set programs, the machining process enables one-time forming of intricate details like complex threads, chamfers and grooves, making these parts well-suited for stringent application requirements in machinery manufacturing, automotive, aerospace and other industries.
Manufacturing Capabilities & Specifications
A. Equipment Specifications
| Machine Type | Axis Configuration | Maximum Dimensions | Tolerance Capability | Special Features |
|---|---|---|---|---|
| Swiss-Type Lathes | 5-13 axis | Ø32mm * 300mm | ±0.005mm | Simultaneous machining, live tooling, backworking |
| Multi-Axis Turning Centers | 6-9 axis | Ø250mm * 500mm | ±0.01mm | B-axis milling, Y-axis capability, sub-spindle |
| CNC Lathes | 2-4 axis | Ø600mm * 1000mm | ±0.02mm | Hydraulic chucking, bar feeders, part catchers |
| Turn-Mill Centers | 7+ axis | Ø150mm * 400mm | ±0.008mm | Complete part processing in single setup |
B. Technical Parameters
Standard Tolerance Range: ±0.01mm to ±0.05mm
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances
- Concentricity: 0.005mm
- Cylindricity: 0.008mm
- True Position: 0.01mm
Thread Machining Capabilities
- Metric/Unified/Whitworth threads
- ACME, trapezoidal, and special forms
- Single-point threading up to 64 TPI
- Thread rolling capabilities
Target Industries & Applications
A. Aerospace & Defense
Components: Fasteners, fittings, bushings, spacers, hydraulic parts
Materials: Titanium, high-strength aluminum, corrosion-resistant steels
Standards: AS9100, NADCAP (supplemental), MIL specifications
Materials: Titanium, high-strength aluminum, corrosion-resistant steels
Standards: AS9100, NADCAP (supplemental), MIL specifications
B. Medical & Dental
Components: Surgical instruments, implantable components, device housings
Materials: 316L stainless, titanium, PEEK, cobalt-chrome
Requirements: Biocompatibility, cleanroom manufacturing, full traceability
Materials: 316L stainless, titanium, PEEK, cobalt-chrome
Requirements: Biocompatibility, cleanroom manufacturing, full traceability
C. Automotive & Motorsports
Components: Engine parts, transmission components, fuel system parts, fittings
Materials: Various steels, aluminum, brass, exotic alloys for racing
Capabilities: High-volume production, lean manufacturing, JIT delivery
Materials: Various steels, aluminum, brass, exotic alloys for racing
Capabilities: High-volume production, lean manufacturing, JIT delivery
D. Electronics & Semiconductor
Components: Connector pins, shielding components, heat sinks, spacers
Materials: Copper alloys, aluminum, conductive plastics
Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
Materials: Copper alloys, aluminum, conductive plastics
Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
E. Fluid Power & Hydraulics
Components: Valve bodies, fittings, manifolds, pistons, cylinders
Materials: Carbon steel, stainless, brass, aluminum
Critical Aspects: Pressure integrity, sealing surfaces, thread quality
Materials: Carbon steel, stainless, brass, aluminum
Critical Aspects: Pressure integrity, sealing surfaces, thread quality
Standard Process Flow
- RFQ Submission: Drawings (PDF/DWG), 3D models (STEP/IGES), specifications
- Engineering Review: DFM analysis, material recommendation, process planning (24-48 hour response)
- Quotation: Detailed pricing including tooling, setup, and piece price
- Prototype Phase (if required): Sample production with inspection report
- Production Approval: Process validation, inspection plan approval
- Manufacturing: Scheduled production with milestone updates
- Final Inspection: Complete FAIR or inspection report
- Delivery: Packaged per requirements, shipping with tracking
