High Precision CNC Turning Parts and Stainless Steel Hydraulic Fittings
Price:
0.1~5USD
MOQ:
I PC
Delivery Time:
7~35 working days
Brand:
IMission
Product Description
Custom Swiss Turning Service for Medical Parts and Stainless Steel Hydraulic Fittings
We specialize in high-precision CNC turning components manufactured with Swiss-type and multi-axis turning centers for industries requiring tight tolerances, complex geometries, and exceptional surface finishes. Our capabilities encompass the full spectrum of turned part manufacturing from prototype to high-volume production.
CNC Turning Parts Specifications
| Product Name | CNC Turning Parts |
|---|---|
| Material Available | Steel |
| Processing | CNC Turning |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning Parts Features

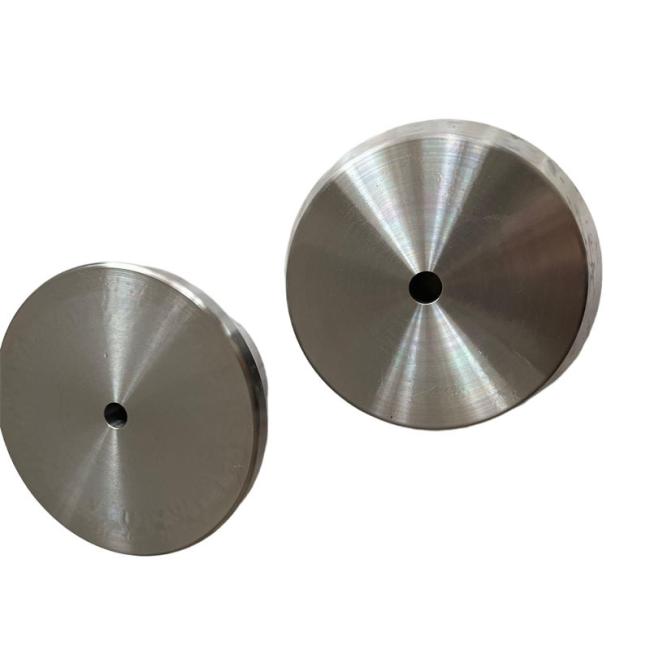

CNC turning parts feature high precision and excellent consistency, capable of machining metal or non-metal components with diverse complex structures such as shafts and discs. Controlled precisely by pre-set programs, the machining process enables one-time forming of intricate details like complex threads, chamfers and grooves, making these parts well-suited for stringent application requirements in machinery manufacturing, automotive, aerospace and other industries.
Manufacturing Capabilities & Specifications
Equipment Specifications
| Machine Type | Axis Configuration | Maximum Dimensions | Tolerance Capability | Special Features |
|---|---|---|---|---|
| Swiss-Type Lathes | 5-13 axis | Ø32mm * 300mm | ±0.005mm | Simultaneous machining, live tooling, backworking |
| Multi-Axis Turning Centers | 6-9 axis | Ø250mm * 500mm | ±0.01mm | B-axis milling, Y-axis capability, sub-spindle |
| CNC Lathes | 2-4 axis | Ø600mm * 1000mm | ±0.02mm | Hydraulic chucking, bar feeders, part catchers |
| Turn-Mill Centers | 7+ axis | Ø150mm * 400mm | ±0.008mm | Complete part processing in single setup |
Technical Parameters
Standard Tolerance Range: ±0.01mm to ±0.05mm
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances
- Concentricity: 0.005mm
- Cylindricity: 0.008mm
- True Position: 0.01mm
Thread Machining Capabilities
- Metric/Unified/Whitworth threads
- ACME, trapezoidal, and special forms
- Single-point threading up to 64 TPI
- Thread rolling capabilities
Material Expertise
Metals & Alloys
| Material Category | Specific Grades | Machinability Rating | Typical Applications |
|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083 | Excellent | Aerospace, automotive, electronics |
| Stainless Steels | 303, 304, 316, 17-4PH, 416 | Good to Fair | Medical, marine, chemical processing |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340 | Excellent | Industrial machinery, automotive |
| Tool Steels | D2, A2, O1, S7 | Fair to Difficult | Molds, dies, tooling components |
| Copper Alloys | C360, C464, C17200, C10100 | Excellent | Electrical, plumbing, marine |
| Exotic Alloys | Titanium (Gr2, Gr5), Inconel, Monel | Difficult | Aerospace, medical implants |
| Magnesium Alloys | AZ31B, AZ91D | Excellent (with precautions) | Aerospace, portable devices |
Non-Metallic Materials
- Engineering Plastics: PEEK, Delrin/Acetal, Nylon, PTFE, POM
- Composites: Carbon fiber reinforced, fiberglass composites
- Special Materials: Ceramics (machinable grades), graphite, engineered woods
Quality Assurance & Inspection
Inspection Equipment & Capabilities
- CMM (Coordinate Measuring Machines): 3D measurement with 0.001mm accuracy, temperature controlled
- Optical Comparators/Vision Systems: Non-contact measurement, 2D profile verification
- Surface Roughness Testers: Contact and non-contact Ra, Rz, Rq measurements
- Roundness/Form Testers: Cylindricity, concentricity, flatness verification
- Hardness Testers: Rockwell, Brinell, Vickers, micro-hardness
- Portable Arms: Articulated arms with laser scanner for large parts
- Digital Height Gauges: Precision height measurement with 0.001mm resolution
- Gauge Blocks & Calibrated Instruments: Full set to ISO 3650 standards
- Force/Torque Measurement: For assembly validation, spring constant verification
Quality Management System
- ISO 9001:2015 Certified: Full quality management system implementation
- First Article Inspection: AS9102, PPAP, or custom FAIR documentation
- Statistical Process Control: Real-time monitoring of critical characteristics
- Material Certification: Mill test reports, material traceability to heat/lot
- Calibration Program: All inspection equipment calibrated to NIST-traceable standards
- Document Control: Revision-controlled drawings, specifications, procedures
- Non-Conformance System: Documented containment, root cause analysis, corrective action
Standard Quotation & Order Process
- RFQ Submission: Provide drawings (PDF/DWG), 3D models (STEP/IGES/SLDPRT), specifications
- Technical Review: Engineering assessment, DFM analysis, process planning (24-48 hour response)
- Quotation: Detailed pricing with breakdown (material, setup, machining, finishing)
- Prototype Phase (if required): Sample production with full inspection report
- Production Approval: Process validation, inspection plan agreement
- Manufacturing: Scheduled production with milestone updates (weekly/daily)
- Final Inspection: Complete FAIR or dimensional report before shipping
- Delivery: Appropriate packaging, shipping with tracking, customs documentation
