Precision CNC Turning Parts for Aluminum Hydraulic Fittings with ±0.002~0.005mm Tolerance and Red Oxidation Surface Finish ISO9001 Certified
Price:
0.1~5USD
MOQ:
I PC
Delivery Time:
7~35 working days
Brand:
IMission
Product Description

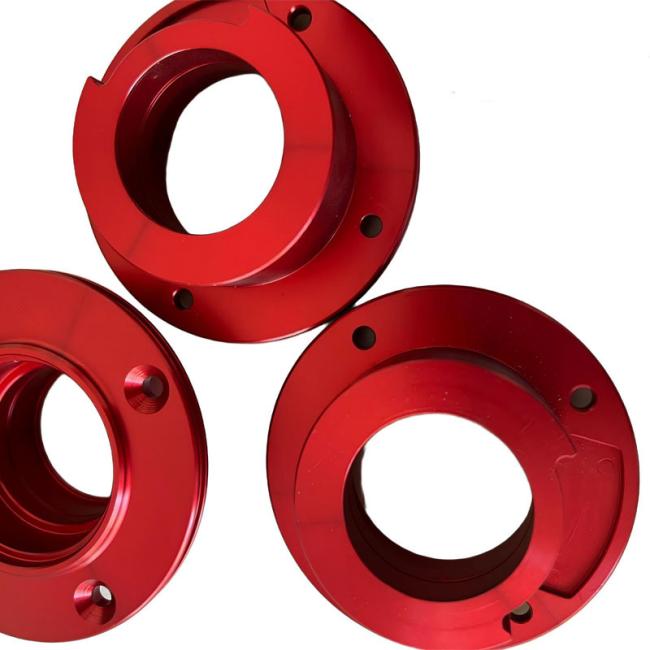

CNC Turning Parts Supplier of Aluminum Hydraulic Fittings
Specializing in precision CNC turning parts for aluminum hydraulic fittings with comprehensive manufacturing capabilities and quality assurance.
CNC Turning Parts Specifications
| Product Name | CNC Turning Parts |
| Material Available | Aluminum |
| Processing | CNC Turning |
| Surface Finish | Red Oxidation |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Turning Parts Characteristics
CNC turning parts feature high precision and excellent consistency, capable of machining metal or non-metal components with diverse complex structures such as shafts and discs. Controlled precisely by pre-set programs, the machining process enables one-time forming of intricate details like complex threads, chamfers and grooves, making these parts well-suited for stringent application requirements in machinery manufacturing, automotive, aerospace and other industries.
Quality Assurance & Inspection
Inspection Equipment
- Multi-Sensor CMMs: 3D measurement with 0.001mm accuracy
- Optical Comparators: Profile projection with 20× to 100× magnification
- Surface Roughness Testers: Portable and benchtop Ra/Rz measurement
- Hardness Testers: Rockwell, Brinell, Vickers, and micro-hardness
- Thread Gauges: Complete sets to ISO/ANSI standards
- Digital Calipers/Micrometers: 0.001mm resolution, calibrated regularly
- Roundness Testers: Concentricity and cylindricity measurement
- Force Measurement: Torque testing, spring constant verification
Quality Certifications & Processes
- ISO 9001:2015 certified quality management system
- First Article Inspection (FAIR): AS9102/PPAP documentation available
- Statistical Process Control (SPC): Real-time monitoring of critical dimensions
- Material Traceability: Mill test certificates, heat/lot number tracking
- Calibration Program: All inspection equipment calibrated to NIST standards
- Document Control: Revision-controlled drawings and specifications
Technical Parameters
Standard Tolerance Range: ±0.01mm to ±0.05mm
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances
- Concentricity: 0.005mm
- Cylindricity: 0.008mm
- True Position: 0.01mm
Thread Machining Capabilities
- Metric/Unified/Whitworth threads
- ACME, trapezoidal, and special forms
- Single-point threading up to 64 TPI
- Thread rolling capabilities
Ordering Process & Lead Times
Standard Process Flow
- RFQ Submission: Drawings (PDF/DWG), 3D models (STEP/IGES), specifications
- Engineering Review: DFM analysis, material recommendation, process planning (24-48 hour response)
- Quotation: Detailed pricing including tooling, setup, and piece price
- Prototype Phase: Sample production with inspection report
- Production Approval: Process validation, inspection plan approval
- Manufacturing: Scheduled production with milestone updates
- Final Inspection: Complete FAIR or inspection report
- Delivery: Packaged per requirements, shipping with tracking
Lead Time Guidelines
| Order Type | Typical Lead Time | Notes |
|---|---|---|
| Prototype/Samples | 5-10 business days | Standard materials, simple geometries |
| Low Volume (1-100 pcs) | 10-20 business days | Includes setup and first article inspection |
| Medium Volume (100-1,000 pcs) | 3-4 weeks | Batch production with process optimization |
| High Volume (1,000+ pcs) | 4-8 weeks | Dedicated production runs, tooling optimization |
| Expedited Services | 50-100% premium | Available for urgent requirements |
Customization & Special Capabilities
Complex Geometries
- Eccentric Features: Off-center turning, cam profiles
- Micro-Machining: Parts as small as Ø0.5mm with features to 0.05mm
- Thin-Wall Components: Walls as thin as 0.1mm with proper support
- Deep Hole Drilling: Up to 20× diameter depth with gun drilling equipment
- Contoured Surfaces: Programmable radius forms, complex profiles
Special Processes
- Hard Turning: Machining of hardened materials (45-65 HRC)
- Polygon Turning: Non-circular forms, hex shapes, special profiles
- Burnishing: Diamond or roller burnishing for superior surface finish
- Knurling: Straight, diagonal, and diamond patterns
- Part Marking: Laser engraving, dot peen marking, serialization
Packaging & Logistics
Packaging Options
- Standard: Poly bags with labeled partitions in shipping cartons
- ESD-Safe: Anti-static packaging for electronic components
- Cleanroom: Double-bagged, particulate-controlled for medical/aerospace
- VCI Protection: Volatile corrosion inhibitor packaging for ferrous metals
- Custom: Foam inserts, vacuum sealing, desiccant packs as required
Shipping & Logistics
- Export Documentation: Commercial invoice, packing list, certificate of origin
- International Compliance: REACH, RoHS, conflict mineral documentation
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Inventory Management: Consignment stock, kanban systems, bonded warehousing
