Precision CNC Turning Parts Manufacturer | High-Quality, Custom Components for Global Industries
Price:
0.1~5USD
MOQ:
I PC
Delivery Time:
7~35 working days
Brand:
IMission
Product Description
Precision CNC Turning Parts Manufacturer | High-Quality, Custom Components for Global Industries
High-quality custom components for global industries with comprehensive manufacturing capabilities and stringent quality standards.
CNC Turning Parts Specifications
| Product Name | CNC Turning Parts |
|---|---|
| Material Available | Aluminum |
| Processing | CNC Turning |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning Parts Characteristics

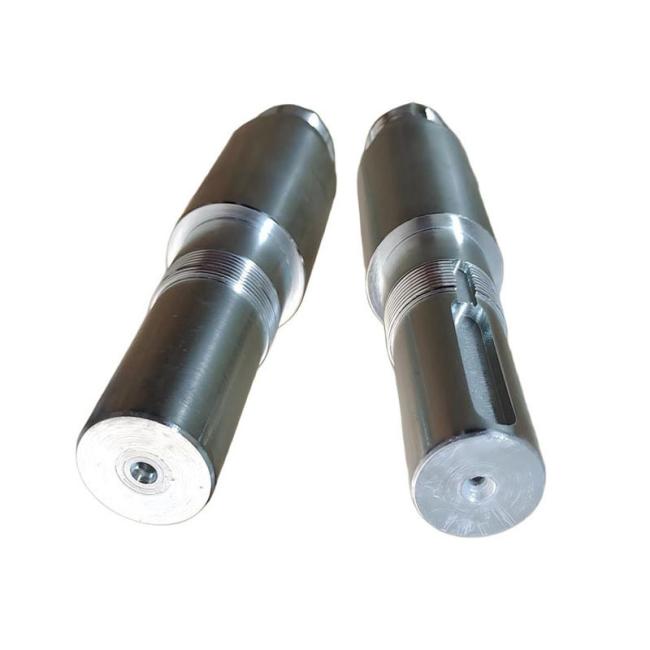

CNC turning parts feature high precision and excellent consistency, capable of machining metal or non-metal components with diverse complex structures such as shafts and discs. Controlled precisely by pre-set programs, the machining process enables one-time forming of intricate details like complex threads, chamfers and grooves, making these parts well-suited for stringent application requirements in machinery manufacturing, automotive, aerospace and other industries.
Manufacturing Capabilities & Specifications
Equipment Specifications
| Machine Type | Axis Configuration | Maximum Dimensions | Tolerance Capability | Special Features |
|---|---|---|---|---|
| Swiss-Type Lathes | 5-13 axis | Ø32mm × 300mm | ±0.005mm | Simultaneous machining, live tooling, backworking |
| Multi-Axis Turning Centers | 6-9 axis | Ø250mm × 500mm | ±0.01mm | B-axis milling, Y-axis capability, sub-spindle |
| CNC Lathes | 2-4 axis | Ø600mm × 1000mm | ±0.02mm | Hydraulic chucking, bar feeders, part catchers |
| Turn-Mill Centers | 7+ axis | Ø150mm × 400mm | ±0.008mm | Complete part processing in single setup |
Technical Parameters
Standard Tolerance Range: ±0.01mm to ±0.05mm
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances
- Concentricity: 0.005mm
- Cylindricity: 0.008mm
- True Position: 0.01mm
Thread Machining Capabilities
- Metric/Unified/Whitworth threads
- ACME, trapezoidal, and special forms
- Single-point threading up to 64 TPI
- Thread rolling capabilities
Material Expertise
Metals & Alloys
| Material Category | Specific Grades | Machinability Rating | Typical Applications |
|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083 | Excellent | Aerospace, automotive, electronics |
| Stainless Steels | 303, 304, 316, 17-4PH, 416 | Good to Fair | Medical, marine, chemical processing |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340 | Excellent | Industrial machinery, automotive |
| Tool Steels | D2, A2, O1, S7 | Fair to Difficult | Molds, dies, tooling components |
| Copper Alloys | C360, C464, C17200, C10100 | Excellent | Electrical, plumbing, marine |
| Exotic Alloys | Titanium (Gr2, Gr5), Inconel, Monel | Difficult | Aerospace, medical implants |
| Magnesium Alloys | AZ31B, AZ91D | Excellent (with precautions) | Aerospace, portable devices |
Non-Metallic Materials
- Engineering Plastics: PEEK, Delrin/Acetal, Nylon, PTFE, POM
- Composites: Carbon fiber reinforced, fiberglass composites
- Special Materials: Ceramics (machinable grades), graphite, engineered woods
Comprehensive Manufacturing Services
Full-Scale Services: We provide a complete solution, offering secondary operations including milling, drilling, threading, knurling, alongside finishing services like anodizing, plating, passivation, heat treatment, and powder coating.
Industries We Serve
Our precision components are integral to the success of demanding applications across:
- Automotive: Engine components, transmission shafts, sensor housings, and fuel system fittings
- Aerospace: Lightweight structural parts, aircraft fasteners, and precision shafts meeting stringent standards
- Medical & Dental: Surgical instrument parts, implantable device components, and diagnostic equipment shafts requiring biocompatibility
- Electronics & Industrial: Connector pins, semiconductor parts, hydraulic/pneumatic fittings, valve bodies, and custom shafts for machinery
Our Product Portfolio Includes
We manufacture a diverse array of turned components, such as:
- Shafts & Pins: Precision shafts, axles, dowel pins, and studs
- Fasteners & Connectors: Specialized bolts, screws, standoffs, spacers, bushings, and couplings
- Complex Fittings: Hydraulic and pneumatic fittings (elbows, tees, adapters), nozzles, and valve components
- Custom Components: Any custom-designed part based on your technical drawings or samples
