Precision CNC Milled Back Panel for Server Rack with ±0.002~0.005mm Tolerance and Black Oxidation Finish - ISO9001 Certified
Price:
0.1~5USD
MOQ:
I PC
Delivery Time:
7~35 working days
Brand:
IMission
Product Description

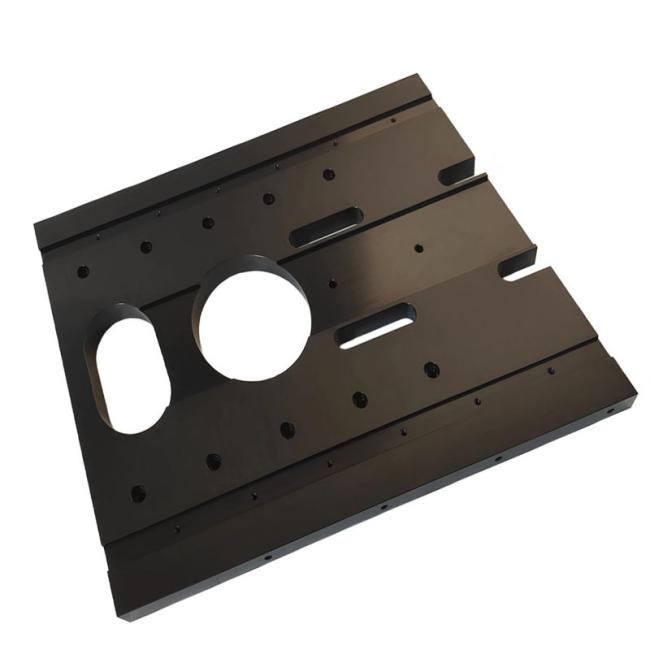

CNC Milled Back Panel for Server Rack
CNC Milling Parts Specifications
| Product Name | Precision CNC Milling Parts |
| Material Available | Steel |
| Surface Finish | Black Oxidation |
| Processing | CNC Milling |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Milling Parts Key Features
- Exceptional Precision & Tolerance Control: Achieves tight dimensional tolerances (down to ±0.005mm) and consistent geometries across batch production, eliminating human-induced errors.
- Versatile Material Compatibility: Suitable for processing aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials.
- Complex Geometry Machining Capability: Creates intricate shapes such as 3D contours, deep pockets, internal threads, and custom cavities.
Materials & Heat Treatment
Tool Steel Selection Guide
| Material Grade | Primary Applications | Hardness (HRC) | Key Properties |
|---|---|---|---|
| D2 (AISI) | Long-run stamping dies, blanking | 58-62 | High wear resistance, moderate toughness |
| A2 (AISI) | General purpose stamping dies | 56-60 | Good balance of toughness and wear resistance |
| H13 (AISI) | Hot work, aluminum die casting | 44-48 | Excellent thermal fatigue resistance |
| S136 (AISI 420) | Corrosion-resistant plastic molds | 48-52 | High polishability, corrosion resistance |
| NAK80 (P21) | Pre-hardened plastic molds | 37-43 | Excellent mirror finish, no heat treatment needed |
Heat Treatment Processes
- Vacuum Hardening: Minimizes oxidation and distortion
- Cryogenic Treatment: -196°C treatment for dimensional stability and wear resistance
- Tempering: Multiple temper cycles for stress relief and toughness optimization
- Surface Treatments: Nitriding (gas, ion), PVD/TiN coating, laser hardening
Manufacturing Capabilities
Precision Machining Processes
| Process | Equipment | Accuracy | Application in Die Making |
|---|---|---|---|
| High-Speed CNC Milling | 5-axis machining centers | ±0.005mm | Complex cavity machining, 3D contours |
| CNC Wire EDM | 0.02-0.3mm brass/coated wires | ±0.003mm | Precision punch profiles, intricate shapes |
| CNC Sinker EDM | Graphite/copper electrodes | ±0.01mm | Deep ribs, textured surfaces, sharp corners |
| Jig Grinding | Coordinate grinding machines | ±0.002mm | Precision hole patterns, guide post holes |
| Profile Grinding | CNC optical profile grinders | ±0.002mm | Punch and die profiles, form grinding |
Design & Engineering Services
- CAD Software: UG/NX, CATIA, Pro/E, AutoCAD
- CAM Programming: HyperMILL, Mastercam, PowerMILL
- Simulation & Analysis: Forming simulation (AutoForm, Dynaform), Mold flow analysis (Moldflow, Moldex3D), Structural FEA for die stress analysis
- Standard Component Libraries: Misumi, PUNCH, HASCO, DME
Competitive Advantages
Technical Expertise
- 12+ years average experience among engineering staff
- Dedicated project management for each account
- Continuous process optimization through Six Sigma methodologies
Supply Chain Reliability
- Long-term partnerships with certified material suppliers
- Risk mitigation through multi-source material procurement
- Inventory management programs for repeat components
Global Compliance
- ISO 9001:2015 certified quality management system
- Conflict-free mineral sourcing documentation
- REACH and RoHS compliance for applicable materials
