Steaming Shrinking Machine For Food Bottle with speed upon 100 Bottles/Min and 98% drying level
Price:
10000-20000USD
MOQ:
1SET
Delivery Time:
30 WORK DAYS
Brand:
PINCHI
Product Description
Steaming Shrinking Machine For Food Bottle With Speed Upon 100 Bottles/Min And 98% Drying Level
Steaming Shrinking Sleeve Machine
Technical Specifications of Steaming Shrinking Machine
| Brand: | PINCHI |
| Specifications: | 200x200 |
| Color: | Stainless Steel Metallic Finish |
| Surface Finish: | Brushed |
| Air-Drying Tunnel Dimensions: | 1600(L)x200(W)x200(H)mm |
| Conveyor Dimensions: | 2000mm(L) |
| Machine Dimensions: | 2000(L)x800(W)x1000(H)mm |
| Conveyor Speed: | Adjustable, 0-20 m/min |
| Power Supply: | 380V 50-60Hz |
| Total Power: | 7.5KW |
| Platform Height: | 750mm |
| Conveyor Belt: | PU Food-Grade Lower Belt, Synchronous PU Upper Pressure Belt (L) |
| Conveyor Load Capacity: | 10KG |
| Machine Weight: | 100KG |
| Primary Materials: | 304 Stainless Steel |
Advanced Performance Features of Steaming Shrinking Machine
Conveyor Motor: Variable Frequency Drive Motor
Bottle Clamping Belt Motor: Variable Frequency Drive Motor
Air-Drying System: Spider-Bead Hand Mouthpiece + Air Knife
Air-Drying Efficiency: 100 bottles per minute
Air-Drying Effectiveness: 99.9% droplet-free residue
Leak Prevention System: Mid-body leak-proof design with centralized condensate drainage
Air-Drying Motor: Super Permanent Magnet 7.5KW (Delivers 3x higher airflow than comparable high-voltage motors)

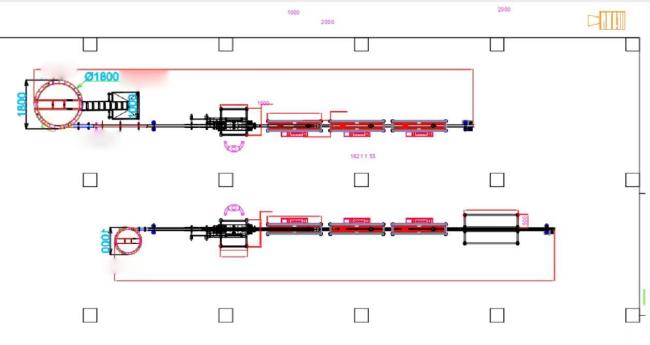

Product Drawings of Steaming Shrinking Machine
Ordering & Payment Information
| Product Description | Steaming Shrinking Machine For Food Bottle with speed upon 100 Bottles/Min and 98% drying level |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long term for software & system |
| Commissioning | Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day) |
After-Sales Service & Support of Steaming Shrinking Machine
Quality Assurance: Complete product quality traceability with 1-year warranty period from equipment acceptance date.
- Warranty Coverage: Free maintenance during warranty period with travel and material costs charged for services beyond warranty
- Remote Support: Free remote operation and maintenance services via Pinchi Tech AI cloud platform
- Software Updates: Comprehensive support for system updates, algorithm settings, and software adjustments
Note: All specifications and terms are subject to change without prior notice. Please contact our sales team for the most current information.
