Pneumatic Bucket Sealer Machine With 30-250mm Sealing Diameter
Price:
USD 2388-5888
MOQ:
1
Delivery Time:
7-10 days
Brand:
China Xingyuan
Product Description

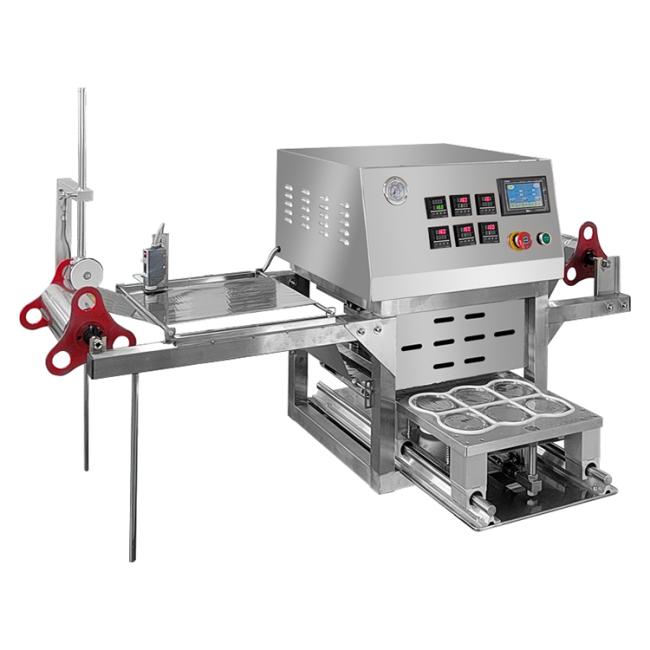

Anti Pinch Bucket Sealing Machine - Energy Efficient Integrated
Product Overview
This PLUS fully automatic sealing machine is designed to meet diverse market demands. Featuring quick-change molds, it accommodates various container shapes including cups, bowls, boxes, bottles, barrels, and cans. Its flexible design offers cost savings through multi-purpose functionality. The machine works with either roll film or sheet film (plastic composite material), automatically performing punching, sealing, and waste discharge for lidless containers. Capable of sealing multiple boxes simultaneously (1, 2, or 4 at a time), it significantly enhances production efficiency while saving space.
Machine Functions and Specifications
- Six-out-one production configuration
- Production speed: 1000-1200 boxes/hour
- Production process: Manual box placement with automatic entry, air pressure sealing, automatic waste discharge, and box topping
- Safety features: Anti-pinch device with double-sided electronic grating
- Program-controlled operation for reliable performance
- 7-inch color touch screen interface for easy monitoring and operation
- Precision digital temperature control (±5°C) for optimal sealing
- Precision guide rails ensure smooth, accurate positioning
- Taiwanese photoelectric eye tracking system
- Sealing diameter range: 30-250mm (customizable)
- Compatible materials: Plastic composite film, aluminum foil, PP, PVC, PE, PET, PS
- Sealing film size: 2-3mm larger than container opening for tight, attractive seals
- Air pressure range: 4-8KG/CM²
- Temperature range: 0-300°C
- Power: 1000-2000W
- Voltage: 220V
- Stainless steel construction
- Package weight: ~204kg (custom models may vary)
- Package dimensions: 136×111×168cm (L×W×H)
- Wooden box packaging
- Includes: Instruction manual, hexagonal wrench, cross screwdriver, paper tube
Main Configuration
| No. | Component | Brand | Origin |
|---|---|---|---|
| 1 | Main Body | Stainless Steel 304 | Guangzhou |
| 2 | Electric Switch | Shuangke | Nanjing |
| 3 | PLC | Homemade | Guangzhou |
| 4 | Display | 7-inch Color Touch Screen | Guangzhou |
| 5 | Relay | Sanle | Zhejiang |
| 6 | Cylinder | AirTac | Taiwan |
| 7 | Temperature Control Meter | RKC | Domestic |
| 8 | Motor | Taili | Joint Venture |
| 10 | Solenoid Valve | AirTac | Taiwan |
Operation Safety Guidelines
- Connect grounding wire before operation
- Never insert hands into machine during standby or operation
- Use emergency stop button (red) when needed
- Power off when installing sealing film
- For initial use, gradually increase temperature from low to high
- Ensure machine is level on solid ground
- Regularly lubricate guide columns to reduce wear
- Daily cleaning of conveyor belt and motor areas
- Contact authorized service for any malfunctions
Commercial Terms
Payment: 50% deposit upon contract signing, balance due after on-site/video inspection and approval.
Delivery: 7-10 days production lead time.
Warranty: 1-year guarantee with lifetime service support.
Delivery: 7-10 days production lead time.
Warranty: 1-year guarantee with lifetime service support.
