Customized 304 Stainless Steel MAP Tray Sealer For Fresh Strawberry 220V 3KW
Price:
USD 68888-98888
MOQ:
1
Delivery Time:
15-20 days
Brand:
China Xingyuan
Product Description
Custom Map Tray Sealer Automatic For Fresh Strawberry 220V/50HZ
Fresh Strawberry MAP Modified Atmosphere Packaging Production Line
Product Overview

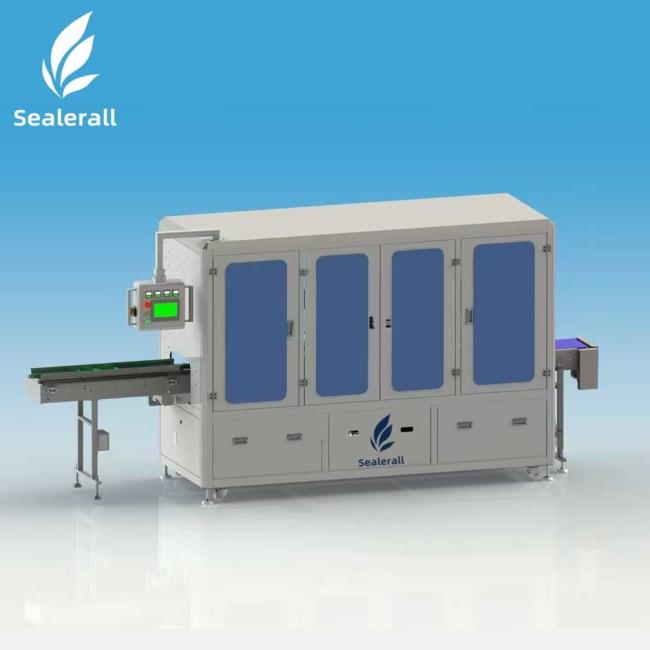

This machine is a disc rotary modified atmosphere fresh-keeping sealing machine developed according to customer requirements. It can inject fresh-keeping gases in different proportions to extend the shelf life of food in a refrigerated environment. The sealing film is a roll film, which is automatically hot-pressed and sealed, and can automatically top the cup/box. It can seal 2 boxes, 4 boxes or more boxes at a time, saving human resources and improving production efficiency.
Technical Parameters
| Model | LD672-CA Disk rotary type Modified Atmosphere Fresh-keeping Sealing Machine |
|---|---|
| Type | Modified Atmosphere Fresh-keeping Sealing Machine |
| Replacement Rate | ≥99% |
| Rated Power | 220V/50HZ 3KW |
| Shelf Life | 7-15 Days (for reference only, depends on the product type and storage environment, also the operation workshop cleanliness) |
| Mixed Gas | Two gases mixed: 30%CO2 70%N2 or 20%CO2 80%O2 |
| Program Control parts | Mitsubishi PLC |
| Pneumatic Parts | AirTac |
| Machine Casing | 304 Thickened Stainless steel |
| Mold Parts | Fine grinding of anodized aluminum alloy acid-resistant aluminum mold |
| Mixer | MOCON Denmark |
| Power Air Source | 0.4~0.6MPa |
| Warranty | One year warranty for the whole machine |
| Machine weight | 500(KG) |
Sealing Machine Functions and Configurations
- One-out-Four. The mold can be replaced and is compatible with cups, bowls, boxes, bottles, barrels and cans of various shapes and sizes.
- Production speed: One-out-one: 500-600 boxes/hour Production process: manual box placement, automatic injection of fresh-keeping gas in proportion, automatic film rolling and sealing, automatic printing of production date (optional), and automatic production of finished products.
- Can be connected to the production line, unmanned operation, saving manpower and improving production efficiency.
- Taiwan PLC program control, stable and reliable, the human-machine interface is a touch screen.
- Classic digital display temperature control meter, temperature difference of plus or minus 5 degrees, good sealing effect.
- Equipped with fault alarm and temperature alarm functions to ensure the sealing effect.
- Taiwan photoelectric eye tracking, electrical integration.
- Sealing material: consistent with the cup material, can be heated and bonded, plastic composite film or aluminum foil composite film, such as composite PP, composite PE, composite PET, composite PS, etc.
- Air pressure range: 4-8KG/CM2
- Adjustable temperature range: room temperature - 300 degrees
- Power: 1000-2000W
- Voltage: 110V or other voltages can be customized according to customer needs
- Machine size: 1000*1000*1500MM (customized products, subject to actual conditions)
- Machine frame structure: Made of high-quality stainless steel 304#, food-grade process 2B plate with brushed effect, dust-proof and rust-proof, acid-resistant and alkali-resistant; pure hand-polished and polished, fine workmanship.
- Sealing system: constant temperature, intelligent temperature control, hot press sealing, sealing head is high-quality aluminum alloy, mold part: acid-resistant aluminum alloy mold (6061 aluminum alloy), CNC processing, high precision, anodized anti-oxidation treatment, no deformation, corrosion resistance, high hardness, long life. Non-sand cast aluminum!
- Cup dispensing system: electric eye induction, base cylinder lifts up; upper cylinder connects to the pull-out mechanism to pull out.
- Net weight: 500KG
- Packing method: wooden box or wooden frame
- Accessories: 2 10A fuses, one instruction manual, one hexagonal wrench, one cross screwdriver, one paper tube.
Main Configuration List
- Operation screen: Taiwan Weiluntong touch screen human-machine interface
- PLC: Delta PLC
- Frequency Converter: Delta
- Motor: Taili motor
- Divider: Lianrui divider
- Cylinder: Taiwan Yadeke cylinder
- Solid state: Taiwan Yangming
- Power supply: Delta
- Relay: France Schneider
- Mold assembly: Aluminum alloy oxidation
- Disc assembly: Aluminum alloy oxidation
Payment Method
After the contract is signed, 50% of the total contract amount will be paid as a deposit. The remaining 50% can be paid after the equipment is completed and can be inspected on-site or confirmed by video. After the equipment is inspected and qualified, the payment will be released and the equipment will be delivered.
Delivery Period
10-15 days
Warranty Policy
The machine is guaranteed for one year and provides lifetime service.
