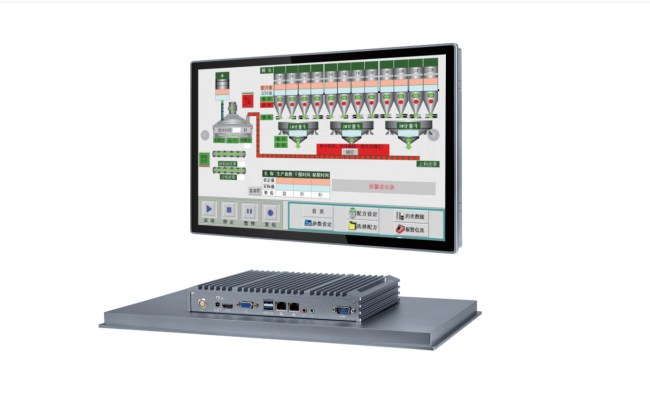

18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
Price:
$214-232/pieces
MOQ:
300
Delivery Time:
10 work days
Brand:
YZY
Product Description
| 18.5 Inch H Type Industrial Panel PC Embedded Touch IP65 Fanless HMI Industrial Touch Screen PC Intelligent Industrial Computer |
| Product Features |
- Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
- Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
- Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
- Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
- Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
- Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
- I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
- Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
- Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
- 24/7 Operation: Designed for continuous use with robust performance and long service life.

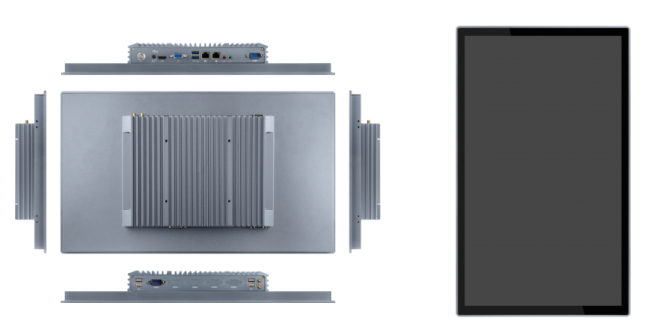

| Product Six Views |

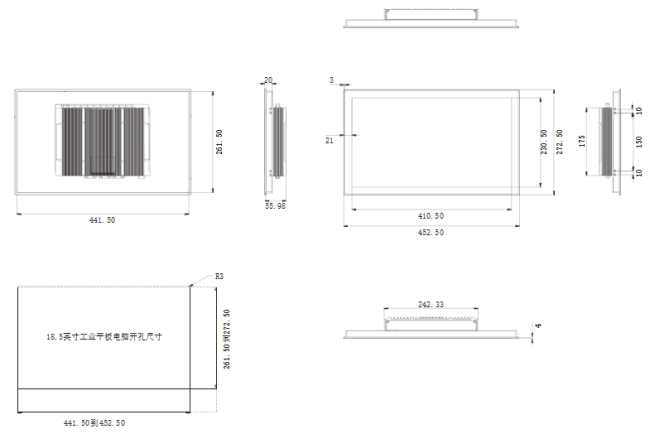

| Product Dimensions |
| I/O Interface Diagram |
| Extensible Interface |
| Product Specifications |
CPU: J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory: 4G/8G/16G/32G/64G
Storage: 64G/128G/256G/512G/1TB/2TB
Touch Type: Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support: Windows 7/8/10, Linux, Android
LCD Display: 18.5" XGA TFT (1920*1080)
Active Area: 410.5mm × 230.5mm
Viewing Angle: 89° (L/R/T/B)
Brightness: 350 cd/m²
I/O Interfaces: 2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions: 452.50mm × 272.50mm × 55.98mm
Power Input: DC 12V (9-30V optional)
Operating Temp: -20°C to 60°C (expandable to -40°C to 80°C)
| Installation Methods |
1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
2. Tighten the long screws and nuts onto the snap fasteners.
3. Four clips are fixed at the threaded hole positions on both sides.
4. Tighten the long screws to secure the equipment in place.
|
Desktop Mounting |
Cantilever Mounting |
| Packing List |
| No. | Item | QTY |
|---|---|---|
| 1 | Industrial Panel PC | 1 unit |
| 2 | Power Adapter | 1 unit |
| 3 | 3-pin 5.08 Power Terminal Plug (optional) | 1 unit |
| 4 | Embedded Snap-In Kit (optional) | 1 set |
| 5 | Wall-Mount Bracket (Optional) | 1 unit |
| 6 | Certificate of Conformity | 1 sheet |
| 7 | Warranty Card | 1 sheet |
| 8 | User Manual | 1 copy |
| Ordering Information |
| No. | Name | Description |
|---|---|---|
| 1 | Ethernet Port | Default single port; optional dual or quad ports |
| 2 | Serial Port | Default 2 × RS232; optional 6 × RS232/RS485 |
| 3 | USB | Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB |
| 4 | GPIO | Optional 4 input / 4 output |
| Safety Warnings |
1. This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
2. Do not place in humid environments to prevent condensation and component damage.
3. Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
4. Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
5. Do not disassemble or repair the device yourself due to high voltage risks.
Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
