11.6 Inch 3-Color Supermarket Electronic Label E-paper Display 960*640 Resolution Low Power Consumption
Price:
70.20~77.22/pc
MOQ:
300
Delivery Time:
14-30days
Brand:
YZY
Product Description
11.6 Inch 3-Color Supermarket Electronic Label E-paper Display 960*640 Resolution Low Power Consumption
Product Features
◊640×960 pixels display
◊High contrast + High reflectance + Pure reflective mode
◊Ultra wide viewing angle
◊Ultra low power consumption + Ultra Low current deep sleep mode
◊Bi-stable display
◊Commercial temperature range
◊Landscape, portrait modes
◊Hard-coat antiglare display surface
◊Serial peripheral interface available
◊I2C signal master interface
The YE116A10 E-PAPER display module offers excellent performance for commercial applications. It features an 11.6-inch screen with a display resolution of 640(H)×960(V) pixels (100 DPI) and an active area of 244.512(H)×163.008(V) mm, delivering clear and fine visuals .With an ultra-wide viewing angle and pure reflective mode, it ensures consistent display effects from any direction, while the hard-coat antiglare surface enhances visual comfort .
It adopts bi-stable display technology, paired with ultra-low power consumption and ultra-low current deep sleep mode (max 5μA in deep sleep), ensuring high energy efficiency .The module supports landscape and portrait modes, providing flexible display options .Its outline dimension is 254.31(H)×176.35(V)×0.9(D) mm (without masking film) and weight is 73.0±0.5 g, enabling easy integration .Equipped with an internal temperature sensor and designed for a commercial temperature range (0 to 30℃), it maintains stable performance in various environments .
| Type | E-Paper | Screen refreshing method | Full Refresh |
|---|---|---|---|
| Resolution | 640*960 | Place Of Origin |
Guangdong,China
|
| Brand Name | YZY | Outline Dimensions |
254.31(H)*176.35(V)*0.9(D) mm
|
| Supplier Type | All (IPS) | Active Area |
244.512(H)*163.008(V) mm
|
| Interface | SPI | Driver IC | SSD1677 |
| MOQ | 5PCS | Operating Temp. |
0~40°
|
|
Connector Type
|
24 pin
|
Storage Temp. |
-25~60°
|
| Colors | Black/White/Red | ||
Product Picture

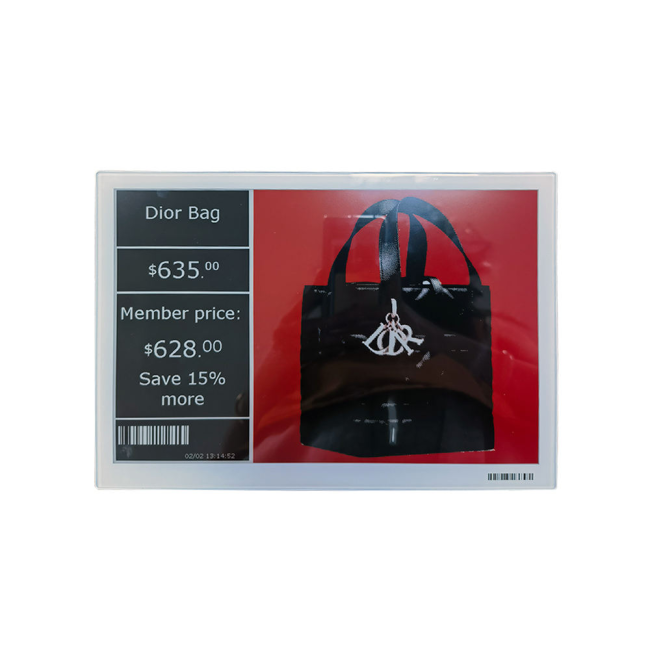

These E - PAPER display modules are stellar at presenting product and promotional info. Just like in the image showcasing a bag, they vividly display details such as the regular price of $635.00, member price of $628.00, and a “Save 15% more” discount, making the product and offers stand out sharply. Their clear display and versatility make them ideal for retail to grab customers' attention. Beyond retail, they have extensive uses: in retail stores, they’re great for promoting fashion, cosmetics, or household items, letting customers easily see product features, prices, and discounts; in logistics and warehousing, they act as smart goods labels for real - time updates of product names, batch numbers, and storage spots to optimize inventory management; in smart offices, they serve as electronic name cards or meeting schedule displays with low power, showing employee info or meeting agendas; in exhibition halls, they work as digital exhibit intro boards to provide detailed info eco - friendly. With top - notch readability, low energy use, and flexible display, E - PAPER modules meet diverse industry needs.
Core Advantages
◊ Paper-like Visual Experience: Comfortable Viewing, Clear Display in All Scenarios
◊ Ultra-low Power Consumption Design: Long-lasting Battery Life with One Charge
◊ Stable and Durable: Adaptable to Multiple Environments, Worry-free Long-term Use
◊ Flexible Adaptation: Multiple Interfaces for Easy Connection, Meeting Scenario Customization Needs

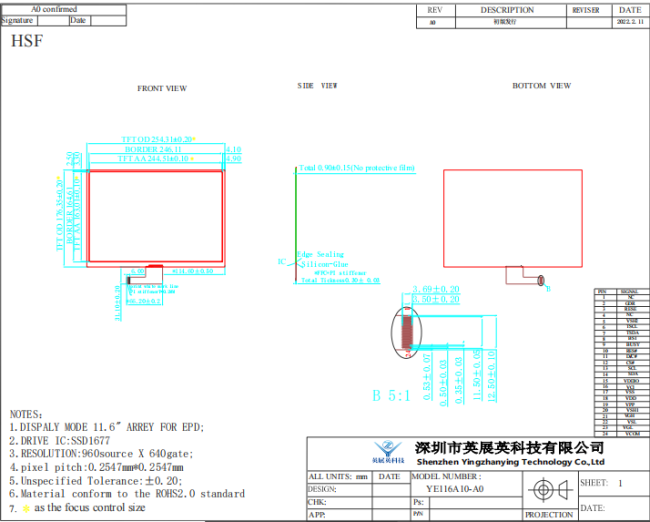

Technical Drawing
| PIN | Symbol | Description | |
| 1 | NC | No connection and do not connect with other NC pins | Keep Open |
| 2 | GDR | N-Channel MOSFET Gate Drive Control | |
| 3 | RESE | Current Sense Input for the Control Loop | |
| 4 | NC | No connection and do not connect with other NC pins | Keep Open |
| 5 | VSH2 | Positive Source driving voltage | |
| 6 | TSCL | I2C Interface to digital temperature sensor Clock pin | Note 6-6 |
| 7 | TSDA | I2C Interface to digital temperature sensor Date pin | Note 6-6 |
| 8 | BS1 | Bus selection pin | Note 6-5 |
| 9 | BUSY | Busy state output pin | Note 6-4 |
| 10 | RES# | Reset | Note 6-3 |
| 11 | D/C# | Data/Command control pin | Note 6-2 |
| 12 | CS# | Chip Select input pin | Note 6-1 |
| 13 | SCL | serial clock pin (SPI) | |
| 14 | SDA | serial data pin (SPI) | |
| 15 | VDDIO | Power for interface logic pins | |
| 16 | VCI | Power Supply pin for the chip | |
| 17 | VSS | Ground | |
| 18 | VDD | Core logic power pin | |
| 19 | VPP | Power Supply for OTP Programming | |
| 20 | VSH1 | Positive Source driving voltage | |
| 21 | VGH | Power Supply pin for Positive Gate driving voltage and VSH | |
| 22 | VSL | Negative Source driving voltage | |
| 23 | VGL | Power Supply pin for Negative Gate driving voltage, VCOM and VSL | |
| 24 | VCOM | VCOM driving voltage |
The YE116A10 offers multiple customization options to meet diverse application needs:
FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.
Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.
Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.
Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
