7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
Price:
$105-119/pieces
MOQ:
100
Delivery Time:
30-45Days
Brand:
YZY
Product Description

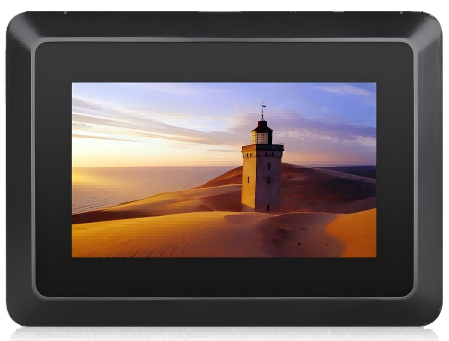

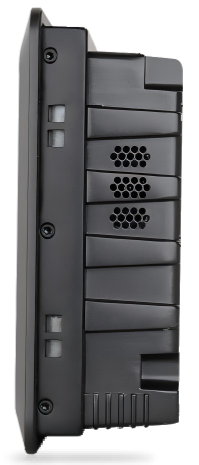

YCXX6-7 7 Inch Industrial Touch Display with Wide Temperature Range Pressure-Resistant Multi-Touch Embedded Monitor
The YCXX6-7 industrial touch display features a full aluminum alloy structure with fanless, fully enclosed design and low power consumption. This compact monitor is specifically engineered for diverse environmental conditions, ensuring long-term stable operation in harsh industrial settings.
 |
 |
 |
Robust Construction for Industrial Applications
The compact design supports multiple installation methods. Built with military-grade aluminum alloy structure and efficient heat dissipation design (compatible with fans), this monitor ensures stable operation in harsh environments while increasing service life, safety, and efficiency with zero noise operation.
Key Features
- RTD2483 Chip for high-performance processing
- Full military-grade aluminum alloy construction for high temperature resistance, corrosion resistance, and pressure resistance
- Fine workmanship and long service life suitable for harsh environments
- Efficient heat dissipation design compatible with fan cooling
- Simplified interior without redundant wiring for uninterrupted operation
- Capacitive touch screen with intuitive operation and high durability
- Compatible with resistive touch technology
- Comprehensive input and output interfaces for connecting various equipment
Technical Specifications
Screen Parameters
| Parameter | Specification |
|---|---|
| Size | 7" |
| Resolution | 1024×600 |
| View Angle | 75/75/70/75 (L/R/U/D) |
| Color | Chroma: 16.7M |
| Brightness | 300 cd/m² |
| Contrast | 500:1 |
| Response Time | 6.5 ms |
| Display Area | 154.214 × 85.92 mm |
| Pixel Pitch | 0.1506×0.1432 (H×V) |
Touch Screen & Connectivity
| Parameter | Specification |
|---|---|
| Touch Type | Capacitive touch screen |
| Resolution | 500DPI |
| Input Method | Handwriting or capacitive pen |
| Surface Hardness | 7H |
| Calibration | Supported |
| HDMI | Support HDMI data output, up to 1080P |
| RJ45 | Touch interface |
| VGA | 1 port |
| DVI | 1 port |
| Earphone Jack | 3.5mm standard interface |
Hardware Configuration
| Component | Specification |
|---|---|
| CPU | RTD2483 |
| System Language | English, Chinese |
| Video Input | PC-RGB: Format up to 1920*1080@60HZ, Color 16bit, 24bit, 32bit |
| Key Functions | AUTO, MENU, POWER, LEFT, RIGHT |
Power Specifications
| Parameter | Specification |
|---|---|
| DC Input | DC 12~24V |
| Power Consumption (Max) | 12W |
| Power Input | AC 100-240V 50/60Hz (CCC, CE certified) |
| Power Output | DC12V / 4A |
Dimensional Information
Overall Dimensions: 225.04 × 160.7 × 59mm (L × W × H)
