YCXX7-8 8Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
Price:
$122-138/pieces
MOQ:
100
Delivery Time:
30-45Days
Brand:
YZY
Product Description

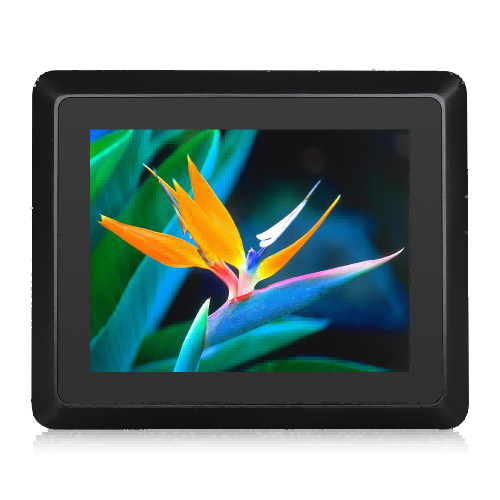

YCXX7-8 8-Inch IP65 Industrial Touch Display
The YCXX7-8 8-inch industrial touch display features a 1024*768 resolution with wide temperature range, pressure-resistant multi-touch capabilities, and IP65 rating. This compact embedded monitor is built with a full aluminum alloy structure featuring fanless, fully enclosed design and low power consumption, specifically engineered for diverse environmental conditions to ensure long-term stable operation in harsh industrial settings.
 |
 |
 |
Robust Construction for Industrial Applications
The compact design supports multiple installation methods. Built with military-grade aluminum alloy structure and efficient heat dissipation design (compatible with fans), this monitor ensures stable operation in harsh environments while increasing service life, safety, and efficiency with zero noise operation.
Key Features
- RTD2483 Chip for high-performance processing
- Full military-grade aluminum alloy construction for high temperature, corrosion, and pressure resistance
- Fine workmanship and long service life suitable for harsh environments
- Efficient heat dissipation design compatible with fan cooling
- Simplified interior without redundant wiring for uninterrupted operation
- Capacitive touch screen with intuitive operation and high durability
- Compatible with resistive touch technology

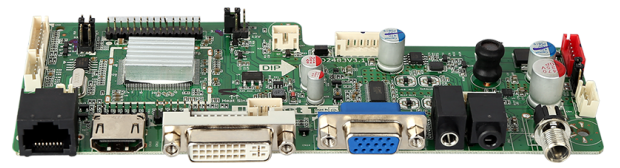

- Comprehensive input and output interfaces for connecting various equipment
Technical Specifications
Panel Parameters
| Parameter | Specification |
|---|---|
| Size | 8" |
| Resolution | 1024*768 |
| View Angle | 85/85/85/85 (L/R/U/D) |
| Color | Chroma: 16.7M |
| Brightness | 300 cd/m² |
| Contrast | 800:1 |
| Response Time | 6.5 ms |
| Display Area | 162.048*121.536 mm |
| Pixel Pitch | 0.15825*0.15825 mm (H*V) |
Screen & I/O Parameters
| Parameter | Specification |
|---|---|
| Touch Type | Capacitive touch screen |
| Resolution | 500DPI |
| Input Method | Handwriting or capacitive pen |
| Surface Hardness | 7H |
| Calibration | Supported |
| HDMI | Support HDMI data output, up to 1080P |
| RJ45 | Touch interface |
| VGA | 1 port |
| DVI | 1 port |
| Earphone Jack | 3.5mm standard interface |
Hardware Configuration
| Component | Specification |
|---|---|
| CPU | RTD2483 |
| System Language | English, Chinese |
| Video Input | PC-RGB: Format up to 1920*1080@60HZ, Color 16bit, 24bit, 32bit |
| Key Functions | AUTO, MENU, POWER, LEFT, RIGHT |
Power Specifications
| Parameter | Specification |
|---|---|
| DC Input | DC 12~24V |
| Power Consumption (Max) | 12W |
| Power Input | AC 100-240V 50/60Hz (CCC, CE certified) |
| Power Output | DC12V / 4A |

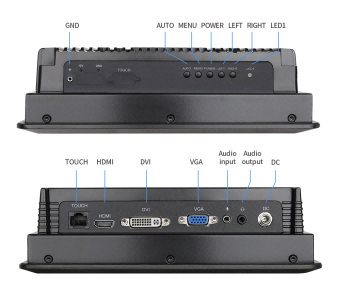

I/O Interface Panel
Dimensional Information
Overall Dimensions: 225.5*185*64.5mm (L*W*H)
