YMG12864FG-X09 128x64 Monochrome COG LCD Screen for Industrial Control Equipment
Price:
$1.46~1.86/pieces
MOQ:
10 pieces
Delivery Time:
14-60 days
Brand:
YZY
Product Description
YMG12864FG-X09 128x64 Monochrome COG LCD Screen for Industrial Control Equipment
This industrial grade YMG12864FG-X09 128x64 dot matrix LCD module adopts STN blue negative transmissive display structure and COG packaging design, driven by ST7567 professional driver IC. It features 3.0V operating voltage, white LED backlight, 6 o'clock viewing direction and wide temperature range, with stable performance, low power consumption, RoHS compliance and standard outline, widely applied in industrial control, measuring instruments, automotive electronics, smart equipment and embedded display systems with high reliability demands.
Product Specifications
| Display Type | STN (Blue), Negative Transmissive Monochrome LCD |
| Resolution | 128 x 64 Dots |
| Module Model | YMG12864FG-X09 |
| Driver IC | ST7567 |
| Drive Mode | 1/64 Duty, 1/9 Bias |
| Operating Voltage | VDD=3.0V, VLCD=9.2V |
| Viewing Direction | 6 O'Clock |
| Backlight | White LED, Vf=2.8-3.2V, If=75mA |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Connection Type | COG, 32PIN Interface |
| Outline Dimension | 77.50*49.50*5.00(mm) |
| Unspecified Tolerance | ±0.2mm |
| Certification | RoHS Compliant |
Product Features
- Standard 128x64 dot matrix, STN blue negative transmissive clear display effect
- COG ultra-thin packaging design, regular outline, easy for embedded installation
- ST7567 dedicated driver chip, strong anti-interference and long service life
- White LED backlight with high brightness, uniform luminescence and stable performance
- Wide temperature adaptation, suitable for harsh industrial and vehicle environments
- 32PIN standard interface, perfect compatibility with mainstream control systems
- RoHS environmentally friendly certified, fully meet global export and market standards
Product Applications
- Industrial control equipment and intelligent operation panels
- Electronic measuring instruments, meters and precision testing equipment
- Automotive electronics and vehicle-mounted auxiliary display modules
- Smart home appliances and portable intelligent electronic devices
- Medical testing instruments and communication terminal equipment
- Embedded system modules and industrial intelligent control terminals

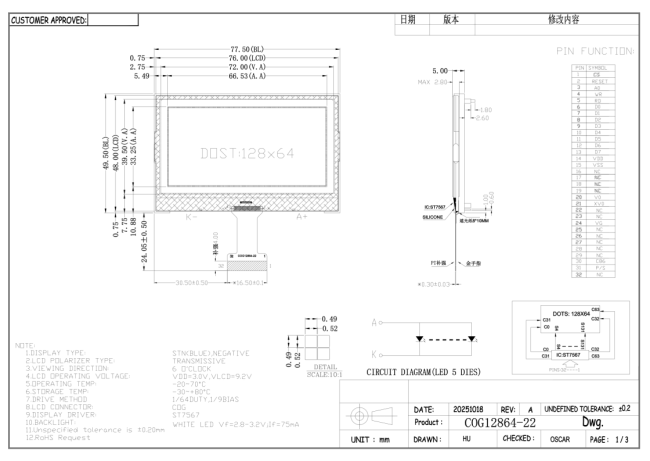

Dimension Drawing
