YNT0280EGS-B1 Factory Direct 2.8 Inch TN Touch Screen SPI TFT LCD Display Module with ST7789 Driver IC Resolution 240x320
Price:
6.2-7.02/pc
MOQ:
500
Delivery Time:
14-30days
Brand:
YZY
Product Description
YNT0280EGS-B1 Factory Direct 2.8 Inch TN Touch Screen SPI TFT LCD Display Module with ST7789 Driver IC Resolution 240x320
High-performance 5.0-inch TFT-LCD touch module with 800×480 resolution RGB interface, delivering exceptional visual clarity and responsive touch functionality for industrial and commercial applications.
Product Overview
The YNT0280EGS-B1 is a 2.8-inch high-performance TFT-LCD touch module developed by Shenzhen Yingzhanying Technology. This comprehensive display solution integrates a TFT-LCD panel, driver IC, FPC, backlight unit, and capacitive touch panel to deliver superior visual performance and reliable operation.

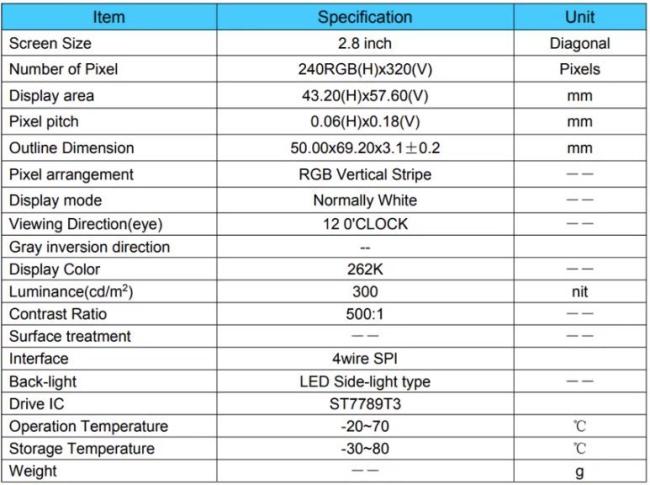

Key Specifications
| Product | 2.8 inch TFT-LCD Touch Module |
| Module Number | YNT0280EGS-B1 |
| Resolution | 240*320 dots (RGB) |
| Display Mode | Normally Black, Transmissive |
| Outline Dimensions | 50*69.2*3.1 |
| Viewing Direction | 12 O'Clock |
| Active Area | 43.2*57.6 |
| Interface | 4Lane SPI |
| Touch Function | Capacitive Touch |
| Backlight brightness | 300 |
| Storage Temperature | -30 ~ +80 ℃ |
| Contrast Ratio | 500:1 (Typical) |
| Operating Temperature | -20 ~ +70 ℃ |
Technical Features

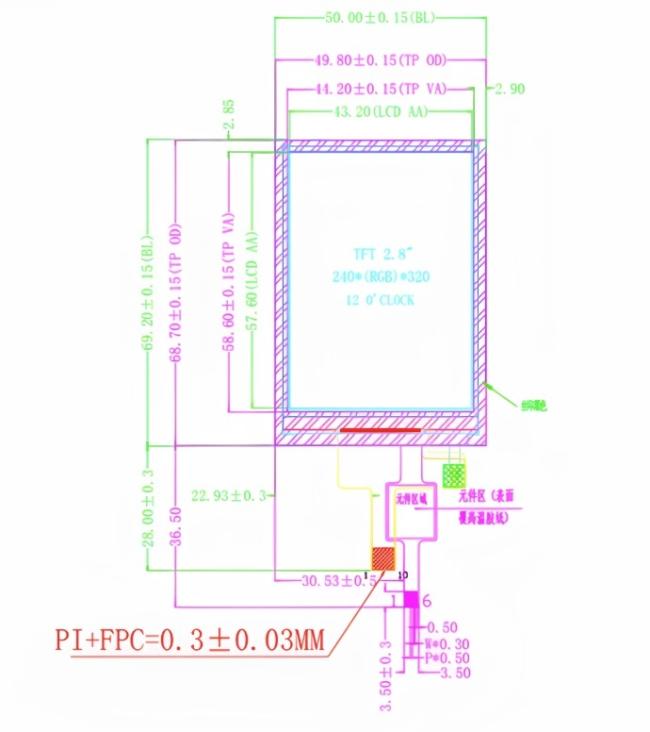

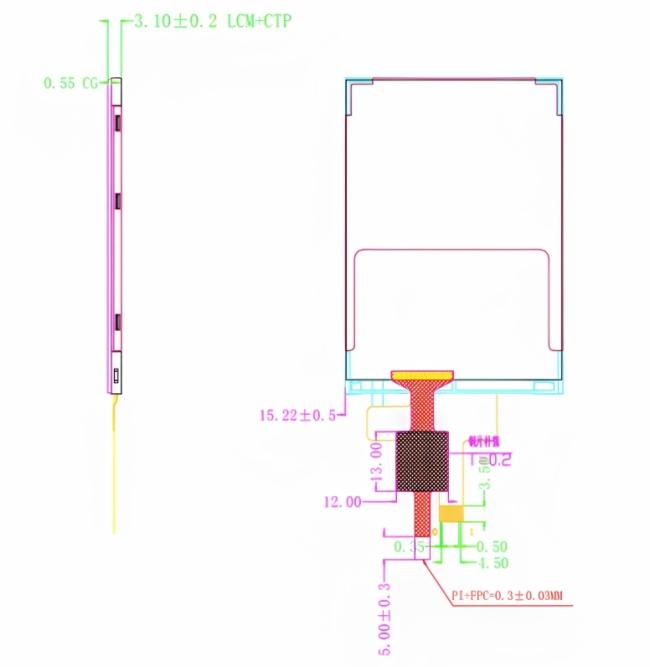

Technical Drawing
Electrical Specifications
The YNT0280EGS-B1 LCD touch module ensures reliable electrical and touch performance with the following specifications:
Environmental Specifications
- Operating temperature: -20℃ ~ +70℃
- Storage temperature: -30℃ ~ +80℃
- Humidity: Ta≤40℃: max 85%RH; Ta≥40℃: absolute humidity must be lower than 85%RH at 40℃

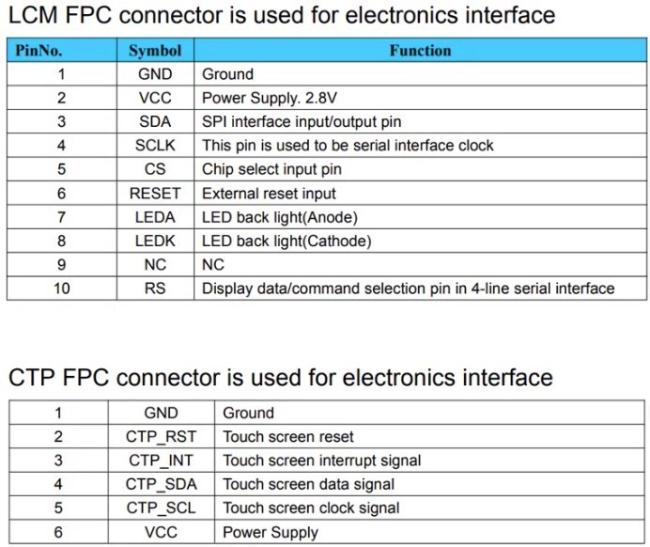

PIN Definition
Customization Options
The YNT0280EGS-B1 offers comprehensive customization to meet specific application requirements:
FPC Design
Flexible adjustment of FPC layout, length, and connector type to fit system installation requirements.
Cover Glass
Customizable size, thickness (0.5mm~1.1mm), surface printing (logo, pattern), and hardness (3H~9H) for different usage scenarios.
Brightness Tuning
Adjustable brightness from 500~1500 Cd/m² to adapt to indoor, outdoor, or low-power applications.
Touch Optimization
Customizable touch sensitivity, driver IC matching, and optional multi-touch functionality for specific application needs.
Interface Adaptation
Support for interface conversion (RGB to LVDS/MIPI) to match different mainboard designs and system architectures.
