YBR040JGP-Q1 3.95-inch Arduino Display LCD Module with 480x320 Resolution and 8-bit Parallel Bus for UNO/Mega2560
Price:
$12.8-14.5/pieces(MAR3954）
MOQ:
500
Delivery Time:
30-45days
Brand:
YZY
Product Description
YBR040JGP-Q1 3.95-inch Arduino Display LCD Module with 480*320 Resolution, 8-bit Parallel Bus, and 65K Color Display for UNO/Mega2560
The product is a 3.95-inch TFT LCD module with 480x320 resolution, 16BIT RGB 65K color display, internal drive IC ST7796S, 8-bit parallel port communication. The
module includes an LCD display, Resistive touch screen, SD card slot and PCB backplane and other components, which can be directly plugged into the Arduino UNO
and MEGA2560 development boards, can also be used on C51 and STM32 platforms and also supports SD card expansion function.
Product Features
-
3.95-inch color screen, support 16BIT RGB 65K color display, display rich colors 480x320 resolution for clear display 8-bit parallel bus transmission for fast transfer speed On-board 5V/3.3V level-shifting IC compatible with 5V/3.3V operating voltage Support Arduino UNO and MAGE2560 for direct plug-in use Support for touch function Support SD card function expansion Provide Arduino libraries and rich sample programs Available on C51 and STM32 platforms with a rich sample program Military-grade process standards, long-term stable work Provide underlying driver technical support

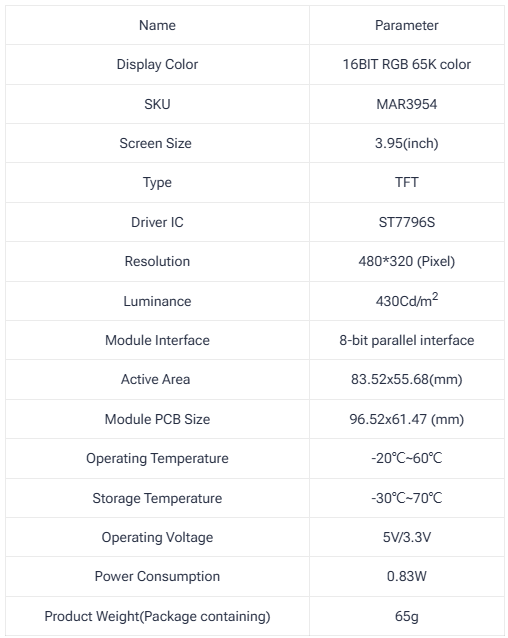

Technical Specifications

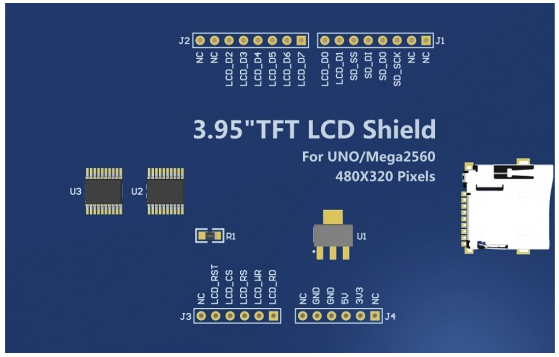

Interface Description

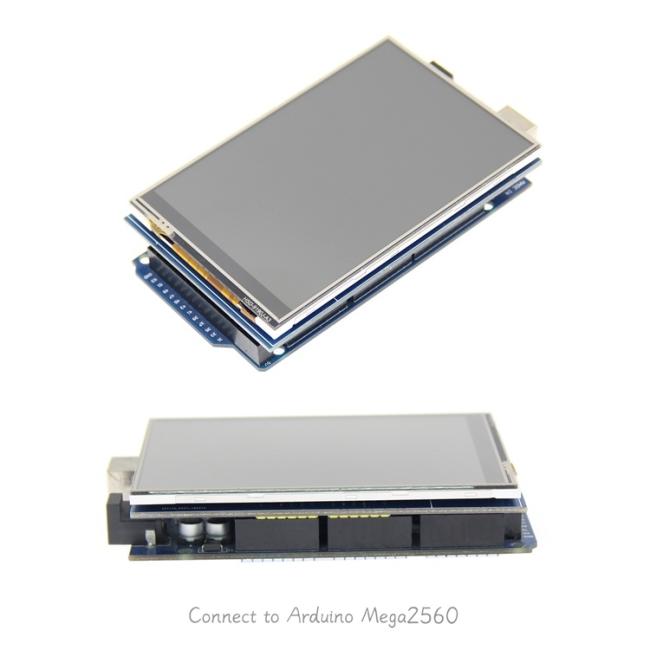

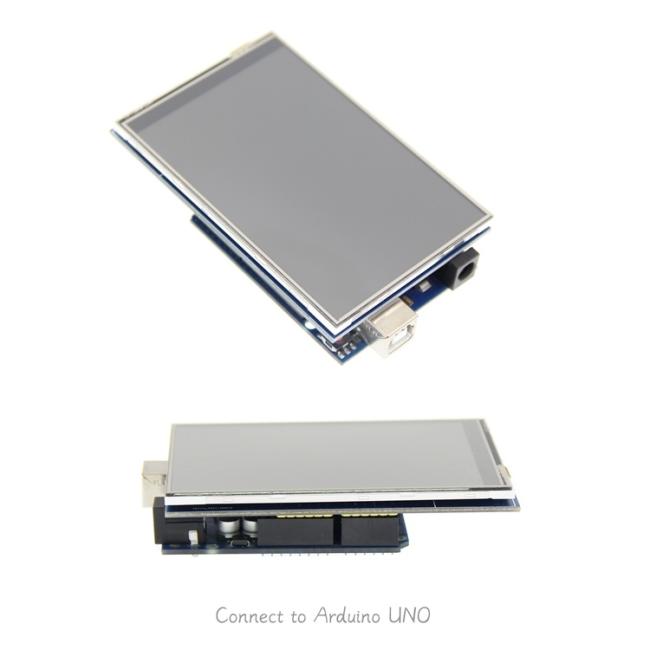

Connection to Arduino
