Ultra Small 0.42 Inch LCD Display 96RGB×54 Industrial -20~70℃ SPI Serial Screen Module
0.42 inch ultra-small TFT LCD module with 96(RGB)×54 resolution, 4-wire SPI interface, 262K display colors, full all-direction viewing angle, wide temperature range, ideal for smart wearables, mini instruments, IoT micro terminals, handheld devices and compact embedded display applications. We support customized service to meet diverse structural and interface demands.
This 0.42 inch tiny TFT LCD display module adopts full viewing angle design, ultra-compact ultra-thin structure, featuring 96x54 pixel resolution and 262K rich color reproduction. Built-in ST7735P3 driver IC and 4SPI interface, it supports 85° left/right/top/bottom full viewing angle, up to 1200 high contrast ratio, equipped with 1LED backlight. Working temperature ranges from -20℃ to +70℃, storage temperature -30℃~+80℃, with stable optical performance and reliable long-term operation for miniature smart electronics and industrial micro control equipment.
| Display Type | 0.42 Inch TFT-LCD Module LCM |
|---|---|
| Model Number | YVO0420AAS-J1 |
| Part Number | NT042BH-H16-01 |
| Resolution | 96(RGB) × 54 Pixels |
| Display Mode | Normally Black |
| Display Colors | 262K Colors |
| Viewing Angle | All Direction 85° Full View |
| Interface | 4-wire SPI |
| Driver IC | ST7735P3 |
| Contrast Ratio | 1200:1 (Typical) |
| Response Time | 30~40ms |
| NTSC Color Gamut | 65% |
| Backlight Type | 1 LED Light |
| Backlight Voltage | 3.2V (Typical) |
| Backlight Current | 15mA (Typical) |

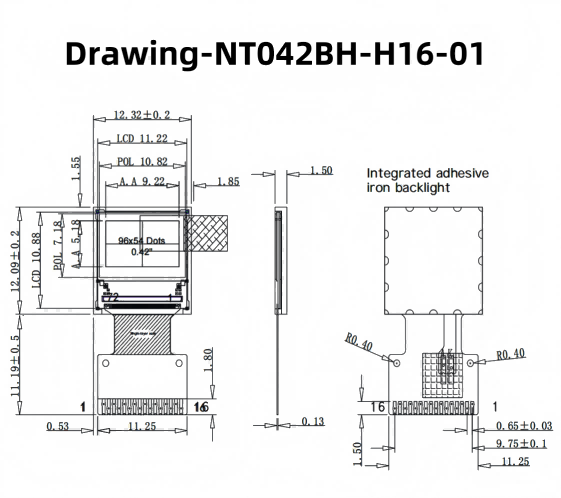

| Module Size | 12.32(W) × 12.09(H) × 1.5(T) mm |
| Active Area | 9.216(W) × 5.184(H) mm |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Touch Panel | Without Touch |
| Compliance | RoHS Compliant |
- 0.42 inch ultra-small TFT LCD with 96×54 resolution and 262K full color display
- All-direction 85° full viewing angle, clear display from all directions
- High contrast ratio 1200:1 for sharp image and layered visual effect
- 4-wire SPI interface, easy compatibility with mainstream MCU and stable communication
- Built-in ST7735P3 driver IC, mature solution and long-term stable operation
- Ultra-thin 1.5mm thickness mini size, perfect for space limited tiny devices
- Wide temperature design -20℃~70℃ for industrial and consumer electronic scenarios
- 1 piece LED backlight, low power consumption 15mA typical current
- NTSC 65% color gamut, natural and realistic color performance
- RoHS compliant, environmentally friendly and safe for consumer products
- Pass high & low temperature, vibration, ESD and thermal shock reliability tests
- Support FPC length, pin definition and structural outline customization
- Smart watch, smart bracelet and mini wearable electronic devices
- Micro portable medical equipment and health monitoring tiny instruments
- IoT micro smart terminals and miniature embedded display systems
- Small handheld measuring meters and micro industrial control displays
- Smart home micro control panel and miniature human-machine interface
- Low power battery powered portable tiny electronic products
- Micro vehicle-mounted auxiliary display and compact car electronics
- Smart miniature instruments, earphones and small household appliance display
We are a professional display solution provider focusing on R&D, production and sales of small size TFT LCD modules, all viewing angle display modules, SPI interface LCD screens and optoelectronic components. With rich experience in ultra-small industrial display applications, we supply stable, high compatibility 0.42inch miniature LCD products for global customers in wearable electronics, micro medical devices, smart home appliances and consumer electronics industry.
Our main products cover 0.42inch~7inch TFT LCD modules, ultra-small SPI display modules, without touch LCD modules and customized LCM assemblies. All products pass strict high and low temperature, high temperature & humidity, ESD, vibration and aging reliability tests to ensure stable performance in complex working environments. We support OEM/ODM customization for FPC length, pin definition and mechanical structure requirements.
Each 0.42 inch tiny TFT LCD module undergoes full inspection before shipment, including high/low temperature test, high temperature and high humidity test, ESD test, vibration test and thermal shock test to ensure long-term stable performance.
Yes, we provide sample support for customer evaluation, testing and prototype development of 0.42 inch all viewing angle TFT LCD module.
Standard orders are usually shipped within 7 working days after payment confirmation. Customized FPC or structure products require additional lead time.
We accept small MOQ for sample orders and provide flexible bulk order support for ultra small size TFT display modules.
We provide free replacement or after-sales support for confirmed quality problems within warranty period.
Yes, we support customization of FPC length, pin definition, outline structure and 4-wire SPI interface matching for 0.42inch LCD module.
We accept T/T, Western Union and PayPal for sample and small orders.
We support DHL, FedEx, UPS and other international express services for fast and safe delivery.
